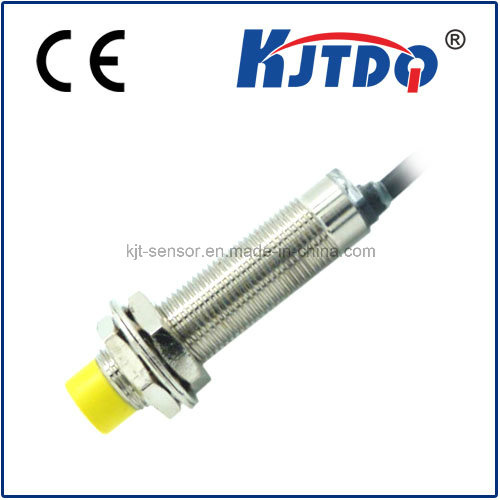

High Temperature Inductive Proximity Sensor Switch with Ce Quality

High Temperature Inductive Proximity Sensor Switch with Ce Quality
Price: US $ 33.6-34.3/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KJT-GW18-ZPK
Material: Nickel-Copper Alloy
Voltage Type: DC Voltage
Protection Degree: IP 67
Standard: Standard
Certification: CE
Type: Inductive Proximity Switch
Principle: Inductive
Wires: NPN/PNP 3 Wire, Two Wire
Application: Position Sensor

Product Description

KJT-J18GW Series Proximity Sensor/ inductive proximity switch

Detailed Product Description


Features:

1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it

  MountingFlush  / Non-Flush
  SN5mm / 8mm
  Power supply10-36V DC
  Housing sizeM18*60    M18*65
  Thread sizeM18*1*40
  OutputNPN/PNP     NO/NC
  Temperature drift≤±10%
  Hysteresis1-20%
  Repeat accuracy≤5%
  Load current≤200mA
  Residual voltage≤2.5V
  Consumption current≤10mA
  Protection circuitsurge, overload, short-circuit,   reverse polarity
  IndicatorYellow LED
  Ambient temp.-25 ~ 150ºC
  Ambient RH35-95%
  Frequency500Hz
  Protection degreeIP67
  Housing materialNickel-copper Alloy
  ConnectionPVC Cable 2m

Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
