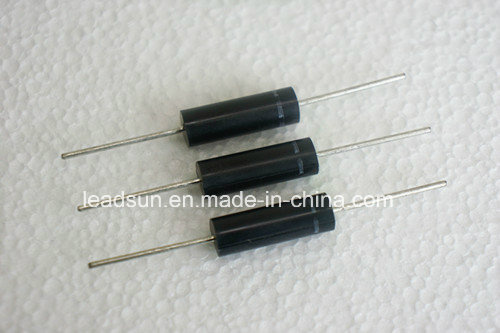

High Voltage Diode CL08-08T 8KV

Name: High Voltage Diode CL08-08T 8KV
Brand: all-electronics-online.com
SKU: 698071582
Availability: InStock
Rating: 4.3 (119 reviews)

Price:	US $ 1.3333-2.5/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CL08-08T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Trr:	100ns
Tj:	-40oc~+125oc
Features:	Fast Recovery
Used:	Television and Fbt Displaya
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	SMD
Application:	Rectification
Model:	Cl08-08T
Brand:	Leadsun

Product Description

CL08-08T high voltage diodes adopt the designing of high reliable multiple mesa structure and
silicon tube, molded in small volume and compact packaging surface by epoxy resin.
Product Description
Features:
Fast recovery
Low forward on pressure, low leakage current
Protection of avalanche breakdown
Antiimpacting of discharging of CRT high voltage surge current
Axial lead diode, could weld on tube pin
Epoxy resin molded and can resist corrosion on its surface
Application:
Television and FBT displayA
Cathode ion generator, laser power supply
neon lamp power supply, voltage multiplier assembly
DC high voltage generator assembly

Packing & Shipping
Packing: 200 pcs in one bag, 25 bags in one carton

Payment & Shipping Terms
1.We can ship the products all the world.
2.DHL, FedEx, TNT, UPS, EMS, China Post, Hongkong Post are all available.
3.The item will be sent out with 7days after receiving the payment.
4.We accept L/C, T/T, Western Union payment.
5.Please make sure your delivery address and contact telephone number are correct when you bid the item.
6.You can track the situation of your product on website after they are shipped out.
Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
Contact Us
ADD:No.757 Laser Industrial Park,High-tech center, Anshan, Liaoning, .China
TEL:+86-412-2660889 2666636 5237711
FAX:+86-412-2663889 5237722
ANSHAN LEADSUN ELECTRONICS CO., LTD.

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
