High Voltage Disconnector/Isolation/Load Break Switch Gw9-15kv
| Price: |
US $ 19-25/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

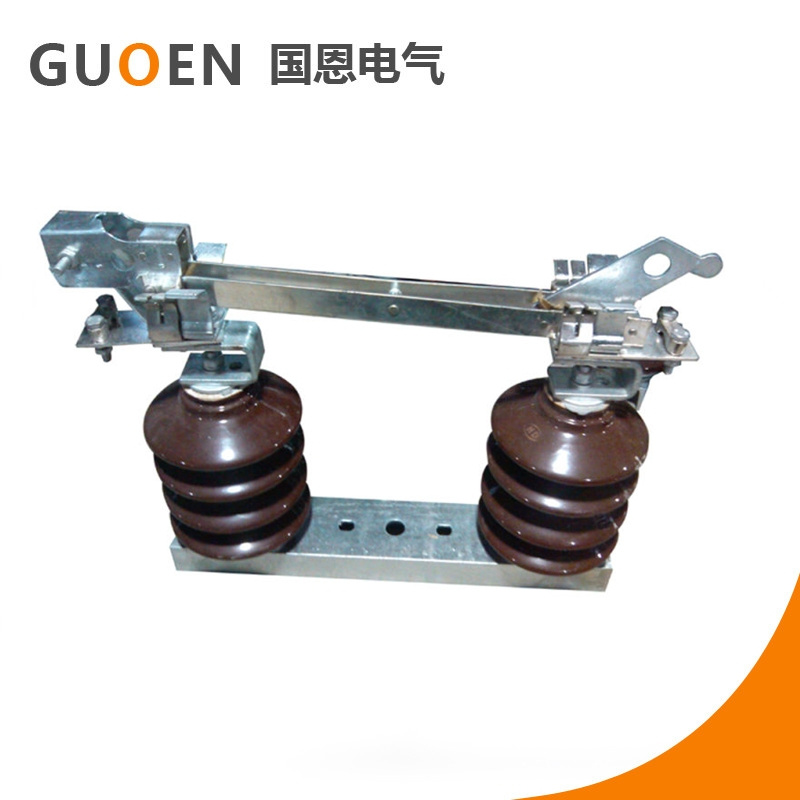

Product Picture:
Model No: GW9-15Type: GW9-15 Outdoor High Voltage Disconnector/ Isolator SwitchDisconnector switch is high voltage switch equipment of single phase AC50Hz. The product is suitable for power system with rated voltage 12kV to break power supply under circumstances of with voltage and nomload. The isolator is adopts isolated hook rod to operate.Specification:Rated voltage: 15KV
Rated current: 200/400/630/1250
Impulse Withstand voltage:
1). To earth: 105KV
2). Across the isolating distance: 120KV
Power-frequeny Wihstand voltage:
1). To earth: 45KV
2). Across the isolating distance: 50KVMore Product:
Conditions of use:1)Ambient temperature: not more than + 40ºC, no less than to -40ºC ;
2)Altitude: not more than 3000 m;
3)Rated frequency: 50 hz or 60 hz;
4)Applied for a long time: from the snow on the arrester voltage no higher than continuous operating voltage;
5)Maximum wind speed: 35 m/s.Packaging & Shipping:Packing: Wooden case
Shipping:
1. DHL, EMS, TNT, Fedex, UPS and others international express for samples.
2. By air or by sea. Our Services: Payment term:
1.Payment: 1) T/T. 2) L/C AT SIGHT
2.Port of loading: Ningbo ,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities

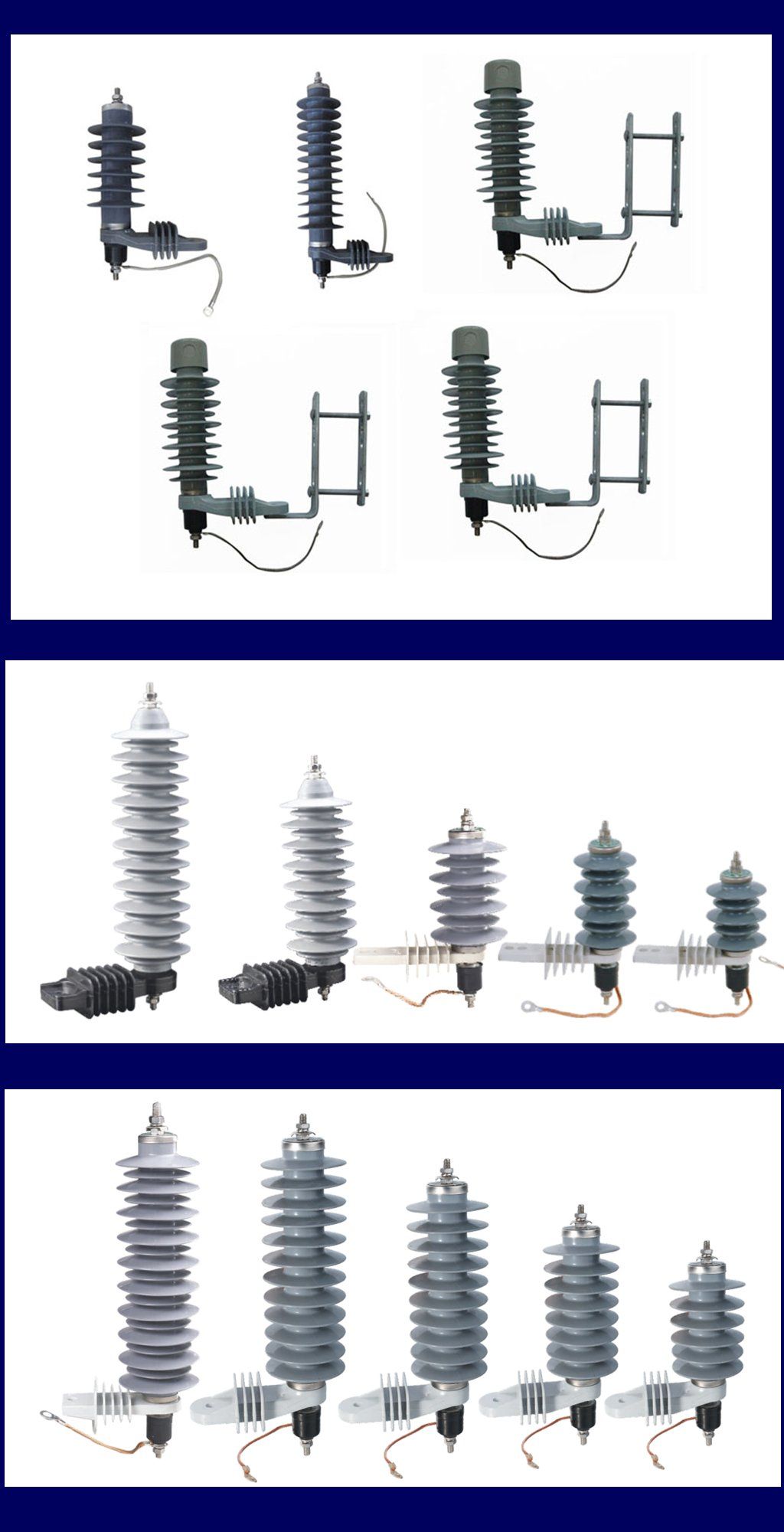

4.Delivery time: 5-30 days according to order quantities.Product Description: Metal oxide surge arrester (earth-sized) is one of the world's most advanced overvoltage limiter, its core
components, metal oxide resistors (MOV), adopt Japan authorized technology manufacturing. It has good
responsiveness, steep front surge, excellent volt-amper characteristics and flow capacity, great in the fastigium
wave, operating under the waves and waves are excellent protection ability, working performance is hardly
affected by waveform. This product has passed the national insulator arrester quality supervision and inspection

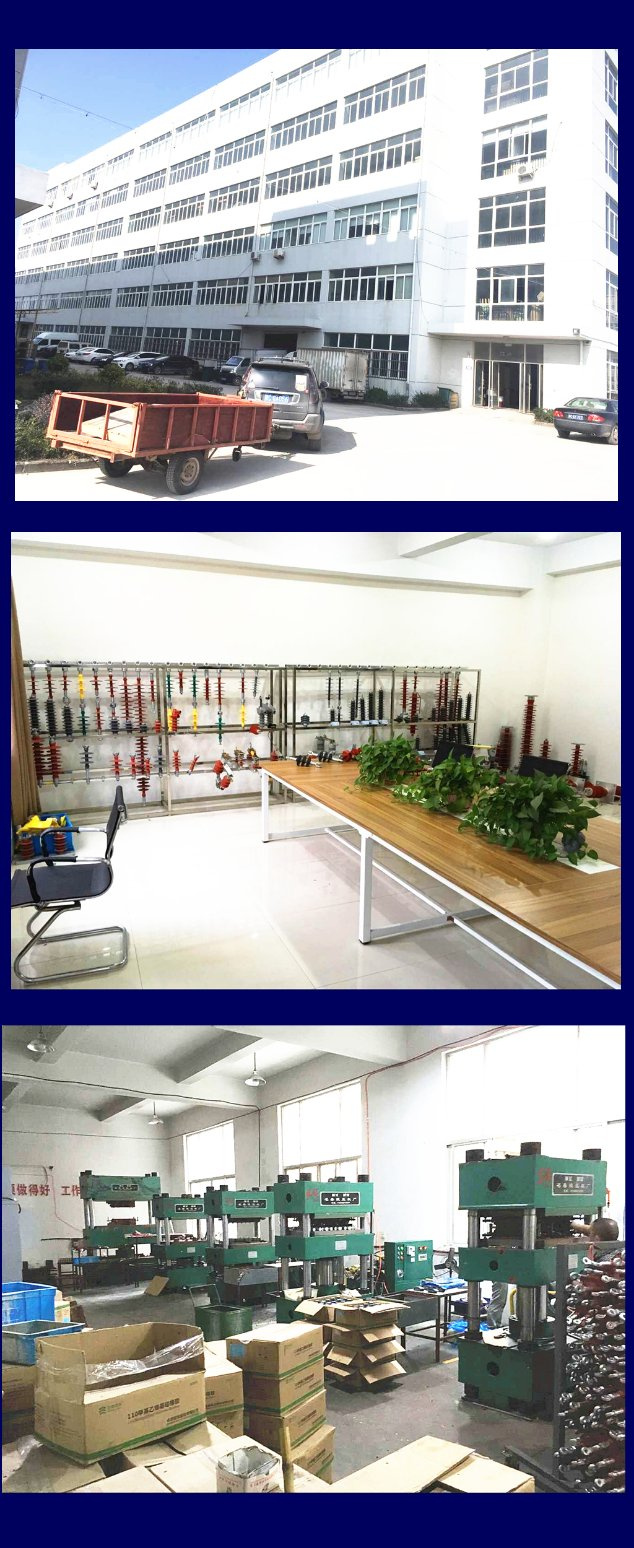

center type testing, all parameters are IEC60099-4 execute strictly in accordance with international standards.Company show:
Certificate of inspection:
| Prod Model: |
Switch GW9-15KV |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Speed: |
Normal Type Circuit Breaker |
| Arc-Extinguishing Medium: |
Air |
| Function: |
Overcurrent Protection |
| Voltage: |
12kv Series |
| Type: |
High-voltage |
| Structure: |
Single-column Disconnector |
| Installation: |
Outdoor High-voltage |
| Grounding: |
Single Ground |
| Series: |
Single-Stage |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Single Throw-in |
| Certification: |
SGS |
| Operation: |
Manual, Electric Type |
| Common Model: |
Gw9-15 |
| Brand: |
Guoen |
