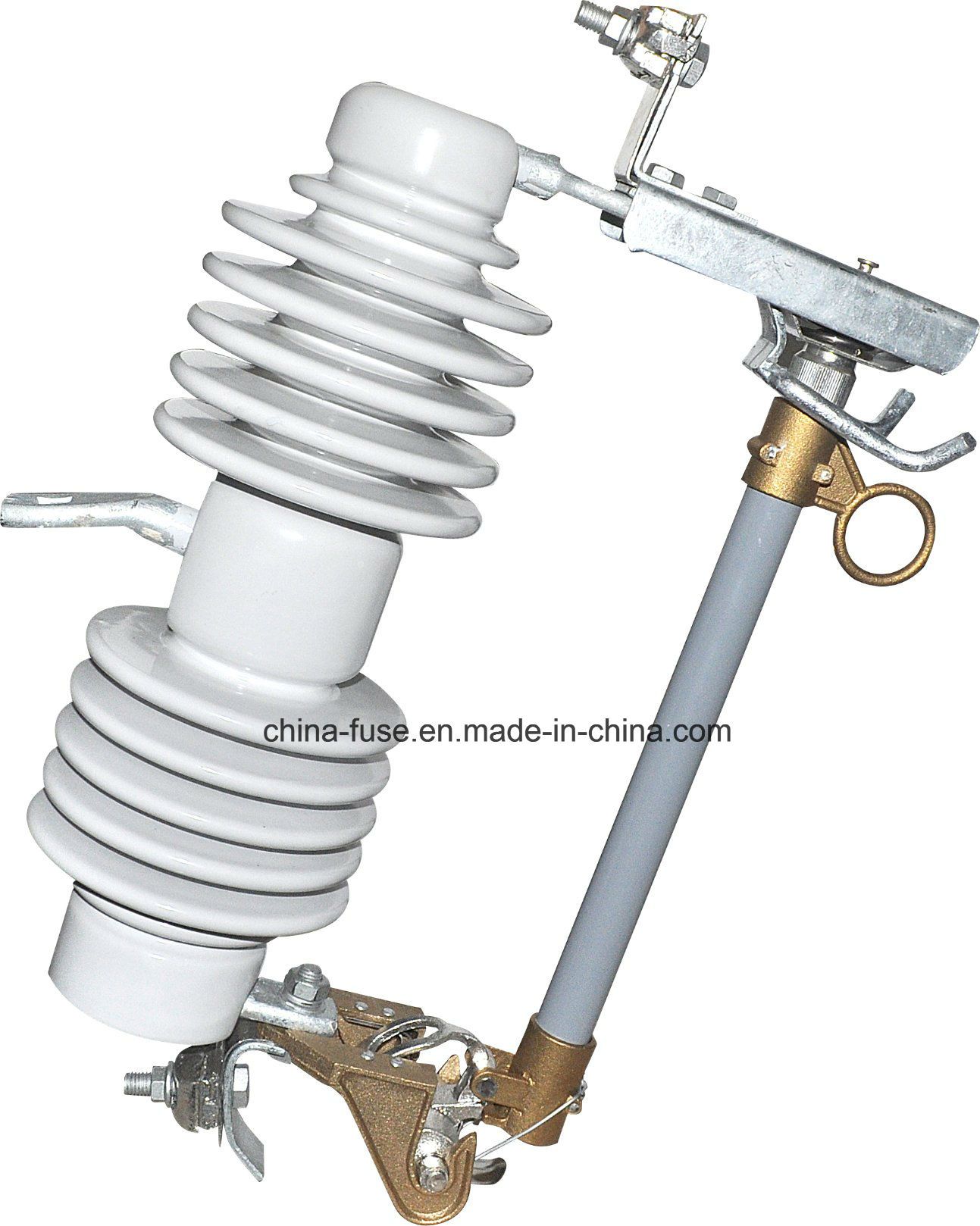

High Voltage Porcelain Fuse Cutout, Drop out Fuse 24kv 100A
| Price: |
US $ 27/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Condition of Use:1. The ambient air temperatures within the range of -30 degreeto +40 degree;2. The altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )3. Frequency of the A. C. Power supply not less than 48Hz and not exceeding 52Hz;4. Earthquake intensity not exceeding 7 degrees;5. Maximum wind speed not exceeding 35m/s.Technical Standard:The technical performance of the products is in confirmed to IEC291, 282.| Type | Rated
voltage(KV) | Rated
current(A) | Breaking
current(KA) | Impulse
voltage(KV) | Power-frequency withstand voltage(KV) | Leakage distance(MM) | Weight(kg) |
| RTF9 | 24-27 | 100. | 8 | 150 | 65 | 520 | 12 |
| RTF9 | 24-27 | 200 | 10 | 150 | 65 | 520 | 12 |
| | | | | | | | |
| Prod Model: |
RTF9-24/100A |
| HS Code: |
85351000 |
| Fuse Base Material: |
Porcelain |
| Fuse Tube Material: |
Fiber Glass |
| Drop Out Fuse Attachment: |
NEMA Bracket |
| Using Range: |
Transmission Line |
| Rated Voltage: |
11kv-38kv |
| Rated Votage: |
100A -600A |
| Breaking Capacity: |
High |
| Type: |
Current Fuse |
| Usaga: |
High Voltage |
| Fusing Speed: |
K, T |
| Fusing Device: |
Fuse Link |
| Standard: |
IEC IEEE |
RIGHT Electric Co., Ltd. An individual ownership enterprise, was founded in 1991, which is located in Yueqing Bay. The company covers a land area of 180, 000 square meters. We have 350 staff members at present, among which there are 6 high techinical engineers, 15 research and design engineers, 10 secondary techinical engineers, 12 research and design engineers, 10 secondary technical persons. We have 58, 000, 000 assets. We are in all around advanced technology enterprise and we have succeeded in turning produce, develop and study together. We are specialized in manufacturing all kinds of high voltage products. Our company has been elected to Two-Net reconstructing enterprise by Nation Economy & Trade Committee.
RIGHT Company has all round senior professional technicians. We have continuously imported various internationally advanced production equipments and complete test equipment. With a powerful technical capability, elaborate manufacturing, facilities, and proper order of designing, manufacturing, testing, our products have continuously passed the examination of the national power industrial department. The leading products have been supplied to the large enterprises such as the bureau of power supply, the electric power company, the power station, the mine etc., and have gained popularity all over the country, and have been exported to countries and regions such as South Korea, New Zealand, Argentina, Brazil, Cuba, South Africa, Indonesia, Iran, Sri Lanka, Southeast Asia, and etc.
Our products are metal oxide surge arrester, composite insulator, cutout fuse, disconnecting switch and power transformer which are famous on domestic and abroad. For gradually connecting with the international marketing, the company successfully passed National import and export goods inspection controlling company quality attestation center ISO9001: 2008 International Quality System Certificate. Metal oxide surge arrester 3-66KV full series products have got KEMA certificate, we are the first company got KEMA certificate in China.
RIGHT have a strong engineering technology team who are parts of the most excellent people in the Industry of China. The levels of develop and produce lie prime on our line. And our products are most popular among the customers and win their approval intensively. In order to keep pace with the market further, we develop the new products constantly, we always do with the high quality products at low prices and warm service. Welcome the customers both domestic and abroad contact us for business negotiation. We would appreciate manufacturing with your samples for common development.
