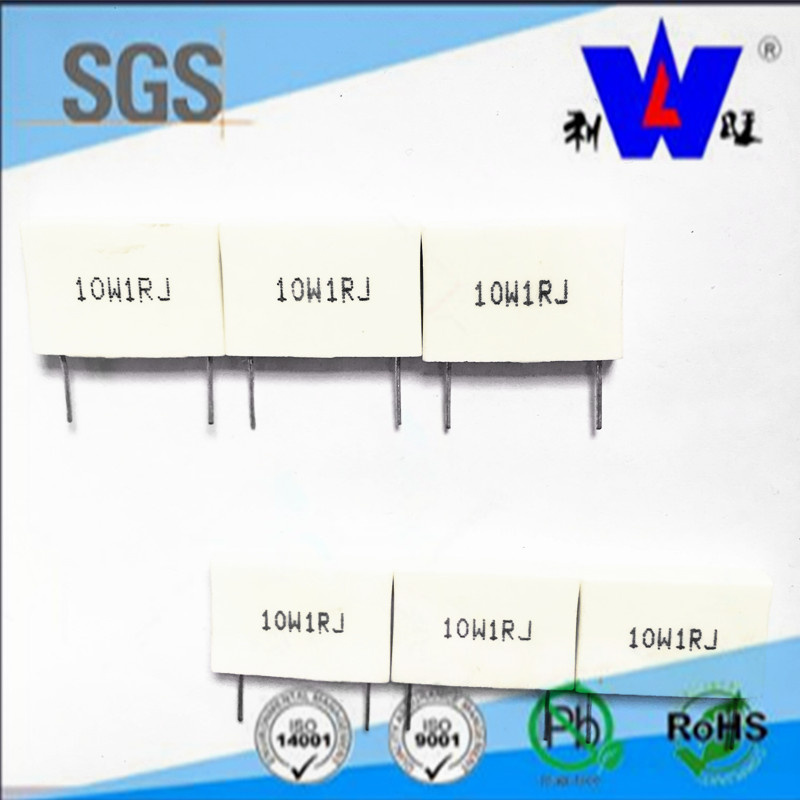

High Voltage Rgc DIP White Cement Resistor

Name: High Voltage Rgc DIP White Cement Resistor
Brand: all-electronics-online.com
SKU: 825808285
Availability: InStock
Rating: 4.5 (96 reviews)

Price:	US $ 0.02-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

1.Rx27 Ceramic Resistors have many kinds of types.
2.Performances are stable
3.ROHS certification

Production name	Cement resistor
Power rating	1W-100W
Resistance value	0.01Ω-100KΩ
Resistance tolerance	±0.1%,±0.5%,±1%,±5%,±10%
Features	1. Small size,resistant to vibration,humidity and heat.good dissipation,low noise and no annual shift in resistance value,low price 2.For high resistance value,wires are replaced by metal oxide films. 3.Complete insulation suitable for printed circuit boards. 4.Different Types.

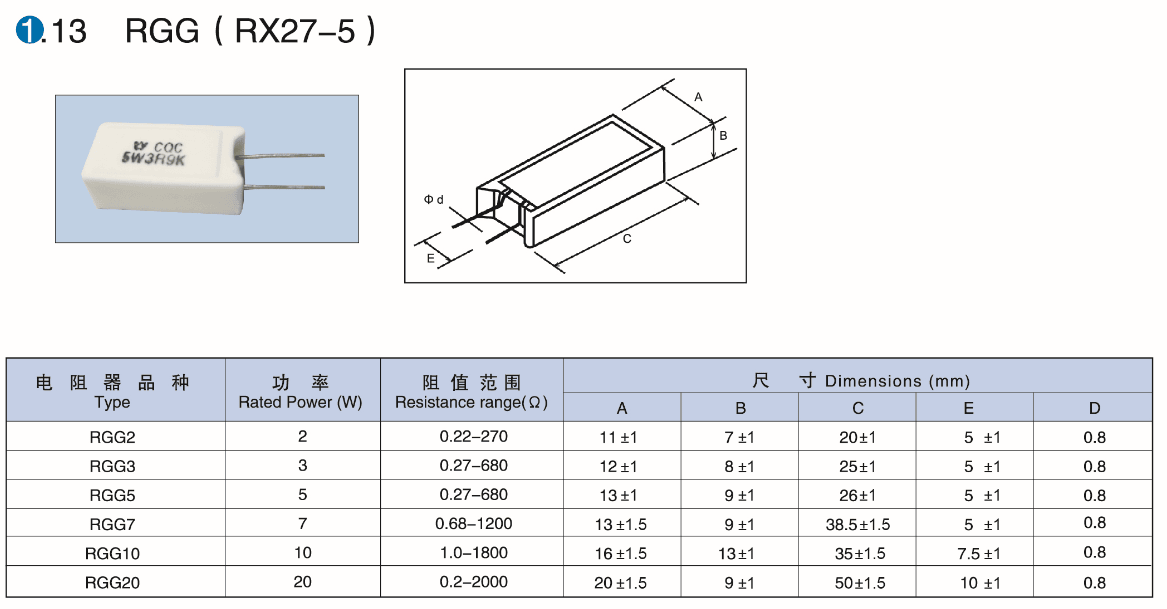

Common specification	RX27 type: 1W,3W,5W,7W,10W,15W,20W,25W,30W,40W,50W,80W,100W.RX27type: 5W,7W,10W,15W,20W,25W,30W,40W,50W,80W,100W. RX27: 5W,7W,10W,15W,20W,25W,30W,40W,50W,80W,100W. RX27 type: 5W,7W,1 type: 3W,5W,7W,10W,20W. RX27 type: 10W51KΩ,20W33 KΩ ,ect. RX27 type: 60W20Ω,600W100Ω,80W20Ω,80W50Ω,ect.
Performance	Test item	Test condition	performance
	Temperature coefficient	-55°C-155°C	±350PPM/°C Max
	Short-term overload	1000% rated power 5s	ΔR≤±(2%+0.1Ω)
	Rated load	Rated wattage for 30 min	ΔR≤±(1%+0.1Ω)
	Insulation resistance	DC 500V 60s	1000MΩ Min
	Dielectric withstanding voltage	DC 1000V 60s	No change
	Moisture-proof Load life	40°C,90%-95% power rating 1.5H ON, 0.5OFF cycle 1000H	ΔR≤±(5%R0+0.1Ω)
	Nonflammability	500%,1000%,1600% power rating 5min	No visable flame
Cooperation partner	Osram etc
NOTE	1. For customer specifications,please contact us to discuss the details. 2. Different power rating owning multi weight ,dimension and packing . 3. More details, please contact us.

Prod Model:	RGC
Environmental Certification:	ISO14001
Quality Certification:	ISO9001: 2008
Safety Certification:	CQC 03003095~3097
Other Certification:	RoHS
Resistance:	Fixed Resistor
Function For Resistance:	Shunt Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Surface Mount
Type:	Photoresistor
Brand:	Liwang

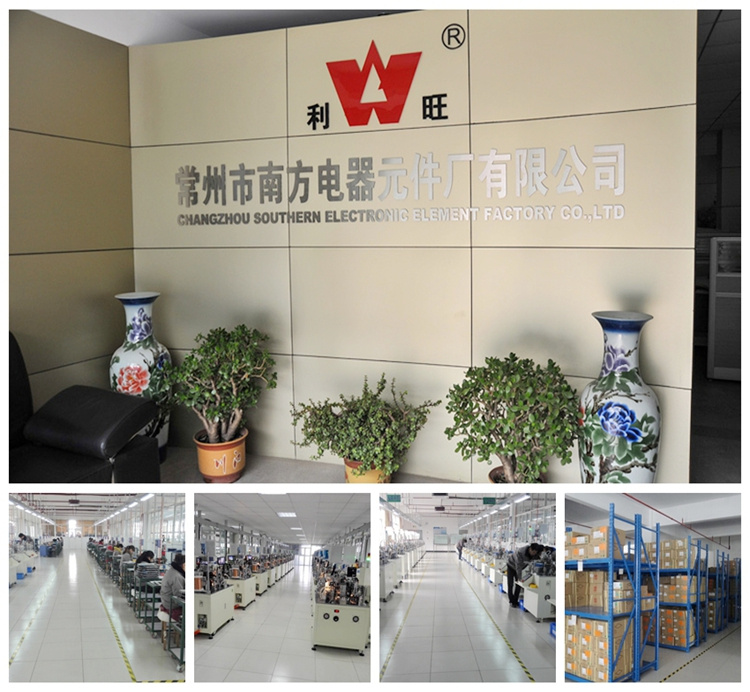

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
