High Voltage Silicone Rubber Tape Insulation Tape

Name: High Voltage Silicone Rubber Tape Insulation Tape
Brand: all-electronics-online.com
SKU: 830752805
Availability: InStock
Rating: 4.5 (95 reviews)

Price:	US $ 1.46/Roll
Min Order:	200/Roll
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KE30S
Elongation:	612%
Tensile Strength:	1.2MPa
Bond Strength:	2.4
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Material:	Rubber
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV

Product Description

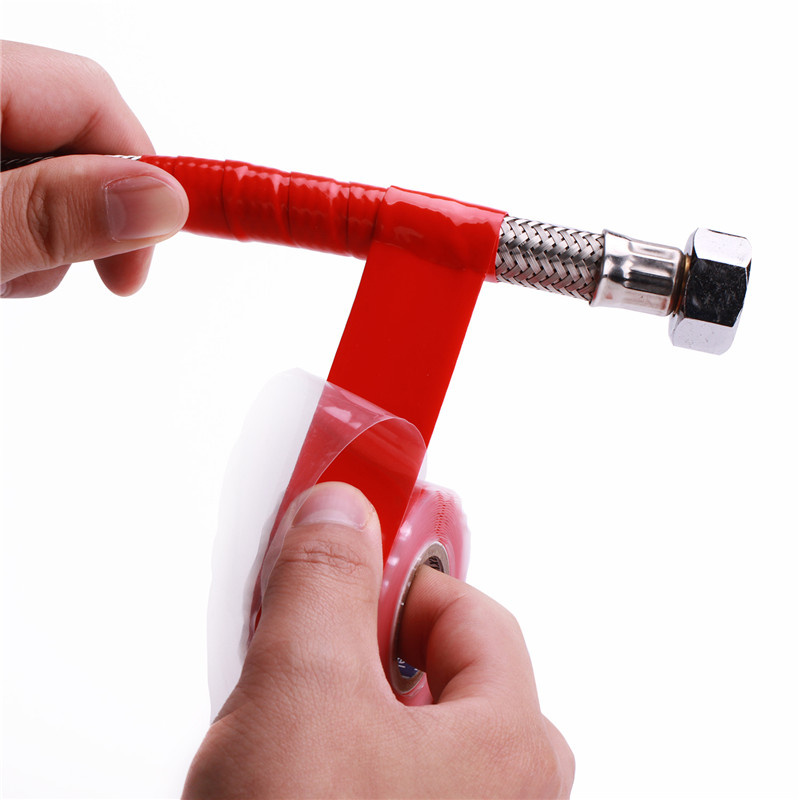

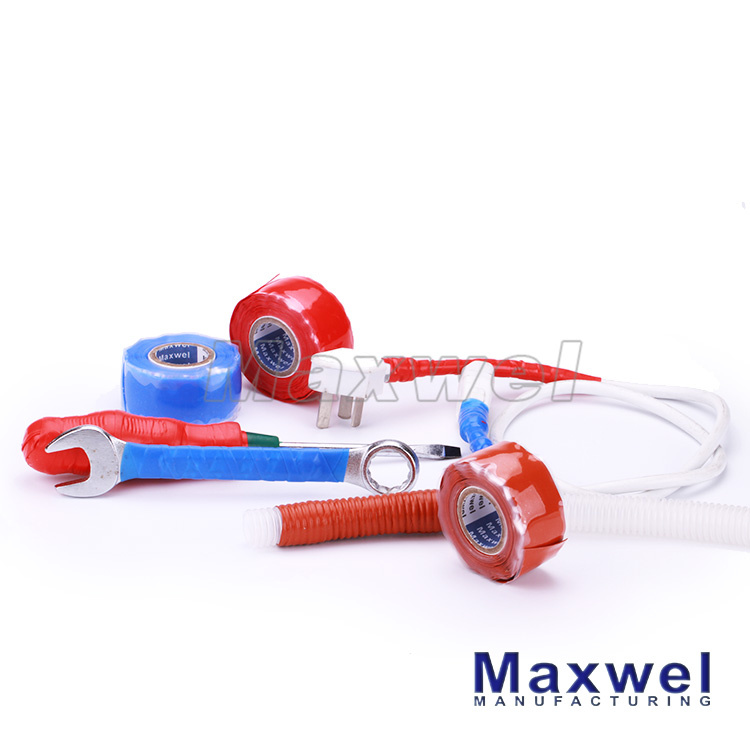

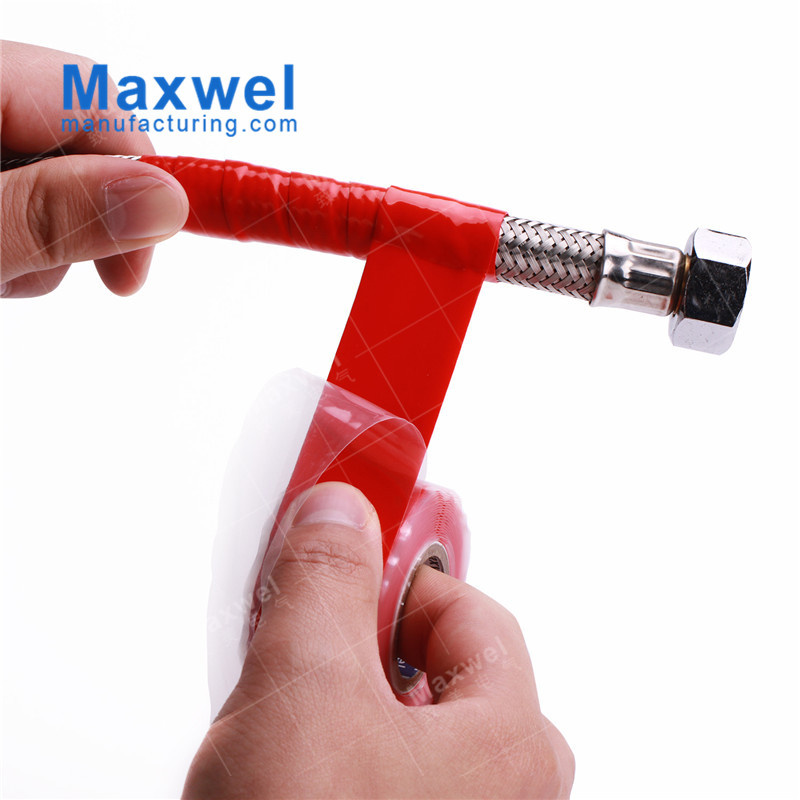

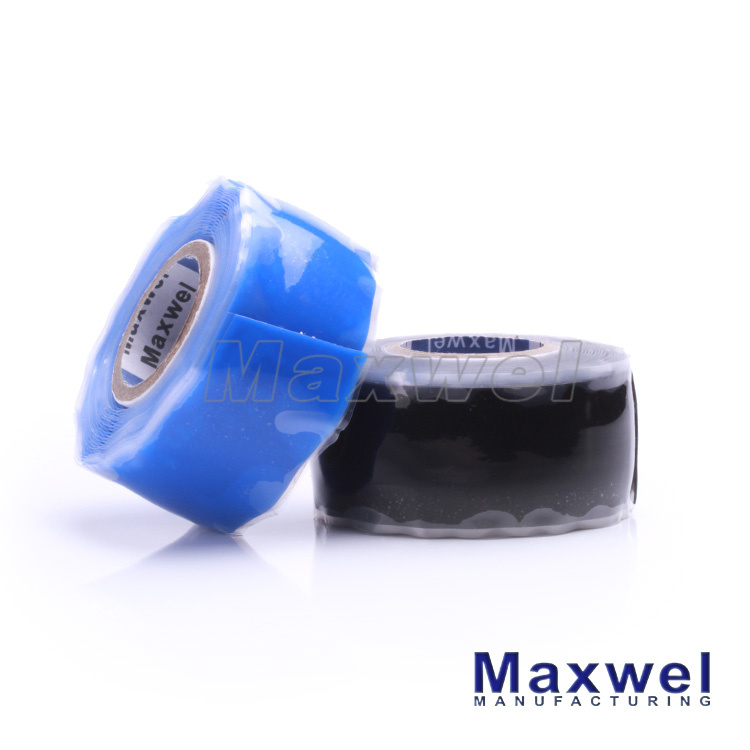

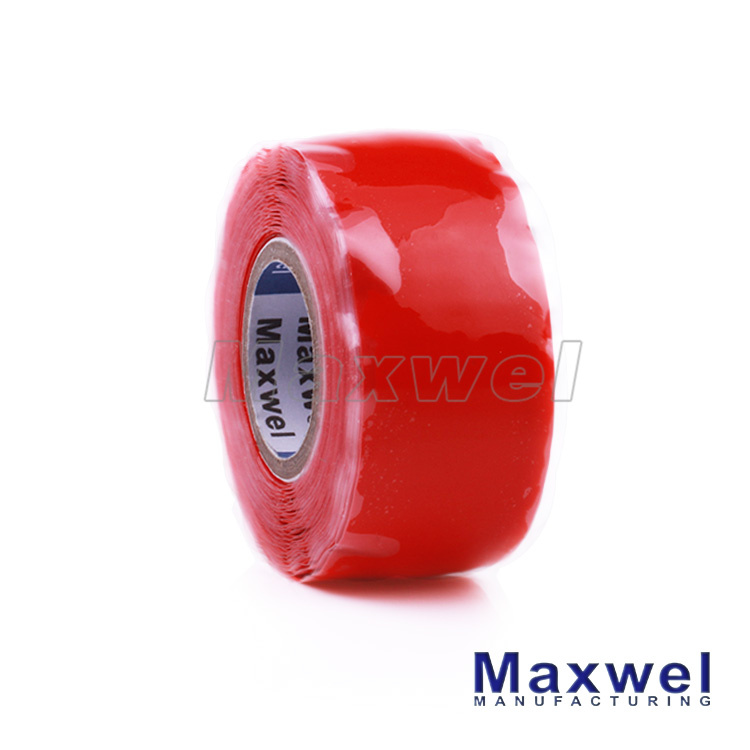

High voltage Silicone Rubber tape insulation tape
KE30s self fusing tape is an affordable and highly functional silicone fusing tape,highly demanding applications including military and aerospace, you can rely on Maxwel KE30S in your application.
Features
Non-vulacanizing and highly conformable
Physical and electrical properties are unaffected by the degree of stretch
Moisture resisant insulation,self amaglamating tape
Excellent electrical properties

Typical physical properties

Property	Unit	SFT	Test Method
Durometer	shoreA	50	ASTM D2240
Tensile Hardness	PSI	1200	ASTM D412
Elongation	400%	612	ASTM D412
Dieletric strength	V/MIL(KV)	881(10,500)	ASTM D149
Bond strenth	lbf/in	2.4	mil-l-46852/A-AA59163
Water Absorption	%wt	0.38	mil-l-46852C/A-A-59163
