| Prod Model: |
BRP Series |
| Model No: |
Brp Series |
| Types: |
Winding Types |
| Rated Voltage: |
3.0V Series |
| Rated Capacitance: |
1.0f ~360f |
| Temperature Range: |
-45c to +65c |
| Delivery Detail: |
7 to 15 Days |
| Mounting Type: |
Snap-in,Wire Lead |
| Color: |
Black |
| Type: |
Supercapacitor |
| Application: |
High Voltage |
| Package Type: |
Through Hole |
| Capacitance: |
1.0f~360f |
| Filter: |
Supercapacitor |
Product Description
Features Cylindrical shape structure, Winding types,Snap-in
High voltage up to 3.0V, Wide temprature range from -40C ~65C
Ulta low ESR for high power density ,Large capacitance for high energy density;
Ultra-low internal resistance,suitable for high power discharge;

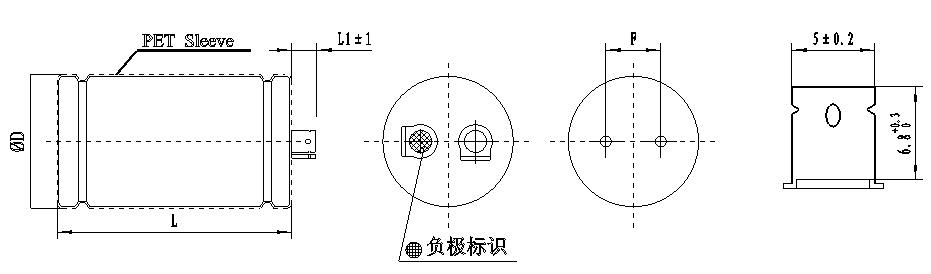

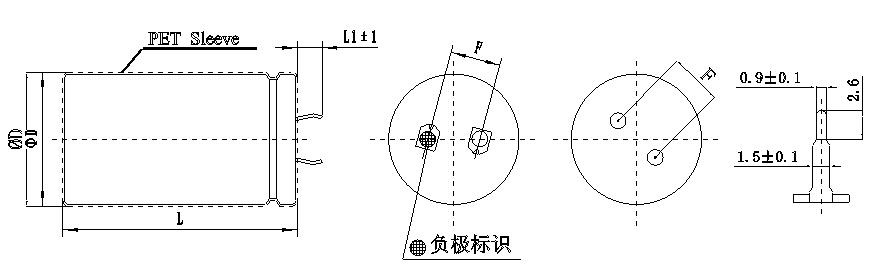

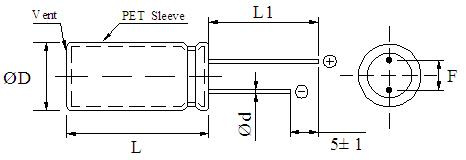

Comply with RoHS standards, no CD, Pb and other pollutants; SpecificationsShape of standard product
We can customize suitable super capacitor for you
3.0V 1.0F super capacitor,
3.0V 3.3F ultracapacitor,
3.0V 4.7F super capacitor,
3.0V 5.0F super capacitor,
3.0V 10F super capacitor,
3.0V 22F super capacitor,
3.0V 30F super capacitor,
3.0V 60F super capacitor,
3.0V 360F super capacitor,
3.0V 400F super capacitor,
and so on
Part Number | Nominal Voltage
V dc |
Capacitance
F |
MAXESR
1kHz,mΩ | ΦD×L
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0
(mm) |
| BRP003R0L105FA | 3.0 | 1.0 | 300 | 8×13 | 3.5 | 0.6 | 30 |
Part Number | Nominal Voltage
Vdc |
Capacitance
F |
MAXESR,
1kHz,mΩ | ΦD×L
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0
(mm) |
| BRP003R0L106FA | 3.0 | 10 | 50 | 12.5×26 | 5 | 0.6 | 30 |
Part Number | Nominal
Voltage
V dc |
Capacitance
F |
MAXESR,
1kHz,mΩ | ΦD×L
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0
(mm) |
| BUP003R0L306FA | 3.0 | 30 | 35 | 12.5×34 | 5 | 0.6 | 30 |
Part Number | Nominal
Voltage
V dc |
Capacitance
F |
MAXESR
1kHz,mΩ | ΦD×L
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0
(mm) |
| BUP003R0L107FA | 3.0 | 100 | 20 | 18×45 | 8 | 0.8 | 30 |
Part Number | Nominal
Voltage
V dc |
Capacitance
F |
MAXESR
1kHz,mΩ | ΦD×L
±1.0(mm) | F±0.5
(mm) |

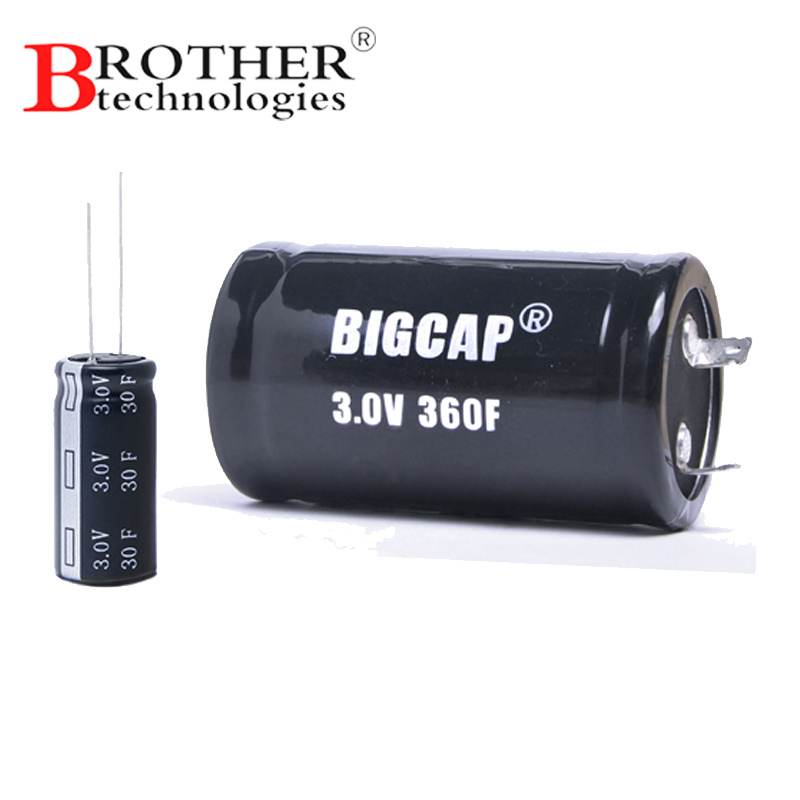

| BRP003R0C367FA | 3.0 | 360 | 3.0 | 35×61 | 14 |
| Desc | Supercapacitor |
| Cap Rating | 360F/400F |
| Rated Voltage | 3.0V |
| ESR (DC)MAX | 3.0 mΩ |
| Case size | 35mm Dia ×61mm length |
| Cycle life | 500000 cycles |
| Operate Temp Range | -40ºC to +85ºC |
| Manufacturer/Supplier | LIAONING BROTHER ELECTRONICS TECHNOLOGY CO., LTD |

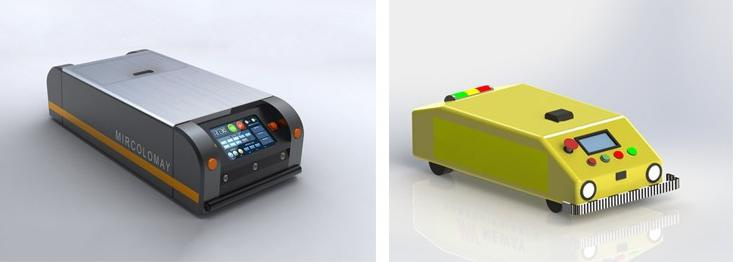

ApplicationsCan be used in Pitching control system of Wind Turbine Generator; Hybrid drive trains;Mass transportation braking, energy recovery system;UPS/DVC; Heavy duty machinery;Locomotive engine startup system; The solar ,wind power system.super capacitor including radial leads capacitors can be used in the CVG robots to trsport goods inside workshop.
Our Service1. All of BIGCAP super capacitor 3.0v 0.25f, 0.35f, 0.5f, 1f, 2f, 3f, 3.3f, 4.7f, 5f, 8f, 10f, 15f, 20f, 25f, 30f, 50f 60f,70f,100f,120f,360f,400f,500f,700f quality guaranteed 1 year2.We can supply our customer high quality products with a reasonable price, by using our products, customers can cut off their production cost and assure their products' stability.
3.We can design and produce products according to customer's requirments.
4.With our professional technical team,we can provide our customer with professional technical support.
5.More importantly,we will be five-star service,high quality and low price!
Liaoning Brother Electronics Technology Co., Ltd is a manufacturer of the Bigcap® Super capacitors which is located at High-TechTechnologyIndustrial Park, Chaoyang, Liaoning. Favorable location endows our company with easy access to transportation and communication.
Our company specializes in the design, research, development, production and sale of various super capacitors which exhibit complete specifications and reliable quality. The capacity of single super capacitor ranges from 0.01F to 3000F and our products extend to cover more than 100 types in around ten series, such as BRE, BRP and BME. So far our products have come into extensive use in such areas as intelligent instruments (gas meter, water meter, ammeter, etc. ), electrical equipment, medical equipment, solar and wind energy products, toys, and electric cars. Serving as back-up source, our products supplies high power in short term.
Our research team is highly experienced in the manufacturing of super capacitors. Our management has been engaging in the management of production and R&D of super capacitor for 12 years, our main technical personnel have 8 to 10 years' experience in the design and manufacturing of this field and our workers have more than 5 years' experience in the processing of super capacitors. Our work team that is made up of the technical elites of the industry commits to turning out first-rate super capacitors of China and to enabling our products to play a leading role in international brands.
By carrying forward the valuable experience in the super capacitor industry and combining the advanced electrode activation technology, now our products exhibit advanced technical level in China and stable quality. Our BIGCAP® Super capacitor series is characterized by reissuance to high voltage (Single super capacitor can operate in 2.8V. ), great stability in long-term operation, wide temperature range (maximum temp.: 85º C), ultralow internal resistance that applies to electric discharge of medium and large power.
Our production facilities are characterized by high automation degree and high precision. Our company carries out the Six Sigma management system and has obtained the ISO9001: 2008 quality management system and the ISO14001: 2004 environmental management system. Our products are environmental-friendly and comply with the RoHS of the EU.
