Home Applicance HVAC System Ball Valves Thermostat

Product Summary

TGT70-EP Home applicance HVAC system thermostat is used to control the temperature of heating elements in industrial, commercial and domestic room floor heating system, expecially in electrical heating systems.

It is generally used to control heating applications, such as heating films, heating cables and heating mats.

Product Technical Parameter

Working Voltage	AC 200~240V, 50-60Hz
Currant Load	16A
Temp Control Accuracy	-1/1 Celsius
Consumption	<0.3W
Setting Temp	5-60 Celsius
Floor Setting Temp Range	5-99 Celsius
Installation	Wall Inserted Installation
Installation Box Dimension	80mmx80mm European Standard Box

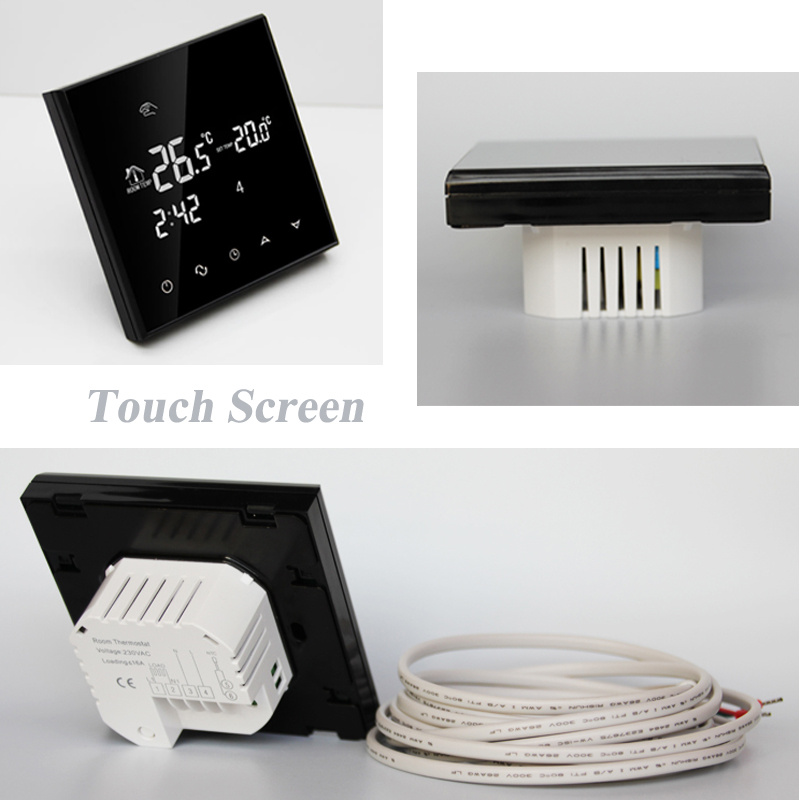

100% Real Product Photos

-----------------------------------------Thermostat Front----------------------------------------------

---------------------------------------Thermostat with Sensor----------------------------------------

Product Features

1. TGT70-EP Thermostat Main Features & Functions---

1.	With foreign wide voltage technology, make power more stable
2.	With 5+1+1/6+1/7 Days Programmable function, customer can set 6 periods time per day
3.	3 Sensors Modes
4.	With Data Memory function
5.	With Child Lock function, to prevent wrong operation
6.	With Anti-freeze function;

2. About Thermostat Programmable Function---

Period		Defaulted Time	Defaulted Temp.
Week	1	6:00	20 Celsius
	2	8:00	15 Celsius
	3	11:30	15 Celsius
	4	12:30	15 Celsius
	5	17:30	22 Celsius
	6	22:00	15 Celsius
Weekends	1	8:00	22 Celsius
Weekends	2	23:00	15 Celsius

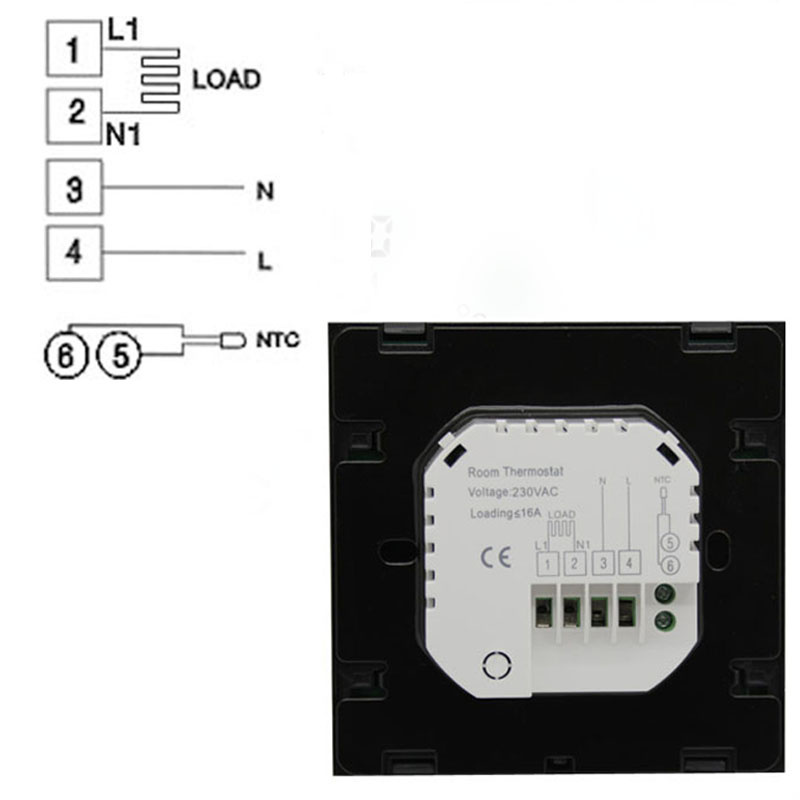

Thermostat Back Connect Diagram

Product Model Spec

Att: We also have TGT70-WP thermostat to control valves, thermal actuators in water heating system.

Model	Current Loading	Sensors
TGT70-EP	16A	With Two Sensors
TGT70-WP	3A	With only Internal sensor

Product Package

In the Inner packing box, you will find:

Thermostat	1pc
External Sensor(Floor Sensor)	1pc
User Manual	1pc
Screws	2pcs
Drayer	1pc

Prod Model:	TGT70-EP
Working Voltage:	220V
Current Loading:	16A
Temperature Control:	HVAC Theory Thermostat
Temperature Switch:	Adjustable Thermostat
Sensors:	External Sensor and Inner Sensor
External Sensor Length:	3m
Backlight:	Black
Thermostat Working Environment:	0~+45 Celsius
Dimension:	86mmx86mmx15mm
Installation Box:	European Standard Box
