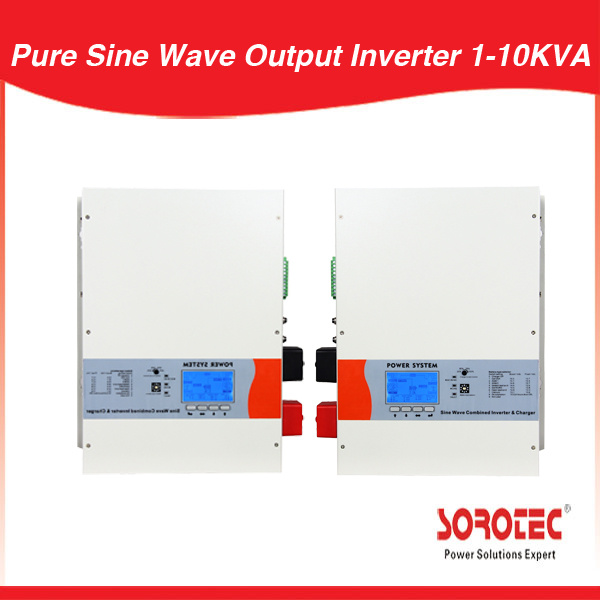

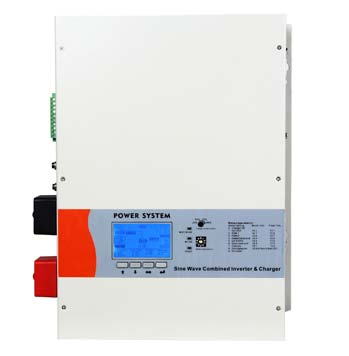

Home Supply AC Power Inverter Backup Power Pure Sine Wave Output Inverters Ig3115CS 1-10kVA

Prod Model:	IG3115CS 1-10KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Frequency:	50Hz/60Hz
Color:	White
Output Voltage:	Dependent on Battery Type
Input Wave Form:	Sine Wave (Utility or Generator)
Max Bypass Current:	30 AMP or AMP
Line Transfer Time:	10ms Typical
Bypass Without Battery Connected:	Yes
Power Factor:	0.9-1.0
Appliacations:	Home Appliances

Product Description

Home Supply AC Power inverter Backup Power Pure Sine Wave Output Inverters IG3115CS 1-10kVA


Key Features:

1.Could be setting frequency by LCD display with color screen

2.Battery type and charge current can be select

3.Output power factor:s 0.9-1

4.Full automatical and silent operation

5.Microprocessor control guarantees high reliability

6.Remote control function

7.Four-steps intelligent charging control to recharging time



Full protection:
Protection for low battery voltage ,over load ,output short circuit and over- temperature restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.


Applications:
Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.


Technical Parameters:

MODEL	IG3115CS       1-10KVA
	1000W	1500W	2000W	3000W	4000W	5000W	6000W	8000W	1000W
Input wave form	Sine wave (utility or generator)
Normal voltage	120VAC(option) 230VAC							220/230/240VAC
Low voltage re trip	90V±4% & 184V/154V±4%							154V
Low voltage re engage	100V±4% & 194V/164V±4%							164V
High voltage re trip	140V±4% & 253V±4%							273V
High voltage re engage	135V±4% & 243V±4%							263V
Normal input frequency	50Hz/ 60Hz (auto detection)
Low freq trip	47Hz for 50Hz,57Hz for 60Hz							40Hz
High freq trip	55Hz for 50Hz,65Hz for 60Hz							80Hz
Output Wave form	(Bypass mode)same as input
Over-Load Protection	Circuit breaker							Yes
Short circuit Protection	Circuit breaker							Yes
Efficiency on line transfer mode	95%+
Line transfer time	10ms Typical
Bypass without battery connected	Yes
Max bypass current	30 amp or amp
Bypass over load current	30 amp or amp:Alarm
Inverter specification/output
Output wave form	Pure sine wave
Output continuos power watts	1000	1500	2000	3000	4000	5000	6000	8000W	10000W
Output continuos power VA	1000	1500	2000	3000	4000	5000	6000	8000W	10000W
Power factor	0.9-1.0
Nominal Output Voltage rms	120VAC(option) 230VAC							230VAC
Output Voltage regulation	+/- 10%rms
Output frequency	50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification	>88%
Short circuit protection	Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage	12V/24V/48V
Minimum start voltage	10V/20V/40V
Low battery alarm	10.5V/21V/42V
Low battery trip	10V/20V/40V
High voltage alarm	16V/32V/64V
Power saver	Below 25 watts when enabled
Power saver	Same switched on/off on remote
Charger mode spe cification
Output voltage	Dependent on battery type
Charge current	10-85A MAX							75A MAX	85A MAX
Battery initial voltage for start up	0-15.7v for 12v(*2 for 24v;*4 for 48v)
Over charge protection	15.7v for 12v(*2 for 24v;*4 for 48v)

APPLICATION OF OUR PRODUCT


1. Living house and home building
2. Office building, factory and warehouse
3. Shopping mall, stadium and so on
4. Power station, field operation and some huge engineer construction
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip



COMPANY SHOW

Introduction of Company
Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.
Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



WHY CHOOSE US ?

1, QC Control
The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.
2, Best Partner
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.



FAQ


1. How to choose suitable inverter?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.

For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.

Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power
.......................................................................................................................................................................

2. How do I choose the size of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the
size of the power inverter.

Notice:

Resistive load: you can choose the same power as the load.

Capacitive loads: according to the load, you can choose 2-5 times power.

Inductive loads: according to the load, you can choose 4-7 times power.
.......................................................................................................................................................................

3. How connection between batteries and an power inverter?

We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions
.......................................................................................................................................................................

4. How to calculate the load of working hours requires configuration of the battery size?

We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:
   Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)
.......................................................................................................................................................................
