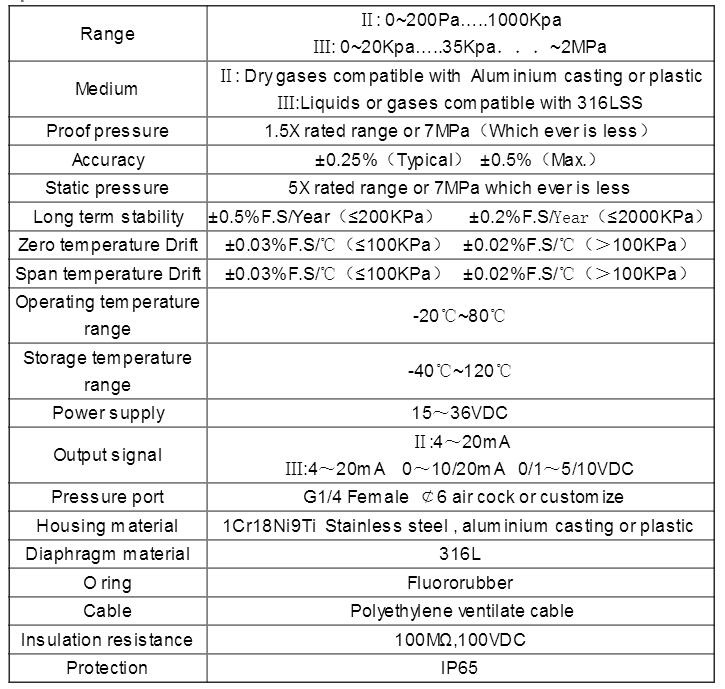

| Prod Model: |
HTW-CQ04531-IX |
| Operating Temperature Range: |
-20 ºC~80ºC |
| Storage Temperature Range: |
-40 ºC~120ºC |
| Supply Power: |
15~30VDC |
| Output Signal: |
4~20mA or 0~10/20mA or 0/1~5VDC Optional |
| Insulation Resistance: |
100mΩ 100VDC |
| Housing Protection Level: |
IP65 |
| Pressure Range: |
0~2MPa |
Product Description
General
Honeywell Capacitive Pressure Sensor Transducer Transmitter(HTW-CQ04531-IX) series diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performance microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.
Application
Differential Pressure Transmitter HTW-CQ04531 series diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performance microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.

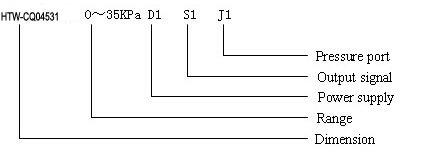

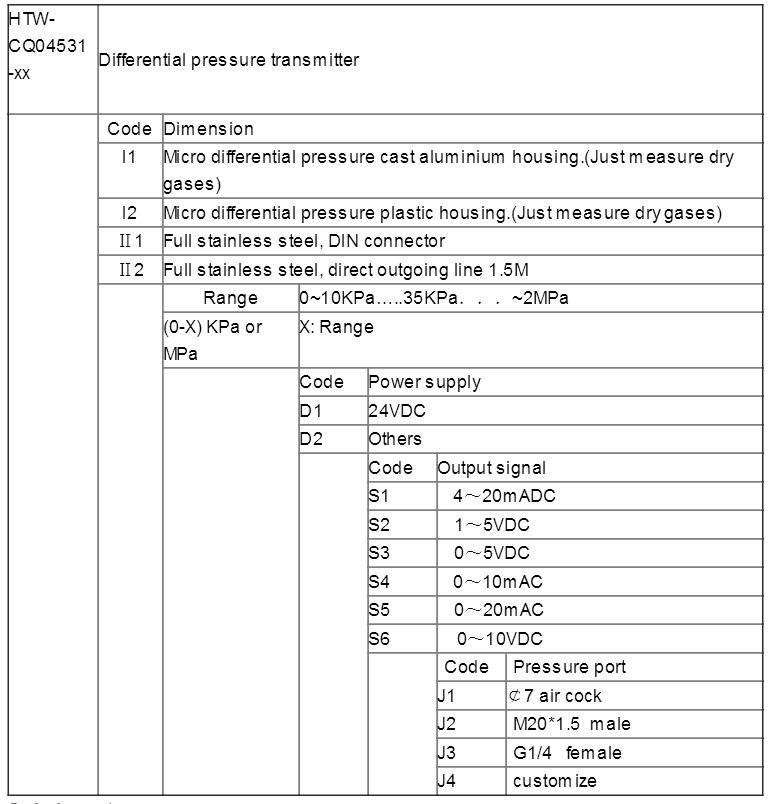

Ordering Information
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
HOTOWELL International Co., Limited is an innovative and modern medium-sized enterprise, the company is headquartered in Xiamen (China/Fujian). Hotowell was found to offer our customers mature top technology. Our creative potential and our manufacturing and development know how are the basis for innovative products. Since the company was founded, HOTOWELL International Co., Limited has continuously developed itself into a market leading enterprise in the HVAC Automation / Building Automation. Our products mainly applied for industrial, commercial and residential temperature control.
Our product range contains:
Thermostats, Motorized Zone Valves, Water Flow Switches, Proportional Valves, Balancing Valves, Differential Pressure Transmitters, PIR Motion Sensors, Fan Controllers, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc.
HOTOWELL products are designed and used as field control products to be integrated with HVAC control systems such as:
BAS = Building Automation System
BMS = Building Management System
BEMS = Building Energy Management System
BAMS = Building Automation Management Systems
HVAC controls = Heating, Ventilation and Air Conditioning controls
Our objective is to develop, produce and design user-friendly products on the highest technical level. We place great value on always meeting the requirements of the latest technical standard. In this process we take the utmost care in complying with quality and safety standards and thus ensure a long service life for our products. Products that satisfy rigorous quality requirements can only be manufactured through modern manufacturing methods. Satisfaction of all safety and environmental guidelines is a matter of course for us.
