| Prod Model: |
ACH |
| Markets: |
Eastern Europe,Mid East,Western Europe |
| Qty Of Relay: |
Four |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
SVC |
| Frequency: |
Industrial Frequency |
| Brand: |
Honle |
Product Description

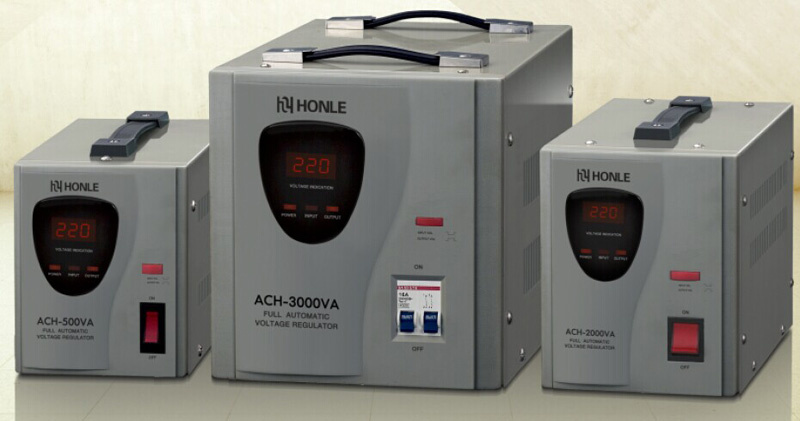

ACH Relay type voltage regulator
FEATYRE
This series automatic voltage regulator is a kind of relay control stabilizer, it owns the wide input voltage range, compact size. Light in weight, delay output, little wave distortion and reliable, strict design and accurate assemble. This kind og stabilizer can ass voltage regulating function also. In one word, this type stabilizer is very popular in overseas for the competitive and stable performance.
Technical Features
Input voltage: 150-270V
Output voltage: 220V± 8% 110V± 10%
Delay output time: 3-7min/3-7sec
Frequency: 50HZ/60HZ
|
Model |
Power |
ACH-500VA |
ACH- 1000VA |
ACH- 1500VA |
ACH-2000VA |
ACH- 3000VA |
ACH- 5000VA |
|
Input |
Phase |
Single Phase |
|
Voltage |
AC150-270V |
|
Frequency |
50Hz/60Hz |
|
Output |
Voltage |
220V+/-8%,110V+/-10% |
|
Efficiency |
98% |
|
Frenquency |
50Hz/60Hz |
|
Over voltage protection |
AC246V+/-4V |
|
Protection |
Under-volt |
Optional |
|
Over-volt |
Optional |
|
By pass |
Optional |
|
Delay |
3-7min/3-7sec |
|
Over load/short circuit |
Yes |
|
Environment |
Operating temperature |
-10~40 C |
|
Storage temperature |
-15~45 C |
|
Humidity |
20% to 90% |
|
Packing |
Pcs/carton |
8 |
4 |
4 |
4 |
1 |
1 |
|
Machine size(cm) |
24*11.2*14.5 |
25*12.5*16.8 |
25*12.5*16.8 |
25.5*14*18 |
36.5*22.2*25 |
36.5*22.2*25 |
|
Package dimension(cm) |
50*27.5*33 |
27*29*35.5 |
27*29*35.5 |
35.5*30*41 |
41.5*27*30 |
41.5*27*30
|
Honle Electric Co., Ltd is the manufacturer specialized in producing industrial electrical products. It has three factories, the first one produces power supply, the second one produce power transformer, the third one produces complete plants and equipment. As a member of China Power Supply Society, since its foundation, the company has been insisting on the theoretic guideline of "science &technology is the first productive force" and holding up brand strategy as the guide, relying on forward understanding about power supply technology, perfect craft and unwearied pursuing to quality, we can show top quality power supply products, and set up fine image in Chinese market and overseas market.
Up to now, Honle has the modern workshops and advanced production devices. Besides, the company always introduces technology positively, reforms craft continuously, devotes to researching and developing the voltage stabilizer, regulator and power supply, precise pureness power supply, providing, marketing for products. The company always do researching and developing the stabilized voltage power supply, precise pureness power supply, providing marketing for products. In addition, the company tries to find excellent administrators and technical talents. After just a few years of continuous efforts, Honle has been improved on the aspect of varieties, production scale, management mode. So products manufactured by Honle have reached advanced technical level, they are not only popular with a great many customers in China, but also in foreign countries.
The products of our company have been approved by Shanghai Quality Supervision & Inspection Institute, and insured by PICC company. Honle insists on the quality of survival, innovation and development all the time, and it has passed ISO9001 quality management system certification. Relying on rich economic strength, fine production engineering, innovating management mode, we can dare to meet kinds of challenges from China entering WTO. That is helpful for establishing reinforced foundation of international business.
