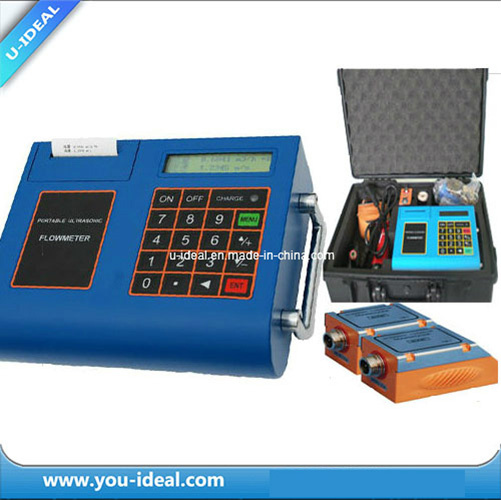

Hot! ! High Accutacy Portabl Ultrasonic Flow Sensor
| Price: |
US $ 250/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Ultrasonic Flow Meter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy.: |
1% |
| Max Flow Velocity: |
64m/S |
| Repeatability: |
220VAC/ 8~36VDC |
| Application.: |
Industrial Production |
| Size.: |
Dn15-100, Dn50-700, Dn300-6000 |
| Type: |
Ultrasonic Sound |
Product Description
Ultrasonic flow meter consist of ultrasonic flow sensor and flow indicatoris designed to measure the velocity of liquid within a closed conduit.
Ultrasonic flow meter is designed to measure the velocity of liquid within a closed conduit. It uses the well-known transit-time measurement principle, plus our proprietary signal processing and ultrasonic transceiving technologies.
TUF-2000F fixed ultrasonic portable ultrasonic flowmeter(clamp on)flow meter,Ultrasonic flow meter
1.Accuracy:Better than 1%
2.Repeatability:0.2%
3.Keypad:4x4-key
4.Velocity:0.03-32 m/s
1. Built-in printer
2. Built-in data loggerPortable ultrasonic flow meter
Handheld ultrasonic flow meter
Separate fixed ultrasonic flow meter
Applicable medium: Water, sea water, fuel oil and other single, uniform and stable liquid which can conduct ultrasonic
Introduction:1. The ultrasonic flowmeter has the excellent features and functions such as the pulse measurement technology, the ultrasonic igniting and the small signal receiving circuits etc.
2. It incorporates the latest ICs manufactured from the famous semiconductor manufacturers like Philips, Maxim, TI, Winbond, and Xilinx.
3. It has ease of operation, high accuracy and outstanding reliability, while the software provides a very friendly user interface and much more functions.
4. Its strong anti-interference ability makes sure that it can work properly even in demanding industrial environments such as those with power frequency transverter working nearby.
5. The signal receiving circuits feature self-adapting performance so as to ensure that the user can easily operate the instrument without any adjustment.
6. The built-in rechargeable Ni-H battery can work continuously for more than 12 hours without recharging.
7. The user-friendly software interface both in English and Chinese languages and small-sized PCB board.
flow Sensor:1.External clamp-on sensor (fluid temperature: ≤ 110 Degrees Celsius)
Standard small
sensor S1 type (magnetic)For diameter:
DN15-100mm Dimension: 45 × 30 × 30mm
Quality: 75 grams
2.External clamp-on sensor (fluid temperature: ≤ 110 Degrees Celsius)
Standard
M1-type medium-sized sensors (magnetic)For diameter:
DN50-700mmDimensions: 60 × 45 × 45mm
Quality: 250 g
3.External clamp-on sensor (fluid temperature: ≤ 110 Degrees Celsius)
Standard
large-scale sensor type L1For diameter:
DN300-6000mmDimensions: 80 × 70 × 55mm
Quality: 528 g
What is Ultrasonic Flow Meter?Ultrasonic flow meter is designed to measure the velocity of liquid within a closed conduit. It uses the well-known transit-time measurement principle, plus our proprietary signal processing and ultrasonic transcribing technologies.

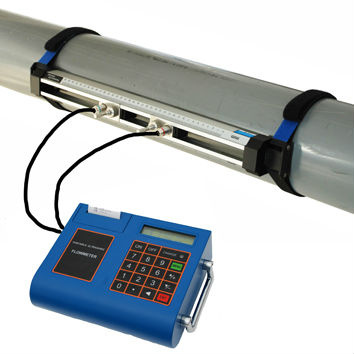

A pair of ultrasonic transducers is mounted on the pipe upstream and down stream respectively. Each transducer serves as both ultrasonic transmitter and receiver. The main unit operates by alternately transmitting and receiving a coded burst of sound energy between the two transducers. The transit-times in the upstream direction as well as in the downstream direction are measured. The difference of the two transit times is directly and exactly related to the velocity and the liquid in the pipe.

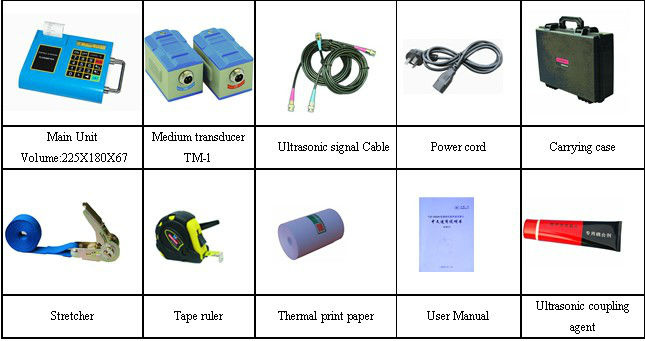

| Items | Spec |
| Main Unit | 2 line x 20 character LCD with backlight |
| Working temperature: -20--60°C |
| Mini thermal printer with 24 line character output |
| 4x4+2 pushbutton keypad |
| RS485 serial port, can download the newest software upgrading on our company's website |
| Transducers | TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110°C |
| TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature ≤110°C |
| TL-1: Large size transducer (magnetic) for pipe size: DN300-6000mm, liquid temperature ≤110°C |
| Liquid types | Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave. |
| Flow velocity range | 0-±30m/s |
| Accuracy | Better than ±1% |
| Power Supply | Built-in rechargeable Ni-MH battery (for 20 hours operation) or |
| AC 220V |
| Power Consumption | 1.5W |
| Charging | Intelligent charging with AC 220V. After charging sufficiently, it automatically stop and display green light |
| Weight | Net weight: 2.5kg (main unit) |

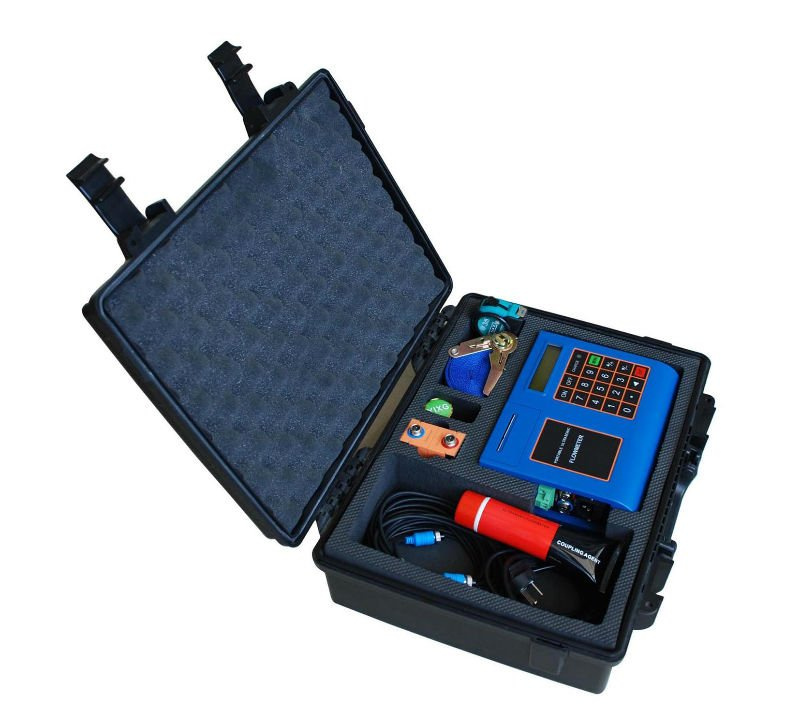

| Remarks | With a high strength carrying case suitable for normal and harsh environment |
