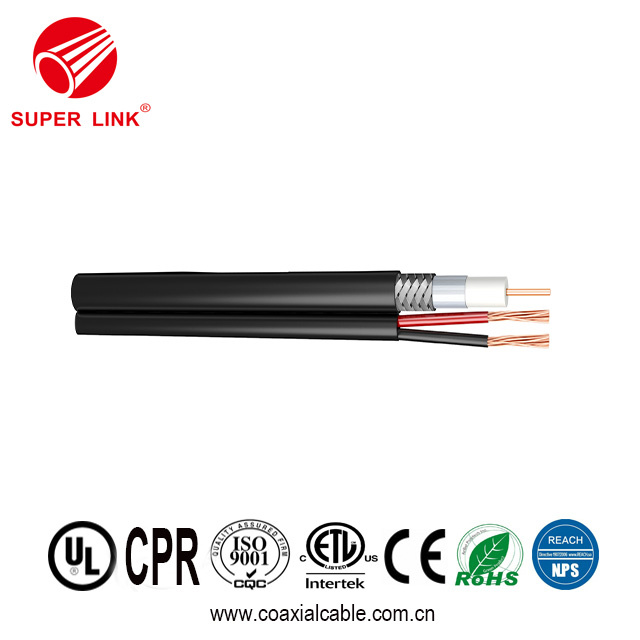

Hot Product Coaxial Cable Rg59+2c
Price: |
US $ 0.1-1/Meter |
Min Order: |
30000/Meter |
Pay Type: |
L/C,T/T |
SUPERLINK Factory Manufacture Coaxial Cable RG59/U
SpecificationsConstructionCenter Conductor: | 0.81mm BC/CCS |
Dielectric: | 3.00mmFoam PE |
Shield: | Bonded Al Foil |
Braid Coverage: | 50%-95%AL/BC/TC |
Jelly/APD: | Per Customers' Special Requirement |
Jacket: | 6.10mm PVC |
Colour: | Black | | |
Power cableCenter Conductor: | 2*(16*0.245CCA) |
Jacket: | 1.8PE |
Colour | Black & Red |
Connector | BNC DC MALE-FEMALE |
CharacteristicsSparker Test: | 4000VAC |
Impedance: | 75+3 Ohm |
Capacitance: | 50+3PF/m |
Velocity of Propagation: | 85% |
Return Loss: | 20dB min (5-2300MHz) |
AttenuationAttenuation | [@68o F.(20o C.)] |
Frequency (MHz) | Maximum (dB/100 FT.) | Maximum (dB/100 m) |
5 | 0.86 | 2.82 |
55 | 2.05 | 6.73 |
187 | 3.6 | 11.81 |
300 | 4.45 | 14.6 |
450 | 5.4 | 17.72 |
600 | 6.2 | 20.34 |
750 | 6.97 | 22.87 |
865 | 7.52 | 24.67 |
1000 | 8.12 | 26.64 |
1200 | 8.97 | 29.4 |
1450 | 9.88 | 32.41 |
1800 | 11.81 | 38.72 |
2200 | 13.05 | 42.78 |

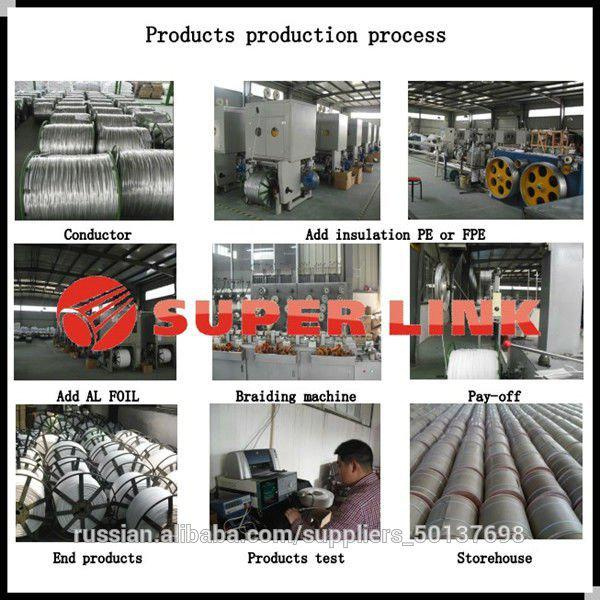

producing process
Certifications We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.
Our Services 1. Free sample
2. We can suggest you our suitable products when u have no idea about the cable.
3. If available for you, welcome to visit our factory.
4. We can according to your samples to produce exactly the same product
We will do the QC test for
6. If our customer have any problem, we will reply at 24 hours

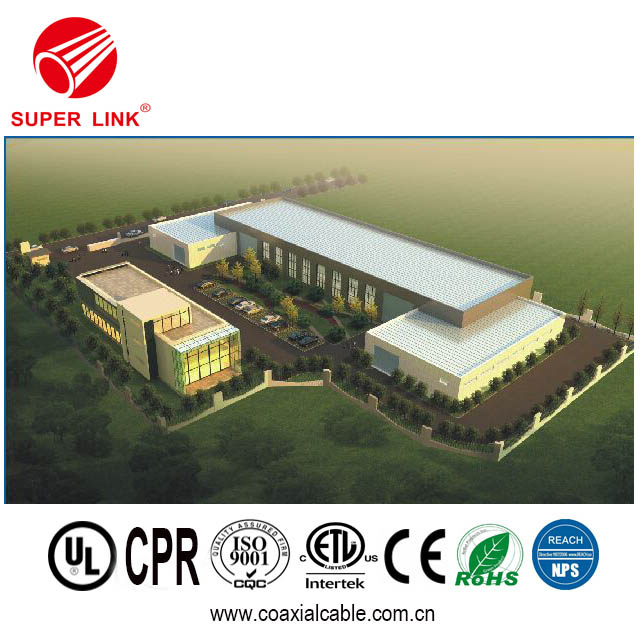

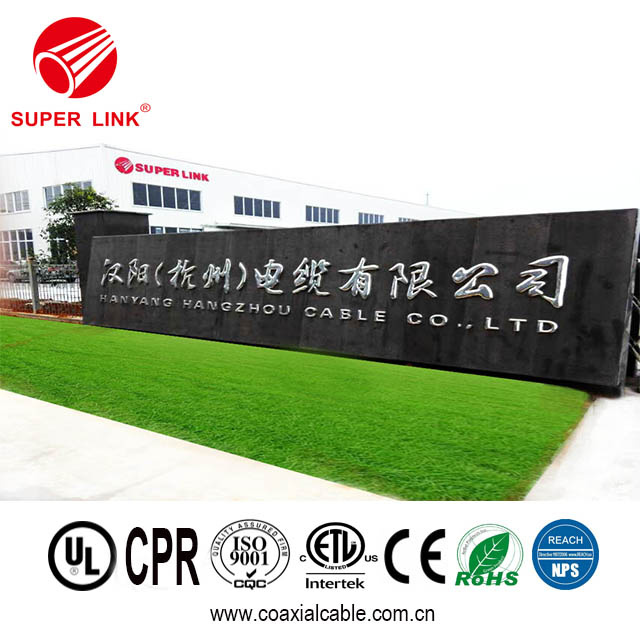

Company Information
Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990, located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA specializes in the production ofcable, such as coaxial cable, network cable, speaker cable, etc. which are highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and services to clients all over the world.
All Cable we can produce:
#Power cable
All Cable we can produce:
#Power cable
YJV22 0.6/1KV2,VV22 0.6/1KV3,VJV 0.6/1KV4,VV 0.6/1KV5,VLV22 0.6/1KV6,YJV327,VLV 0.6/1KV8,VLV32 0.6/1KV
#Fire-resistant wires and cables
NH-VV 0.6/1KV2,NH-VV22 0.6/1KV3,NH-YJV4,NH-YJV225,BH-BV6,NH-BVR7,NH-KVV,NH-KVV228,NH-BVV,NH-BVV22
#High voltage cable
YJV222,YJLV223,YJV4,YJLV5,YJV32
#Coaxial Cables: OEM CATV CCTV cable
1) RG series Coaxial Cable:Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316,BT3002 etc.
2) JIS series Coaxial Cable:1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8
4) TRUNK Cable:412, 500, 540
5) LMR SERIES:LMR200, LMR400, LMR600
#Network Cables: OEM from 1-100 pair
LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7
#Alarm Cables:
Alarm cable 4*0.22 Alarm cable 3*0.5 Alarm cable 8*0.22 Alarm cable 14*0.22
unshield and shield
#POWER CABLE SPEAKER CABLE:
2*0.75MM 2*1.5MM 2*2.5MM 3*2MM
Prod Model: |
RG59+2C |
Dielectric: |
Foam PE |
Shield: |
Bonded Al Foil |
Braid Coverage: |
Bc/Al/Tc |
Length: |
305m |
Application: |
LAN Cable |
Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
Cover Material: |
PVC |
Certification: |
UL |
Type: |
Coaxial Cable |
Model: |
Rg59/U |
Brand: |
OEM or Superlink |
Hangyang(Hangzhou) Cable Co., Ltd. is located in Linan Hangzhou City, Which specializes in the production of coaxial cable RG6, RG58, RG59, RG7, RG8, RG11, RG59+Power cable etc. And network cable TP/FTP cat5e, CAT6, cat7.
We focus on providing high quality OEM/ODM cables and services to clients all over the world. All cables were produced in accordance with IEC, We also passed ISO901 Quality Certification, to maintain high quality standards, we use HP network analyzer to test every batch of cable.
"Quality first, service first, continuous improvement and innovation to meet the customers" is our principle; We sincerely hope establish long and friendly business relationship with clients from all over the world. Our goal is not just providing product, but also providing a complete solution for our customers to achieve their upmost satisfaction
