| Prod Model: |
LK0FPU3016601 |
| Size: |
86/120 |
| Sample: |
Available |
| Service: |
OEM, ODM |
| Place Of Origin: |
Guangdong, China |
| Application: |
Network |
| Delivery Detail: |
7 Days |
| Package: |
Inner Bag, Box and Carton Package |
| Shipping Terms: |
DHL/FedEx/EMS/UPS/TNT Ect. |
| Type: |
Different |
| Quality: |
High Quality and Best After-Sale Service |
| Material: |
ABS |
| Certification: |
ISO: 9001 |
| Customized: |
Customized |
| Condition: |
New |
| Port: |
1 Port |
| Color: |
Optional |
Product Description

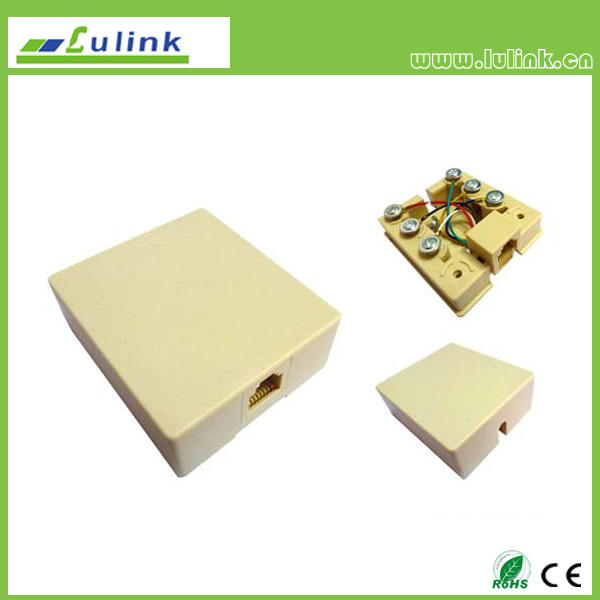

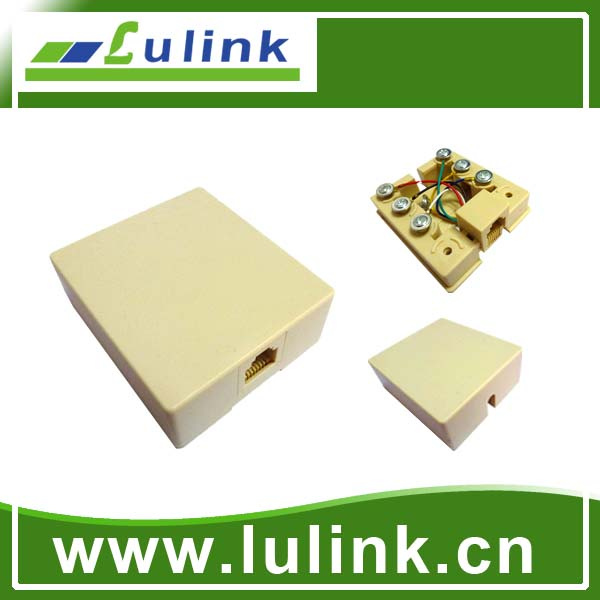

Best Price Surface Mounting Telephone Box
Item No.:LK0FPU3016601
Product Name: surface mount telephone boxColor: WhiteMaterial: ABS
Specifications:
Surface Mounting Telephone Box A. Single port RJ11/6P2C jack.
B. With gel including contact and conductor.
C. Waterproof, Tooless type Gel filled inside

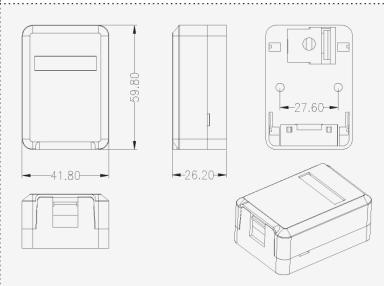

Dimension: 55× 50× 22mm 2. Mechanical Performance
Socket Material: PC( UL94V-0)
Box Material: ABS
Oxygen Number: 30%
Chemical Resistance Corrosion: Corrosion Test is in compliance with IEC-60068-2-11 standard, contact resistance, following completion of the test, not increase for more than1 Milliohm with regard to the initial contact resistance quantity.
Finishing: 6u", 15u", 30u", 50u"
Contact Pressure
(plug termination side): 4.5-5.5N/sp. M
Treatment Porosity: Fill with gel
Male Plug Introduction: RJ11 6P2C
Shocks Resistance: 55-64N/sp. M
Free Drop Test: 1.5m Height.
Insertion Force: 20-50N. 3. Electrical Performance
Insulation Resistance: R≥ 1000M Ohm
High Current Holding: 8/20us Wave (10KV)
Contact Resistance: R≤ 5m ohm
Dielectric Strength: 1000V DC 60s can't spark over and haven't fly arc 4. Environment Characteristic
Storage Temperature Range: -40+90º C
Operating Temperature Range: -30+80º C
Relative Humidity: <95%(at20)
Atmospheric: Pressure: 70KPa106KPa Products Description:Use this mount box like you would use a outlet face plate to cover and connect keystone connectors to the wall and make a nice neat looking wiring for the house or office. The mount boxes features a compact, easy to install design. Components can be installed into the base .

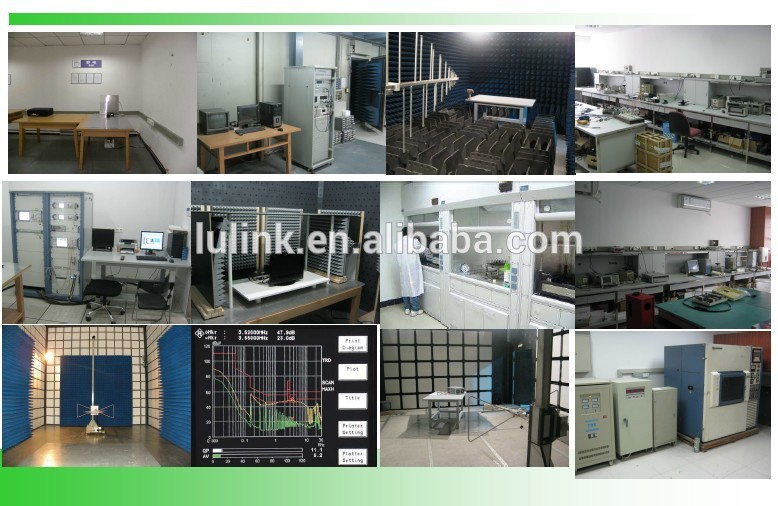

The most advanced equipments for both producing and testing, which imported from Europe and America.
The main export markets:
North America, Asia ,Western Europe , Australia , Africa ,South America ,Middle East
Our service:
1)Reply your enquiry within 24 working hours;
2)Experienced staffs answer all your questions in fluent English;
3)Customized Design is available,OEM&ODM are welcomed;
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
5)Special discount and protection of sales area will be provided to our distributor.
Shipping:
BY DHL, UPS, FedEx, TNT, EMS etc...
For mass order delivery, can be optional with terms of Exwork, FOB, CNF, CIF by air or by sea based on the buyer forwarder.
Payment:
Paypal, Escrow for samples, small qty order or urgent orders at the buyer convenience .TT, L/C, Western Union for mass orders.
30% as Deposit, 70% Balance paid before delivery
Packing:
1) Package:available according to client's request,poly bag, carton box and so on
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Lulink Electronics Technology Co. Ltd
Established in 2005 with headquarter and R&D managing department based in Guangzhou.
Lulink is an export organization specialized in developing,designing,producing network intellgent wire and telecommunication equipments,the products range consists of main categories and metal sheeting,Lulink is supported by a strong R&D team which has more than three years experience in the field of technology and integrating brilliant designers,technicians,support groups,sales and marketing organizations.We offers and accepts OEM/ODM service to customers.We have evperienced employees,respectively specialized in management,all the workers received the professional training with some years experience for their activities.

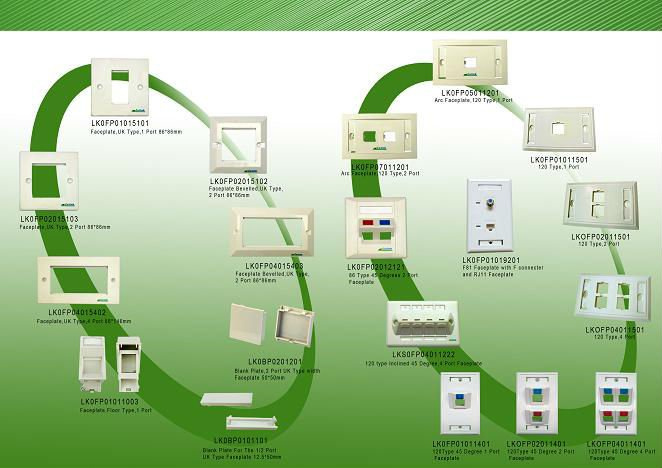

Our Main products:
