Hot Sales Humidity Controller Efr 012 (CE Certification)

Name: Hot Sales Humidity Controller Efr 012 (CE Certification)
Brand: all-electronics-online.com
SKU: 727899492
Availability: InStock
Rating: 4.8 (22 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

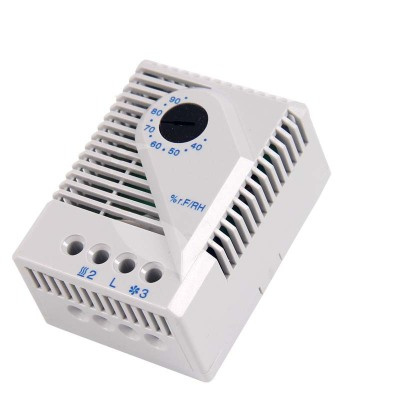

1.Humidity Controller EFR 012 (CE Certification)

2.Large setting range
3.Small Size
4.Simple to mount
5.Hight switching performance

Adjustable and pre-set relative humidity
Optical operating display(LED)
High switching capacity
Clip fixing
Temperature-compensated

The electronic hygrostat senses the relative humidity in an enclosure with electric/electronic components,and turns on a heater at the set point,helping prevent the formation of condensation in the enclosure The LED integrated in the adjustment knob is lit when the connected heater is in operation

Switch difference	5% RH(±1% RH tolerance)at 25°C,77F(50%RH)
Reaction time	approx.5sec
Contact type	change-over contact(relay)
service life	>50000cycles
max switching capacity(relay output)	240VAC 8(1.6)A 120VAC 8(1.6)A 24VDC 4A
EMC	acc.to en55014-1-2 EN61000-3-2 EN61000-3-3
optical indicator	LED
connection	5-pole terminal clamping torque 0.5Nm max tigid wire 2.5mm2 standed wire(with wire end ferrule)1.5mm2
mounting	clip for 35mm DIN rail EN50022
casing	plastic according to UL94-V-0 light grey
Dimension	64.5x42x38mm
Weight	approx 70g
operating/storage temprature	0to+60°C(+32 to +140F)/-20TO +70°C(-4TO +158F)
fitting position	vertical
max strorage humidity	90% RH(WITHOUT condensation)
Protectiion type	IP20

Art NO.	Operating voltage	setting range
01245.0-00	230VAC,50/60HZ	40 TO 90%RH
01246.0-00	230VAC,50/60HZ	65% RH pre-set
01245.9-00	120VAC,50/60HZ	40 TO 90%RH
01246.9-00	120VAC,50/60HZ	65% RH pre-set

Prod Model:	EFR012

ZHEJIANG SHUNTONG Co., founded in 1995, with more than 35000M2 manufacturing space, 650 employees, it becomes one of the leading manufacturer of industrial electric product in China. As well as one of the earliest factories in the line with nearly 20 years experience in producing and developing for electric equipment.

The Company has successfully developed and producing various categories in industrial electric products which include: Circuit Breakers, Panel Boards, AC contactors, Meters, Relays, Fuses, Control Units… As well as many other electrical accessories such as LED lighting.

Shuntong owns modern R&D center for developing electric products with full-line of high-tech moulding, manufacturing equipment and great strength of technical support, besides advanced design forces powered by first class engineering teams with super industrial computer systems. Thus, each piece of the product is fully assured with top-reliable quality, scientific and novel design as well as excellent workmanship.

SHUNTONG Electricals obtained ISO9001 quality system certification, ISO14001, OHSAS18001, CB certification; SEMKO and CE certification, etc. It is no doubt that the products are warmly welcomed not only in domestic but also in overseas market year after year.

In order to keep the leadship in electrical industry, Shuntong continuous increase and update manufacturing facilities, keep improving techniques and adopting the most advanced inspect instrument to bring our products to an even higher quality level along with impeccable & rapidly delivery service.
