Hot Sell LCD 60kVA household Single Phase Hybrid Grid Tie Solar Inverter
Main Features- The world's most cost efficient 3-phase pure sine wave inverter
- Excellent microprocessor control guarantees superior quality and reliability
- High efficiency C.R.G.O. technology with output isolation transformer
- 100% unbalance load design with lower energy loss
- Real-time auto-detectable and auto-adaptable charging design for optimized battery performance and longevity
- Generators and air conditioners compatible
- The world's shortest transfer time (≤ 1.5ms) suitable for most utilities in electronics field
- Wide input voltage range (110VAC ~ 275VAC)
- ECO mode operation for energy saving
- Built-in automatic bypass switch above 10KVA
- Compatible to mains voltage or generator power
- Auto-restart while AC is recovering
- Over-load and short circuit protection
- Cold start function
- Communication port on RS232 / RS485, SNMP adapter (optional)Application- IT device
- Data center
- Commercial facility
- Telecommunication

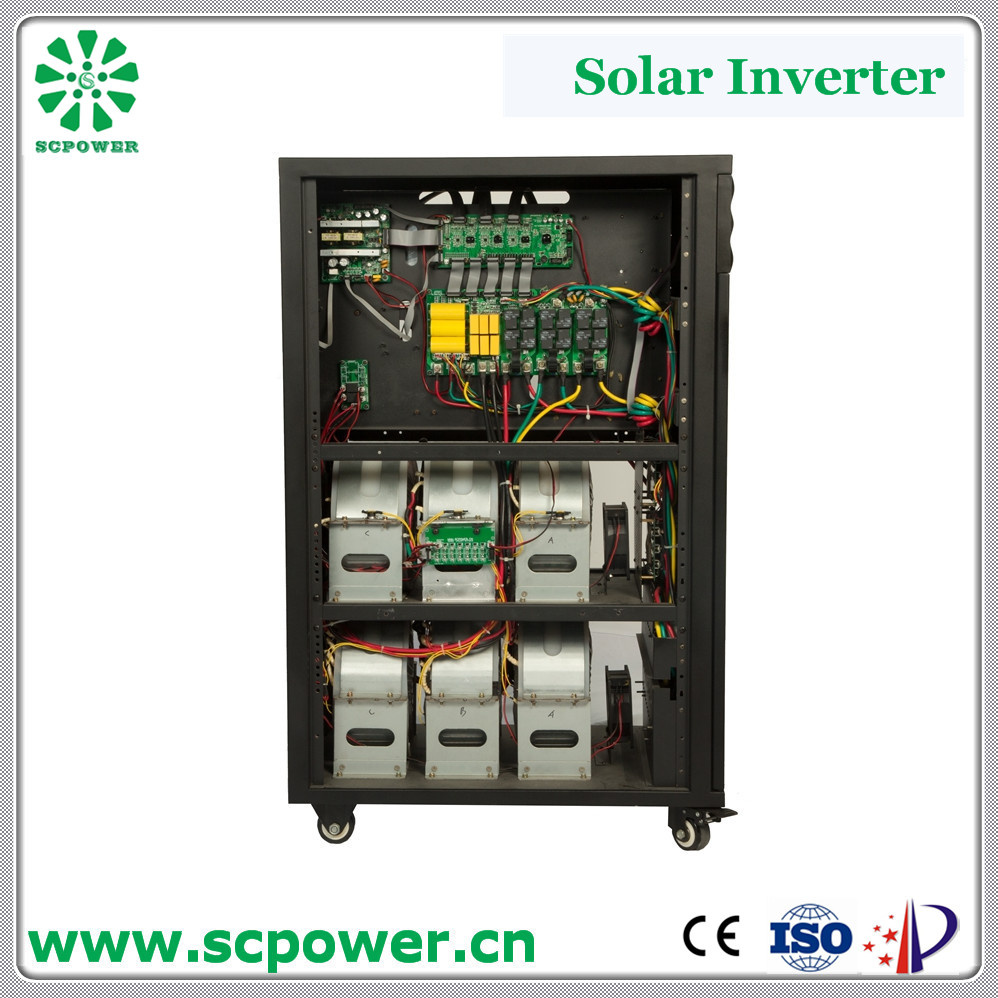

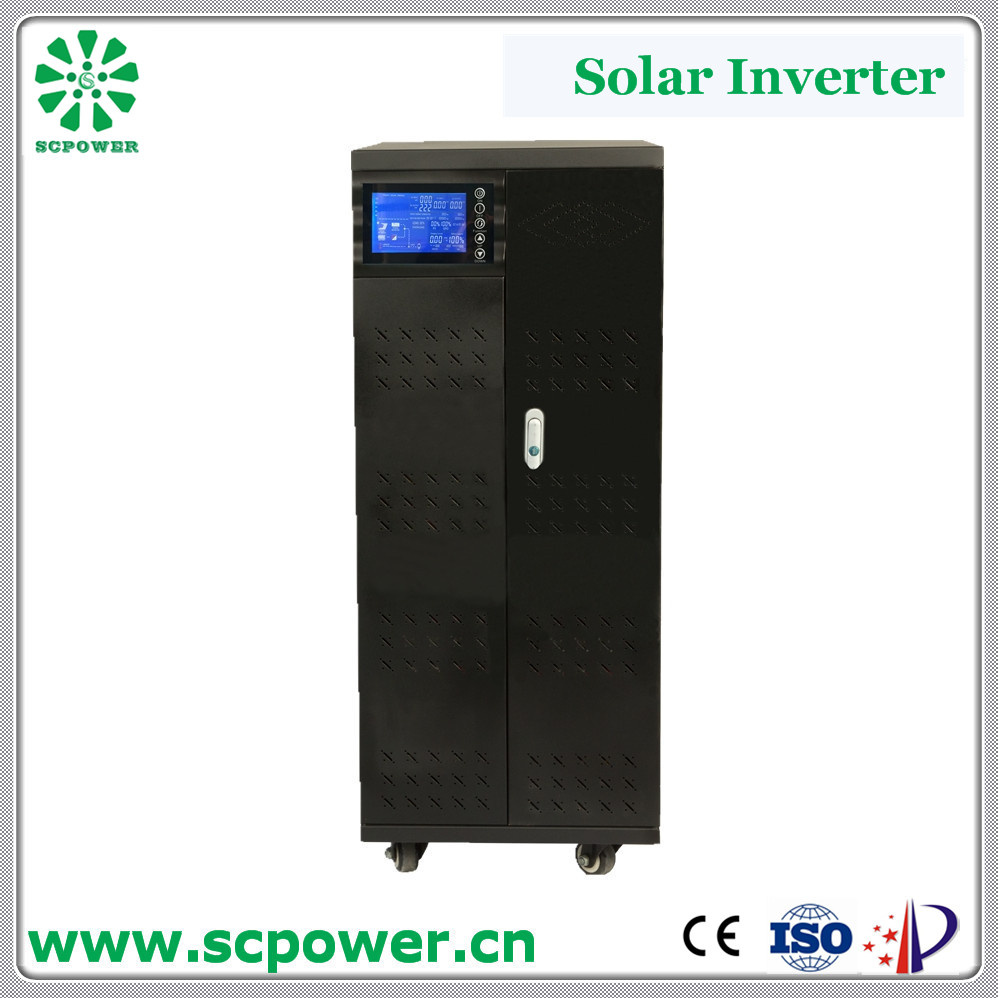

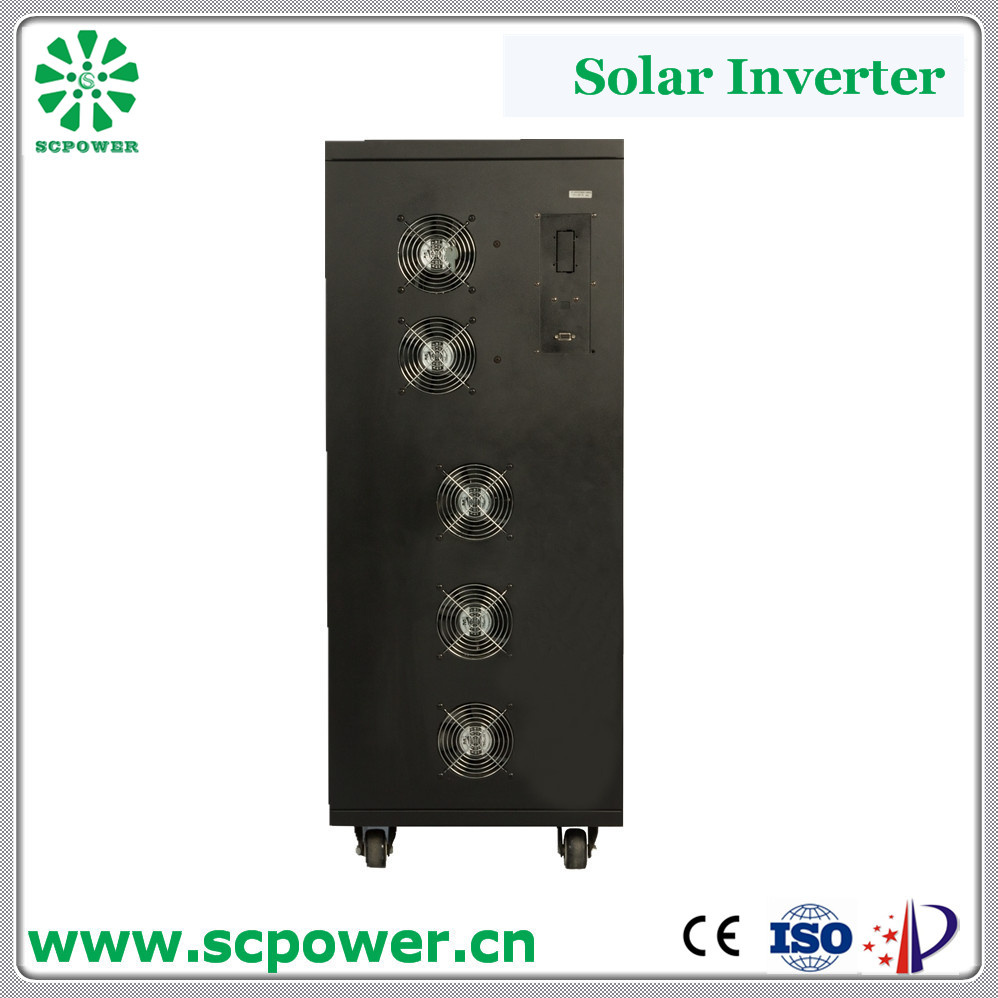

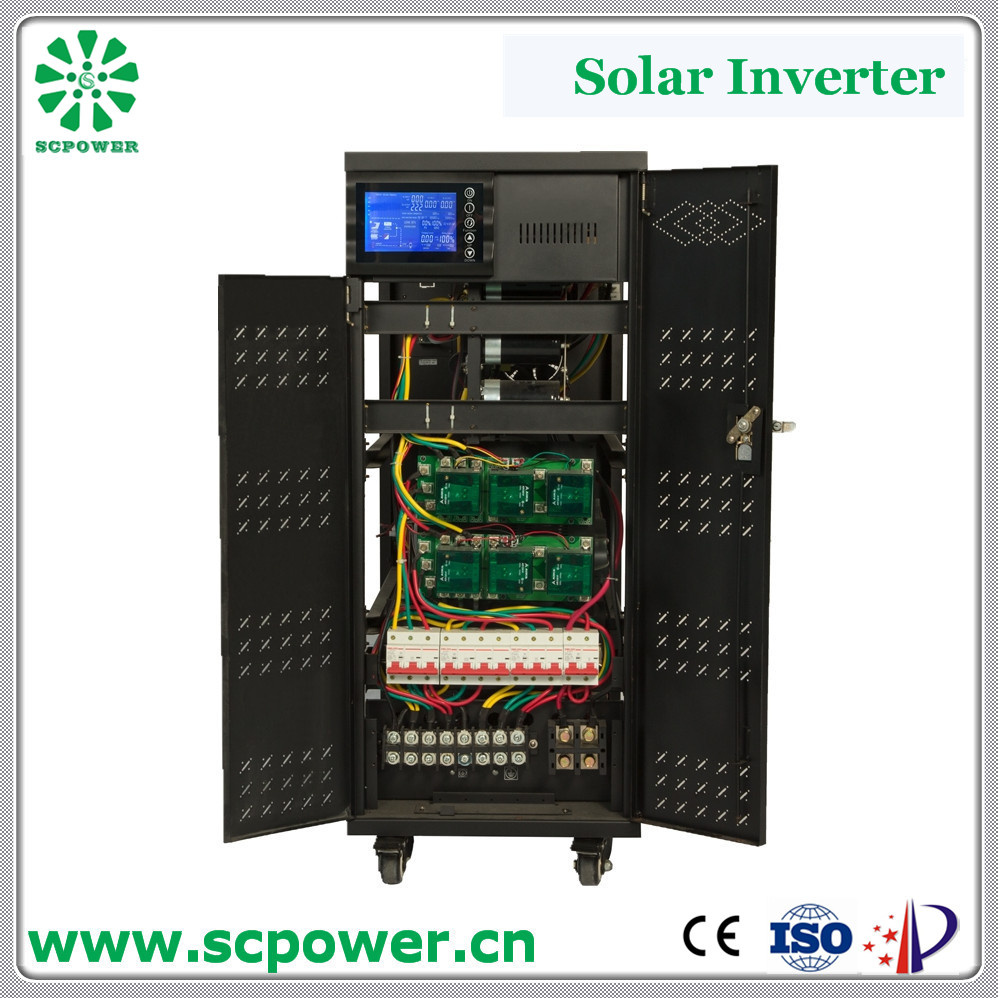

- IndustryProduct picture
Technical Parameters: | MODEL | DOCTOR 6K(L) | DOCTOR 10K(L) | DOCTOR 15K(L) | DOCTOR 20K(L) | DOCTOR 30K(L) | DOCTOR 40K(L) | DOCTOR 60K(L) |
| Phase | Single phase with ground |
| VA Rating | 6KVA/4.8KW | 10KVA/8KW | 15KVA/12KW | 20KVAVA/16KW | 30KVAVA/24KW | 40KVA/32KW | 60KVA/48KW |
| Display | LCD or graphic LED (optional) |
| Casing Material | Metal |
| INPUT |
| Nominal AC Voltage | 110/120/220/230/240VAC |
| Acceptable Voltage Range | 165 ~ 275 Vac |
| Acceptable Frequency Range | 45 ~ 65 Hz |
| Maximum Input Current | 1 ~ 20A Selectable |
| OUTPUT |
| Voltage | 220V ± 2% (Battery Mode) |
| Frequency | 50/60Hz ± 0.5% |
| Efficiency | > 99% in mains mode; > 80% in invereter mode |
| Transfer Time | AC to Battery Mode | ≤ 4ms | ≤ 1.5ms |
| Inverter to Bypas | N/A | 0 |
| Current THD | < 3% (Battery Mode) |
| Instant Reaction | When loading changes between 0 and 100%, voltage change < 3% |
| Overload capability | 110%, close the device in 30 seconds |
| 120%, close the device in 2 seconds |
| Overload at city mains, buzzer alarms |
| Waveform | Pure Sinewave |
| BATTERY |
| Standard Model | Battery Type | Lead-Acid Maintenance-Free Battery |
| Voltage | 96Vdc (8x12Vdc) | 192Vdc(16x12Vdc) | 384Vdc (32x12Vdc) |
| Charging Current | Default: 1.0A ± 10%; Max: 2.0A ± 10% |
| Typical Recharge Time | 9 hours to 90% capacity |
| Charging Voltage | 110Vdc ± 1% | 220Vdc ± 1% | 440Vdc ± 1% |
| Over Charge Ability | 10 minutes at 100% ~ 125% loading; ≥ 1 minute at 125% ~ 150% loading |
| Long-run Model | Voltage | 96Vdc (8x12Vdc) | 192Vdc(16x12Vdc) | 384Vdc (32x12Vdc) |
| Charging Current | 1~15 A (Can adjust with software and LCD control button) |
| Backup Time | Depends on Capacity and Volume of External Batteries |
| Charging Voltage | 440Vdc ± 1% (based on 32 pcs batteries) |
| PROTECTION |
| Over Load Protection | Yes |
| Short Circuit Protection | Alarms sounds continously for 20 seconds, then UPS is off |
| Input High/Low Voltage Protection | Yes |
| Low Battery Alarm | Yes |
| Battery High/Low Voltage Protection | Yes |
| Battery Anti-polarity Protection | Yes |
| High Temperature Protection | Yes |
| MAINTENANCE BYPASS |
| Type | N/A | | | Without inerruption | | |
| Voltage | | Follow the mains |
| Frequency | 50/60Hz |
| PHYSICAL |
| Standard Model | Dimension (W*D*H) | 502*500*240 mm | 642*590*280mm | 923*592*344mm | 925*630*350mm |
| Net Weight | 46kg | 67kg | 74.5kg | 82kg | 102kg | 164kg | 184kg |
| Long-run Model | Dimension (W*D*H) | 502*500*240 mm | 642*590*280mm | 923*592*344mm | 925*630*350mm |
| Net Weight | 30kg | 35kg | 42.5kg | 50kg | 70kg | 100kg | 120kg |
| ENVIRONMENTAL |
| Noise | | < 45 db (1 Meter) |
| Temperature | | 0 ~ 40ºC |
| Humidity | | 20% ~ 90% (non-condensing) |
| MANAGEMENT |
| Communication Port | | RS-232/USB |
| Intelligent Slot | | Optional SNMP card, Modbus card, and AS-400 card available |
