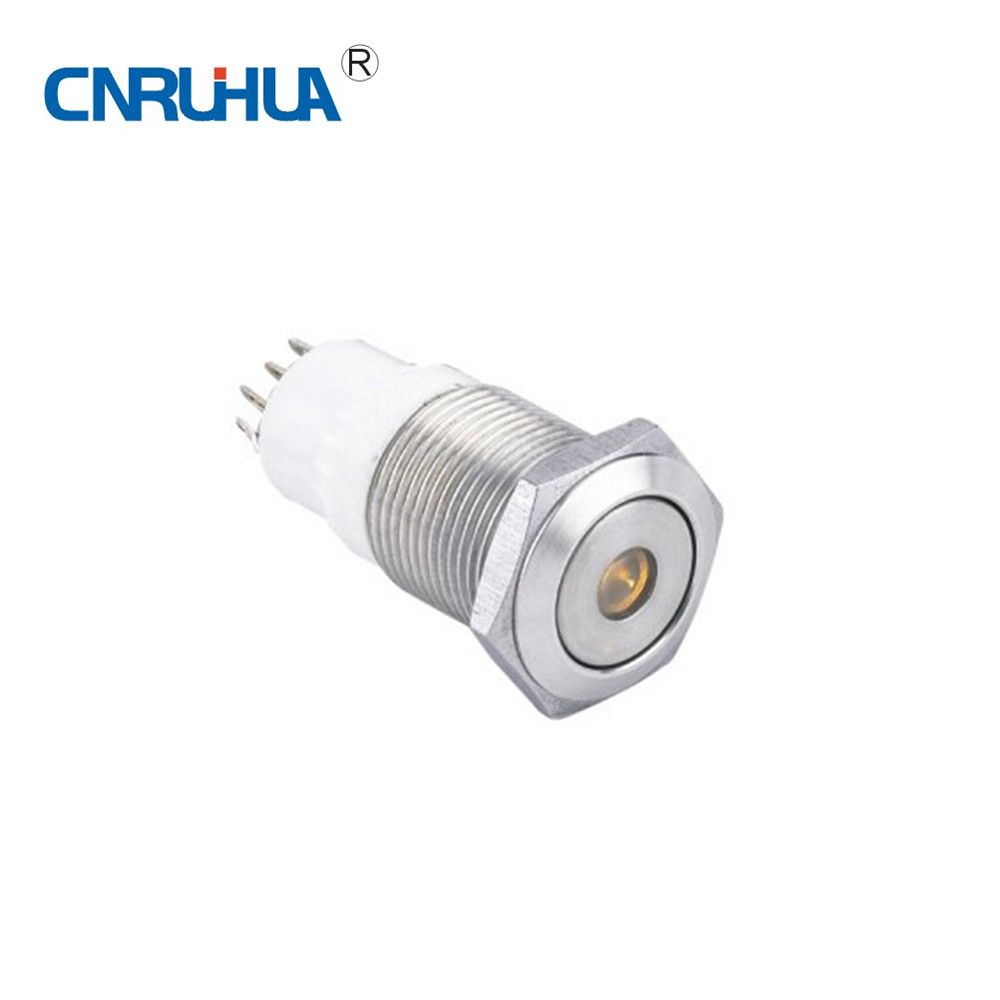

Hot Selling Stainless Gas Push Button Ignition Switch
HJS16A-D1
Overview
Mounting hole dimension: Φ 16mm
Switch rating: 3A/250VAC
Switch combination 1NO 1NC/2NO 2NC
Operating type: Self-settable /Self-locking
Head shape: Facet
Shell material: Stainless Steel/Chrome Plated brass
Bead type: Single LED/ring LED
IP grade: IP40/IP67
Bead color: Red orange yellow green blue white black
Head color: Red orange yellow green blue white black
| Specification | HJS16A-D1 | Life time | >1,000,000 |
| head shape | facet | electric life time | >50,000 |
| The tail configuration | Wiring Insert(2*0.5mm) | Panel thickness | 1~10mm |
| Switch specification | Ith:3A Ui:250VAC | nut torque | 5~14Nm |
| contact resistance | ≤50mΩ | Operating force | 2.5~4N |
| insulation resistance | ≥1000mΩ | operating distance | ≈2.8mm |
| insulating strength | 2000VAC | IP Grade | IP40/IP67 |
| Working temperature | -20~+50 °C |
| material | contact | Silver alloy | Bead specification | type LED | single LED
ring LED
|
| key | stainless steel/
Chrome Plated brass |
| shell | stainless steel/
Chrome Plated brass | rated voltage | 6V/12V/24V/
110V/220V |
| Pedestal | PBT | Bead color | Red orange yellow
green blue white |
| RoHS | Customized | bead life time | 40,000 hours |
About US
YUEQING CITY RUIHUA CABINET WHOLE SET EQUIPMENT is a professional manufacturer of low voltage electrical products in South China.
Our company is committed to design, production and sale of a series of ozone generator, air pump, PLC, rotary encoder, HMI, sensor, switches,
lights, meter and much more other electrical components. And exports various type of electrical appliances to different countries.
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: How long are you company manufacture the products?
A: We are established in 2005 year.
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. CNRUIHUA people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gotten through CE, RoHs standard.
About Payment
we provided Trade Assurance service
we also accept payment by T/T; Western Union, ESCROW, Paypal, money gram
We Provide OEM Services
We can do OEM for your brand (print your logo ). And we can make product according to your design .The processing method ,the size ,the quality etc ,will all follow your requirement .
We do OEM for a lot of the world's leading brands ,we have rich experience in production ,we have molds in variety ,and we have products strict quality control system.
We have a strong r&d team, can according to the sample you provided, manufacture the same product as your sample.
Yueqing Ruihua Cabinet & Whole Set Equipment Co., Ltd. which is established in 2005. The company is located in Wenzhou, which sites on the coast line of Zhejiang province. Wenzhou is a modern and highly civilized city, famous for healthy industry environment. At the same time, the convenient transportation system will as well be a great advantage for any project involving international shipping and delivery.
Our company is a specialized manufacturer with over 20 series and more than 2, 000 specifications, and exports various type of electrical appliances to different countries, such as Ozone genertator & air purifier, distribution boxes, wall sockets, floor sockets, PLC, encoders, inverters, motors, HMI, sensors, switches, panel meters, and other electrical components.
Today, Ruihua's electrical products have already been distributed to Russia, Europe, South America, and the Middle East. We guarantee the high standard of our products, so as reliability of producing and supplying products. Our products have been approved by CCC, CE, UL and RoHS, certificates. The company has also been recognized by ISO9001. with the years successfully experiences, we believe, we can not only produce and supply the good products, but also with professional services and efficiency.
We value the businesses in real earnest. Building a highly trust worth "Zhejiang merchant culture" is our principle. We wish to build up a long-term business relationship both domestically and internationally, and expect to trade with the clients on the basis of good credit and mutual benefit.
