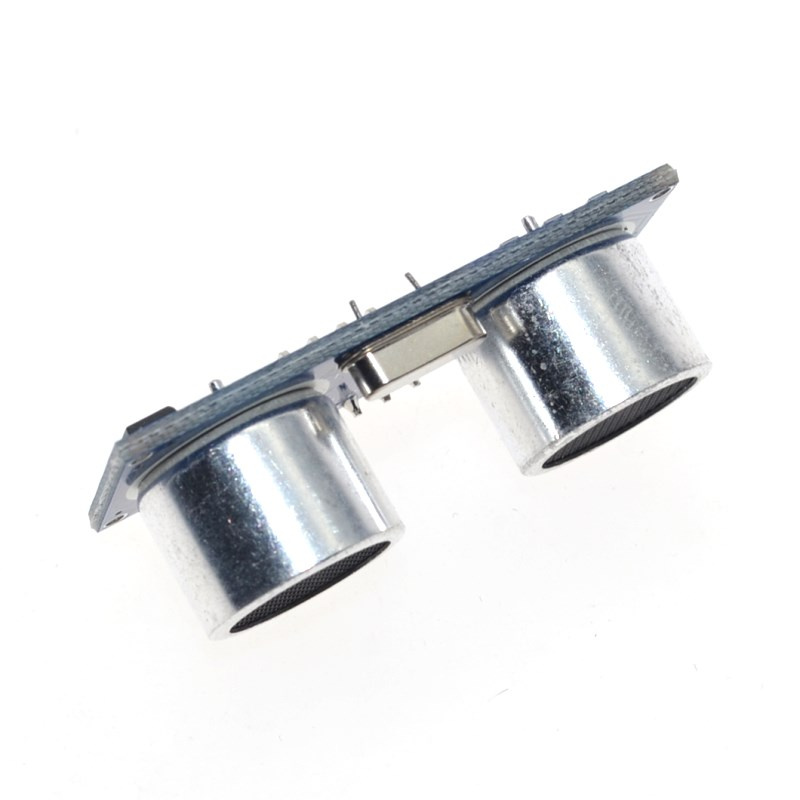

Hot Selling Ultrasonic Sensor Module Hc-Sr04 for Arduino Uno R3 Mega2560
| Price: |
US $ 0.72-0.85/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Module main technical parameters:
1. Working Voltage: 5V(DC)
2. Static current: Less than 2mA.
3. Output signal: Electric frequency signal, high level 5V, low level 0V.
4. Sensor angle: Not more than 15 degrees.
5. Detection distance: 2cm-450cm.
6. High precision: Up to 0.3cm
7. Input trigger signal: 10us TTL impulse
8. Echo signal: Output TTL PWL signal

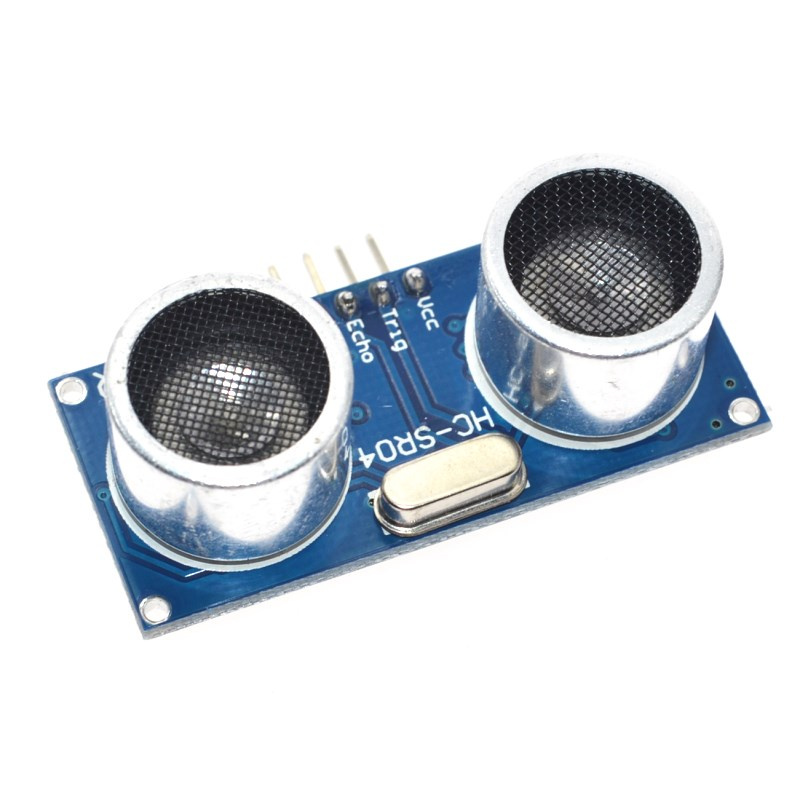

Mode of connection:
1. VCC
2. Trig(T)
3. Echo(R)
4. GND
Specifications:
This module performance and stability, accurate measurement of distance, SRF02 comparable ultrasonic
Ranging module. Module of high precision, blind area (2cm ) super close, stable range is the success of this
Product to market the strong basis!
Main technical parameters:
1: Voltage: DC5V
2: Static current is less than 2mA
3: Output: High4: Low level output: 5V0V
5: Induction angle: Not more than 15 DEG
6: Detecting distance: 2cm-450cm
7: High precision: Up to 3mm
Connection mode, VCC, trig ( control side), echo ( receiver ), GND wire
This product use: A control orifice with a 10US above high level, can be in the receiving port to wait for high level output.
The output of the timer can be opened, when the orifice is low we can read the timer value, this time for the ranging time,
We can calculate the distance. So continuous cycle test, can achieve your mobile measurement value ~ ~
Module working principle:
(1) using IO trigger location, to at least10us high level signal;
(2) module to automatically send8 40kHz square wave, to automatically detect whether a signal return;
(3) a return signal, through the IO outputs a high level, high level for a time is
Ultrasonic wave from the transmitter to the return time. Testing distance = ( high level time * speed of sound (340M/S ) ) /2;
