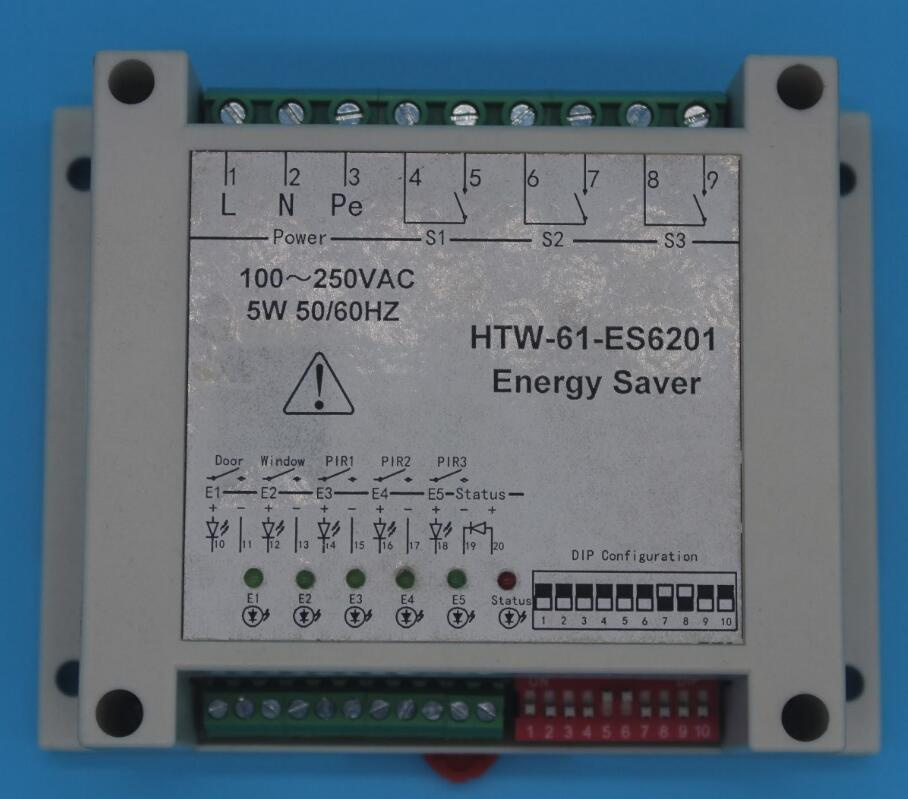

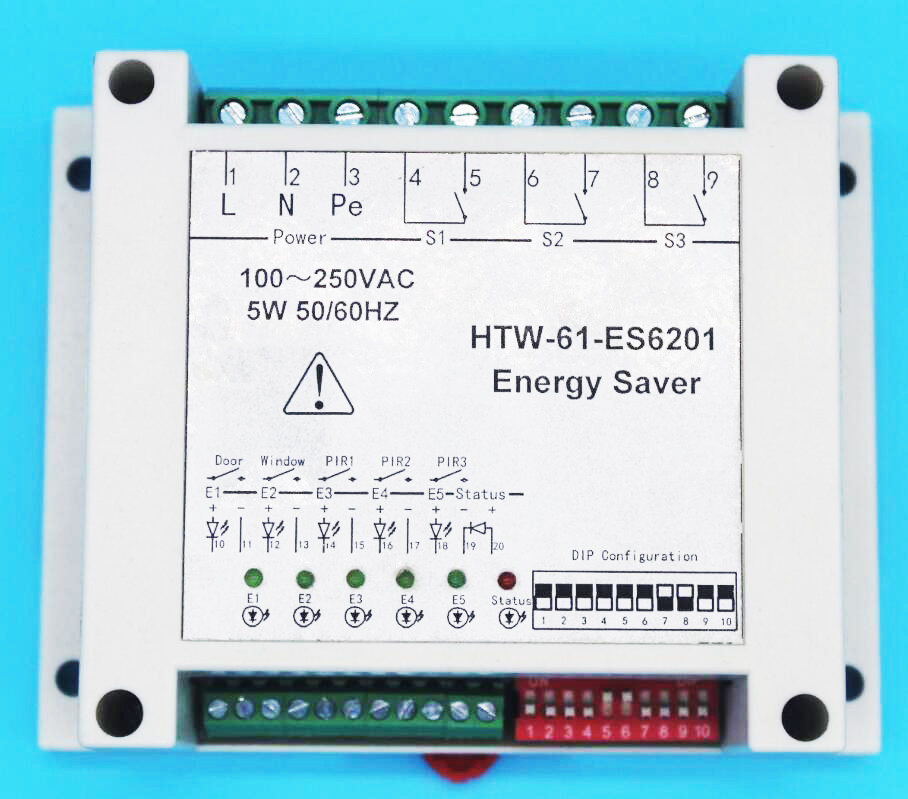

| Prod Model: |
HTW-61-ES6201 |
| Power Supply: |
100~250VAC, 50/60Hz 5W |
| Inputs: |
1 Door Key-Card, 1 Window Card, 3 PIR Sensors |
| Outputs: |
S1, S2, S3 with Respectively Delay Timing |
| Dimension: |
115*90*40mm |
| Temperatuer Range: |
5~45 Degrees |
| Installation: |
Rail DIN 35 |
| Protection IP: |
20 |
| Output Type: |
No/Nc Configurable |
Product Description
GeneralKey Card Smart Hotel Room Access System Controller Energy Saver Solutions (HTW-61-ES6201) is designed to control electrical consumption by detecting occupied/unoccupied presence, in order to connect/disconnect the air conditioning equipment and lighting automatically when the customer accesses or leaves the room.PIR presence detector operating algorithmHTW-61-ES6201 has 1 input (E1) for a magnetic room contact placed on the doorframes of the room;
1 input (E2) for a magnetic window contact placed on the window frames.
3 inputs(E3,E4,E5) for PIR presence detectors.
When the door of the room is open, the energy saving system is activated instantly, and feed the following three outputs:

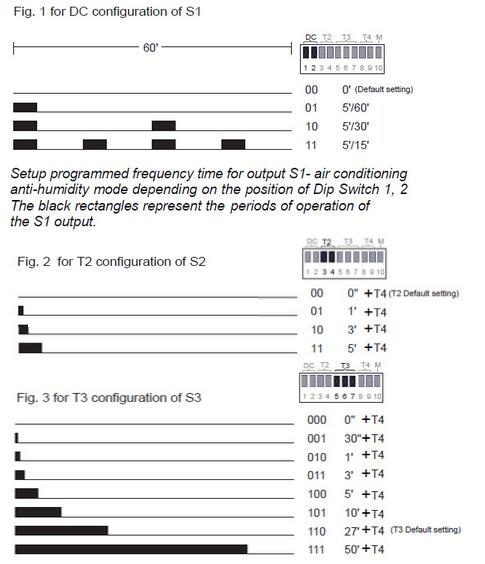

S1-Air-conditioning output with anti-humidity mode;
S2-Air-conditioning/Lighting output with delay time;
S3-Lighting output with delay time;
Once the door is closed, the system will try to determine if there is movement within 3s~T4 in the room
Magnetic window contact operating algorithmIf a magnetic window contact switch is connected to the terminals 12-13, when the contact is open, the output S1 will disconnect after 1min, until closing window contact again.

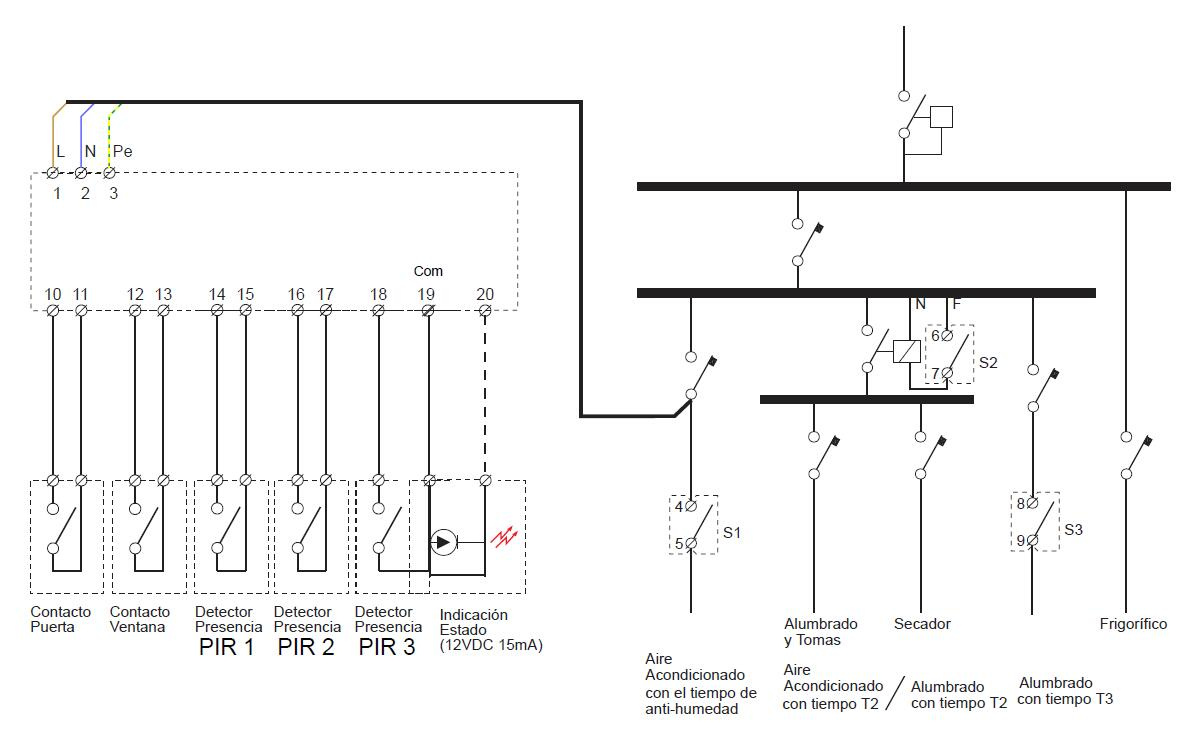

Typical Wiring Diagram
