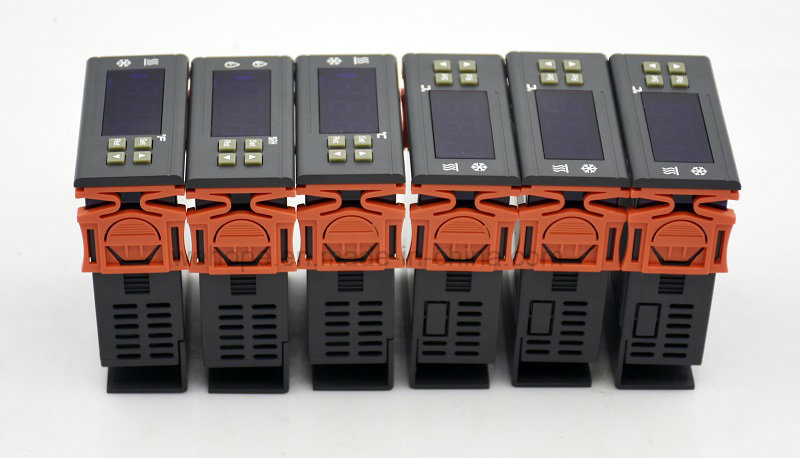

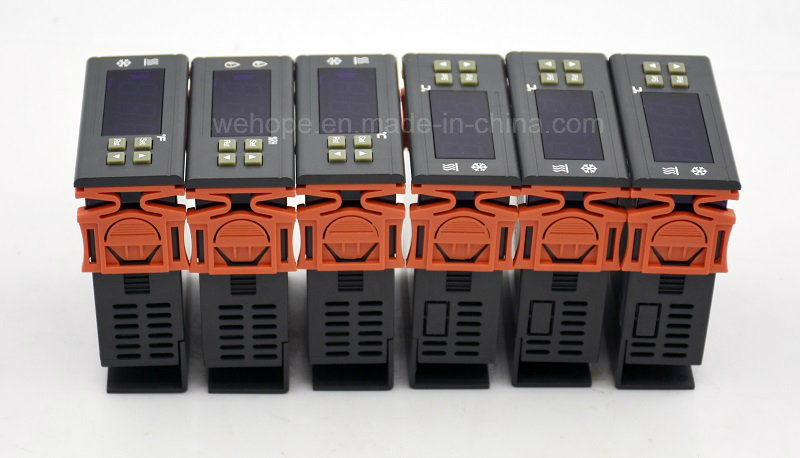

HP1001 LED Display Electronic Humidity Controller Temperature Control Device

Name: HP1001 LED Display Electronic Humidity Controller Temperature Control Device
Brand: all-electronics-online.com
SKU: 838125435
Availability: InStock
Rating: 4.9 (99 reviews)

Price:	US $ 9.5-11.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

AC220V Digital Temperature Controller HP1001

Description:
This digital humidity control controller HP1001 is with wide humidity measuring range and controlling range, comes with a humidity controller sensor probe with cable and a temperature sensor probe with cable.

Technical parameters:
A. 1.Working Voltage: AC230V ; Power consumption: ≤2W
2.Temperature Measure Range: -50ºC~110ºC ;Measurement error:±0.5ºC
3.Temperature Control Range: -50ºC~110ºC; Temperature Control accurancy: 1ºC;Resolution: 0.1ºC
   4.Temperature Probe: NTC 25ºC=10K B3435 ±1%(1.5 meters long,regardless of positive or negative)
   5.Load Outpu: 1 Relay, Normally open contact 10A/250VAC
   6. Working Environment: Temperature:-40ºC~85ºC ; Himidity: 90%RH without condensation
   7. Overall Size: 75(W)x35(H)x82(D)mm
   8. Hole Size: 71(W)x29(H)mm

B. Indicator Status Description

Indicator	The light is always on	The light is not shine	The light is blinking
smoke	Heating operation status	Heating operation stopped	Reach heating output conditions,but in a delayed state
Snow	Cooling operation status	Cooling operation stopped	Reach cooling output conditions,but is a delayed state

Prod Model:	HP1001
Working Voltage:	AC230V
Frequency:	50/60Hz
Hole Size:	71X29mm
