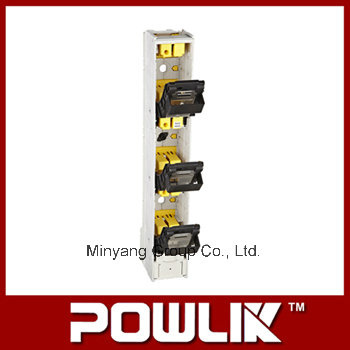

Hr 630s Series Vertical Strip Type Fuse Switch Disconnector

Name: Hr 630s Series Vertical Strip Type Fuse Switch Disconnector
Brand: all-electronics-online.com
SKU: 772552065
Availability: InStock
Rating: 4.6 (124 reviews)

Price:	US $ 10.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HR-630S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	160A-630A
Protection Degree:	IP30
Uimp:	10kv
Ui:	1000V
Breaking Capacity:	High
Type:	Resettable Fuse
Usaga:	Low Voltage
Standard:	IEC

Product Description

HR 630S Series Vertical Strip Type Fuse Switch Disconnector

1.Application

HR Vertical series strip type fuse switch disconnector is integrated with initiating current transformer and fuse switch.

The current grade is 160A-630A, rated frequency 50Hz/60Hz. This strip ype fuse switch disconnector provide reliable overload and short-circuit protection for industrial plants or infrastructure, and are suitable for use in various industries,it has been widely used for distribution facility, such as cable branch box, box transformer,factory, and community etc. It will be a trend in the field of power distribution in the future.

This product is in coformity with standard, GB14048-3, IEC60947-3.

2.Technical

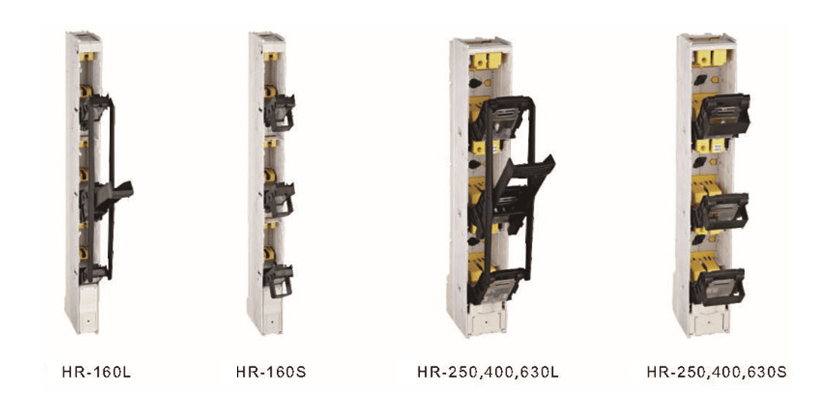

Type of fuse switch

HR160

HR250

HR400

HR630

415,500,690

Ith

160

250

400

630

50/60

1000V

Uimp

10kv

Use classes

415V

500V

690V

415V

500V

690V

415V

500V

690V

415

500V

690V

AC23B

AC22B

AC21B

AC23B

AC22B

AC21B

AC23B

AC22B

AC21B

AC23B

AC22B

AC21B

Degree of protection

IP30

fuse size

415V

500V

690V

415V

500V

690V

415V

500V

690V

415V

500V

690V

160

100

250

200

400

350

630

500

Wire specifiations

70mm²

120 mm²

240 mm²

300 mm²

The default connection mode

Pressure

V-clamp

v-clamp

The other connection mode

Screw&cable lug

Installation of busbar

Punched rectangle busbar;Unpunched rectangle busbar ;Other

Fixed way

Screw;Hook;Other custom accessories
