Huaxin De-Icing System for Satellite Antenna
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
HXDIS |
| Warranty: |
1 Year |
| Enterprise Nature: |
Manufacturer |
| Customized: |
Available |
| Usage: |
De-Icing System for Satellite Antenna |
Product Description
Brief Introduction of De-icing SystemSatellite Antenna De-icing System consists of Reflector Heater (Half and Full), Feed horn Heater and Temperature Control Unit. There are two kinds of Reflector Heater System: Hot-Air De-Icing and Electric De-icing, and customers can make choice according to actual situation. Here we take 5.36m RxTx antenna for example: 1. SummaryThis De-icing System belongs to electric heating de-icing system. Its rationale is that laying electric heating material, high-temperature resistant thermal insulation material successively, when power on to make it start working, the heat produced by electrical heating element will pass to the antenna surface, which removes snow and prevents it from storing. The advantages of such system are fast heating speed, uniform heating and slow heat dissipation, which can achieve good de-icing results. 2. Technical Specification2.1 1/2 Main & Sub Reflector De-icing SystemOperating voltage: 220V±10% 50HzOperating power: 10KW (5.36m)Snow melting time: <5min (Snow cover of antenna surface, 3mm)<100min (Snow cover of antenna surface, 60mm) 2.2 Feed De-icing SystemOperating voltage: 220V±10% 50HzOperating power: 1000WSnow melting time: <3min 2.3 Drive UnitOperating voltage: 380V±10% 50HzOperating temperature: -12ºC ~ +50ºC 2.4 Remote Control UnitOperating voltage: 220V±10% 50HzOperating power: 100WTemperature setting range: 5ºC~18ºCTemperature display resolution: 1CCurrent display resolution: 1A 2.5 Environmental specificationIndoor temperature: +5ºC ~ + 35ºCIndoor humidity: ≤90%Outdoor temperature: -50ºC ~ +50ºCOutdoor humidity: ≤98% 3. Composition and Configuration

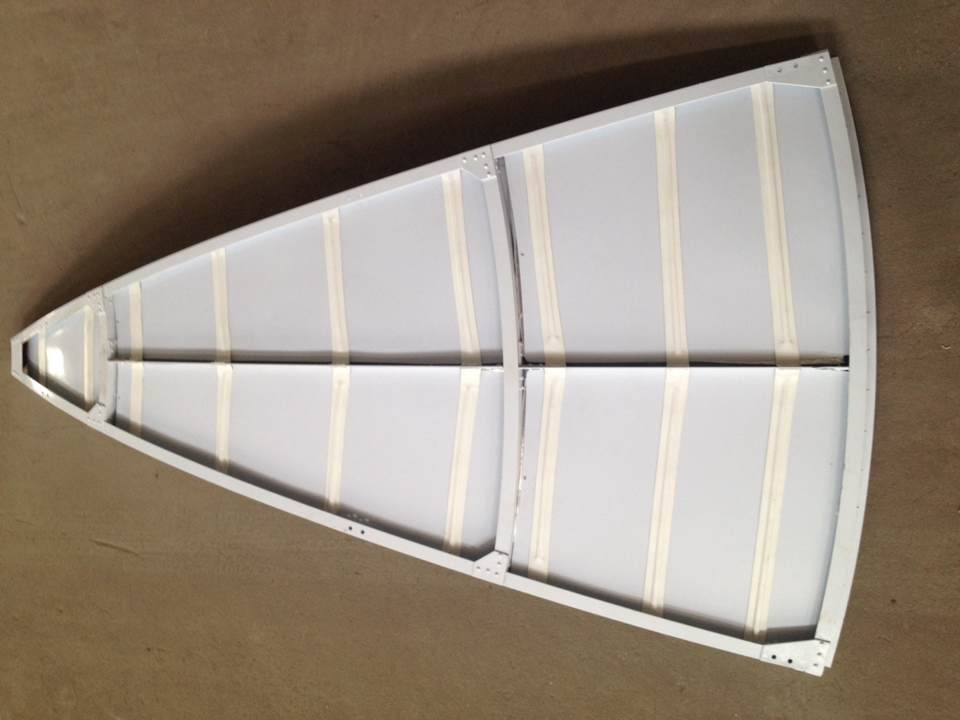

The whole De-icing System is composed of Antenna Main & Sub Reflector De-icing Device, Feed De-icing Device, Drive Unit and Remote Control Unit.3.1 Reflector De-icing DeviceRegarding 5.36m satellite earth station antenna, our company applies special cover plate technology, which has firm structure and nice appearance. The way of heating unit panel is convenient for maintenance or replace in the future. 3.2 Feed De-icing Device It is composed of blower, heating rod, feed blowpipe and control unit (connected as a whole together with Main & Sub Reflector De-icing Device's Control Unit). 3.3 Drive UnitDrive Unit is mainly composed of control module, leakage protection device and so on. Supply 380V power, and then the electricity is assigned to the heating units of Reflector De-icing Device's two partitions (as shown in Figure 3) as well as Feed De-icing Device through leakage protection device; every drive unit is supplied 380V; control module forward the signal of remote control end to the heating units of every partitions. Drive Unit has the function of leakage protection and overcurrent protection. It will cut off the circuit automatically when there is electric leakage in the heating units of Reflector De-icing Device's two partitions or Feed De-icing Device.
Company Introduction
Established in 1985, HUAXIN ANTENNA is a professional manufacturer which is specialized in all series of Satellite Earth Station Antennas, Carbon Fiber Antennas and Customized Antennas with size from 0.35m to 16.0m. Keeping adequate inventory and providing professional customized service, HUAXIN is able to meet clients' emergency requirements and satisfy clients' individual needs.
HUAXIN products have achieved ISO9001: 2008 Quality Management System Certification, some are type approved by Asiasat, APT, China Satcom, and some have Intelsat, Eutelsat, SES, and FCC certificates. Integrated with research, development, manufacturing and sales, HUAXIN has developed into one of the leading companies in the market with excellent quality and competitive price domestically and internationally.
Manufacturing Ability
Factory covers an area of 395000 sq FT, which owns workshop area of 215300 sq FT and research & development center area of 54000 sq FT.
Professional R&D center and test center (antenna feed technology lab, microwave test center, antenna far-field test center)
Independently design, develop and manufacture all kinds of antenna mould and antenna parts, which can effectively reduce the cost and shorten the lead time.
Excellent Production Capacity - 2 or 3 Shifts, able to operate big projects in short time; Keep a large stock of goods; Prompt and short period of delivery.
Precise CNC machine, dedicated tooling equipment:
Structural component processing equipment: CNC Machine Centre, CNC Gantry Milling Machine, CNC Boring Machine, CNC Lathe, CNC Vertical Drill Machine, CNC Cutting Machine, CNC Bending Machine
Panel processing equipment: Panel stretcher, Large-tonnage Hydraulic Machine, Autoclave
Tooling: Single Panel Riveting Tooling, Reflector Assembly Tooling
Surface Accuracy Measuring Equipment: MPS/S Single Camera Industrial Photogrammetric System
Electric Performance Test Equipment: Scalar Network Analyzer, Scalar Network Signal Source, Spectrum Analyzer, Signal Source
Surface Treatment Equipment: Shot blasting machine, Surface Grinding Machine, Professional Clean Spray Room
