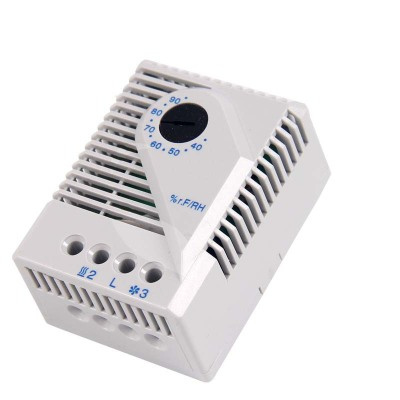

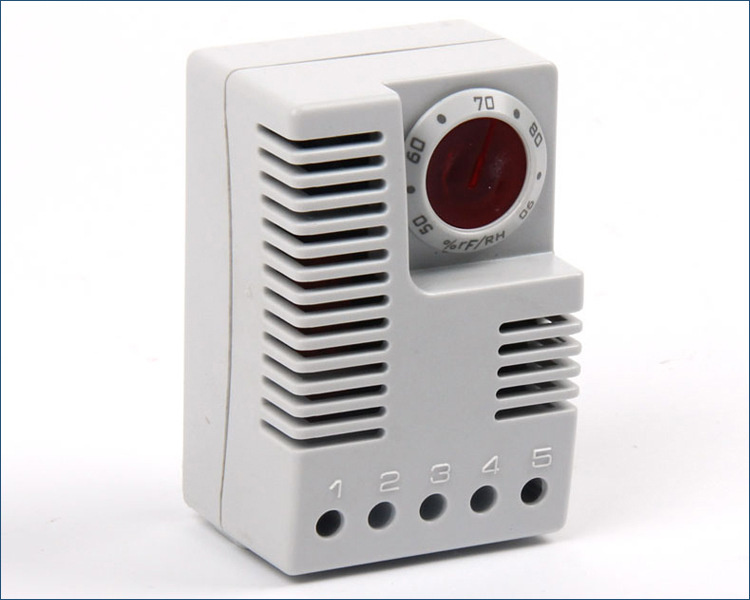

Humidity Controller Efr 012 (CE Certification)

Name: Humidity Controller Efr 012 (CE Certification)
Brand: all-electronics-online.com
SKU: 727899422
Availability: InStock
Rating: 4.9 (28 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EFR012

Product Description

thermostat thermostat heating element bimetal thrmal cutout FTS011 FTO011/FTS011
1. Small size         thermostat heating element bimetal thrmal cutout FTS011
2. Default temperature settings      thermostat heating element bimetal thrmal cutout FTS011
3. Easy to install         thermostat heating element bimetal thrmal cutout FTS011
4. High switching tolerance         thermostat heating element bimetal thrmal cutout FTS011

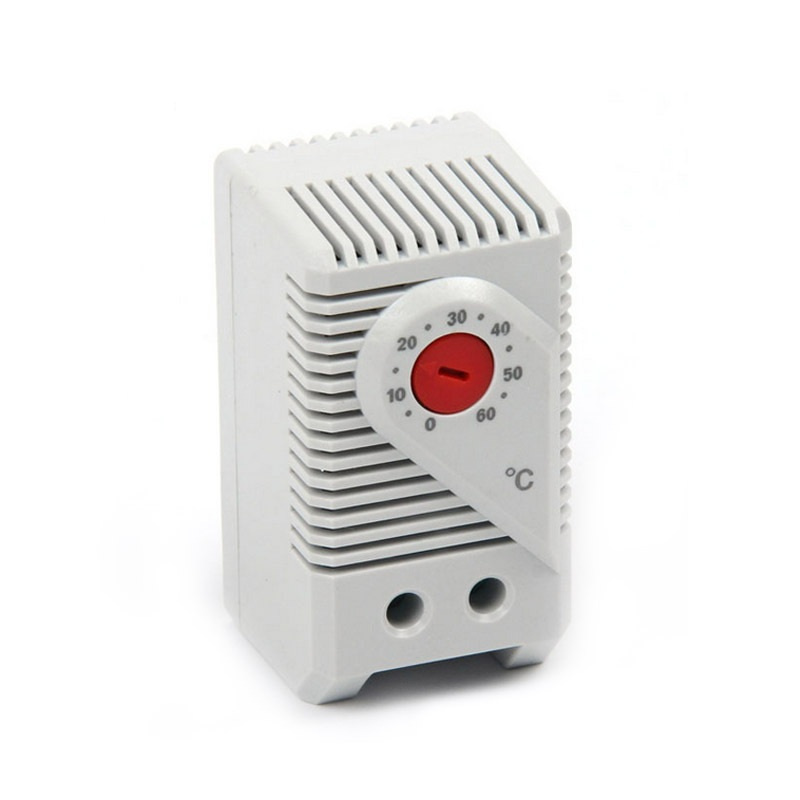

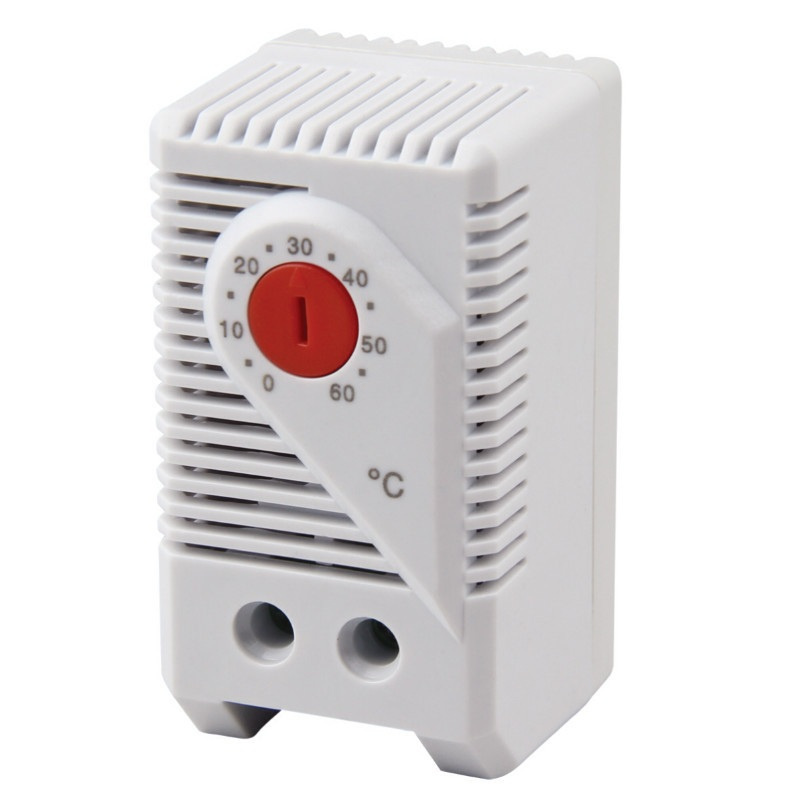

Tamperproof (Pre-set) Thermostat FTO 011/FTS011
Contact breaker / NC (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value. The contact opens when temperature is rising.

Technical Data:

Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 20mΩ
Service life	> 100,000 cycles
Max. Switching capacity	250V AC, 5 (1.6)A
	120V AC, 10 (2)A
	DC 30W
Max. inrush current	AC 10A
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	2-pole terminal for 2.5mm2,torque 0.8Nm max.
Mounting	clip for 35mm DIN rail, EN 60715 or for exit filter EF 118 Series
Casing	plastic according to UL94 V-0, light grey
Dimensions	47 x 33 x 33mm
Weight	approx. 23g
Fitting position	variable
Operating/Storage temperature	-20 to+80°C(-4 to +176°F) /-45 to+80°C(-49 to +176°F )
Protection type	IP20
