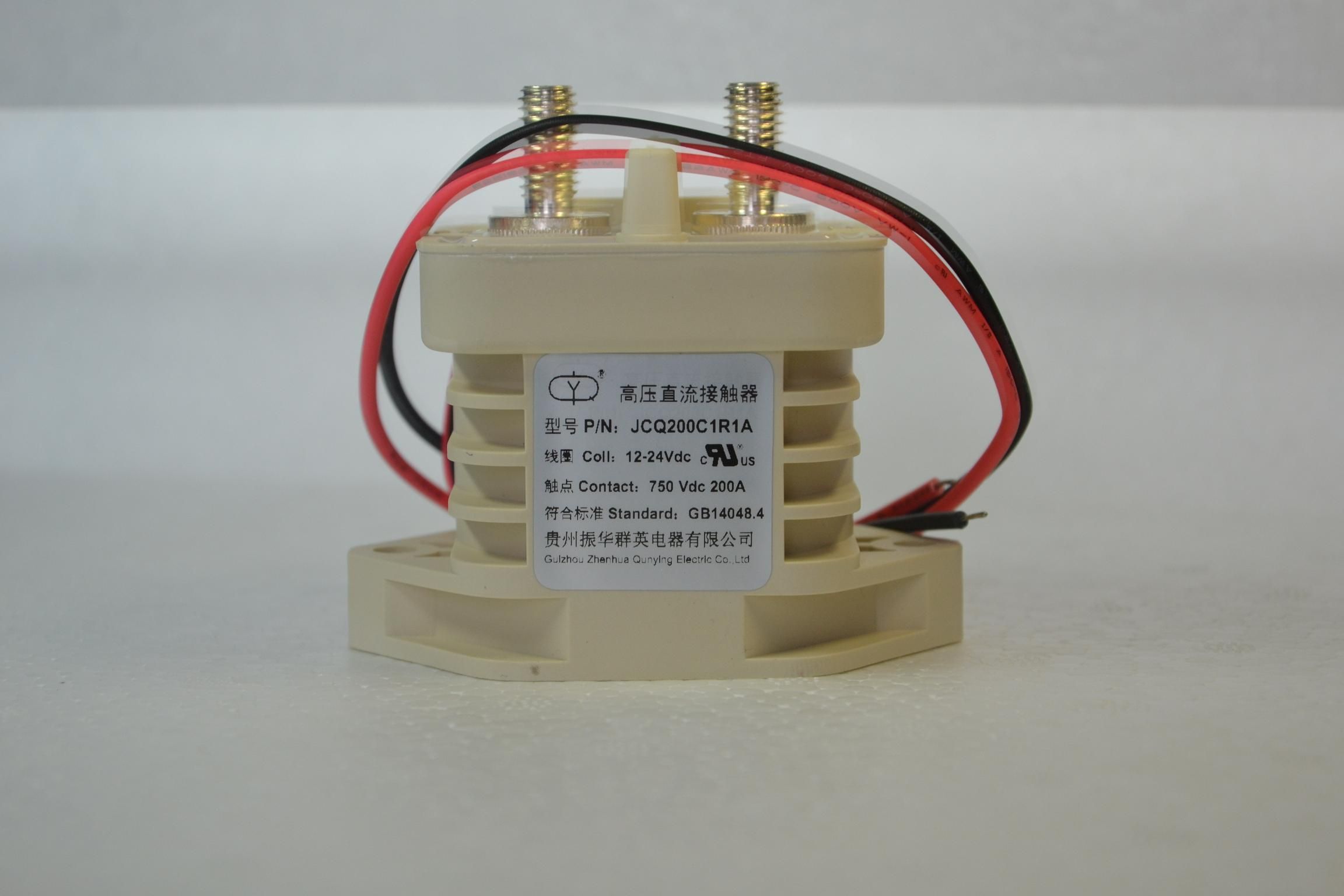

Hv DC Contactor

Name: Hv DC Contactor
Brand: all-electronics-online.com
SKU: 788038935
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JCQ200

Product Description

PART ONE: Application Area
The contactor applications include battery
power, the inverter capacitor pre-charging, the DC
power control, circuit protection, and other electric
vehicles power control, while widely used in
uninterruptible power supplies and other
electronic control system.
PART TWO:Product Facts
1. High current and high voltage capability
Epoxy encapsulated contacts room filled with
inert gas, combined with the magnetic arc
blow, can cut off 900VDC load.
2. Compact structure and Low noise
As a result of the contacts sealed in inert gas
room, even if the contact gap is very small, but
also to ensure efficient and safe cutting, low
operating noise.
3. Coil Economizer
1.7W hold power @12VDC and it limits back
EMF to 0V.models.
4. Small Arc Gap
Non-arc gap structure, so the volume can be
very small.
5. Safety
Arc is sealed in a space to ensure that
products with safety.
6. Reliable Contacts
Contact unit is sealed in an inert gas, so
regardless of the environment, can maintain a
stable contact resistance.
7. No special installation required
Movable parts have a light weight and large
reaction force, so affected by gravity is small.
There are two installation methods sides and
bottom, no special requirements on the installation
location..
8. Multiple Uses
Standard applications include: Battery
switches and standby equipment, DC voltage
power control, electrical safety protection and so
on.
9. Compliance with EU RoHS directive (2002/95/EC)
10. Load Polar Conditions
Loaded with two kinds of polar and non-polar.
PART THREE:Part Numbering System
Meaning of the code
typical part number JCQ200 C 1 R 1 A
"JCQ200"= 500A+,12-900VDC contactor
Contact Form:
"C"=Normally Open , Polarity required contacts;
"D"=Normally Open with aux. contacts, Polarity required
contacts;
"E"=Normally Open, No Polarity required contacts;
"F"=Normally Open with aux. contacts ,No Polarity
required contacts;
Coil Voltage:
"1"=9-36VDC; "2"=32-95VDC; "3"=48-95VDC
Coil Wire Length:
"R"= 14.96 in(380mm); "T"=5.9 in(150mm)
Coil Terminal Connector:
"1"=None; "2"=Yazaki7282-5558-10 male,7114-4102-02,7158-3030-50+ red is pin 2
( T length only ); "3"=Molex Mini-fit Jr, 2 Ckt, Female 18-24,P/N 39-01-2020 &
39-00-0060+red is pin 1(R length only)
Mounting & Power Terminals:
"A"= Bottom Mount &Male 10mm×M8 Terminals
Note: Customers can choose different Installation methods and coil leads.
