HVAC Inline Hydraulic Water Flow Switch (HTW-AFS)

Name: HVAC Inline Hydraulic Water Flow Switch (HTW-AFS)
Brand: all-electronics-online.com
SKU: 806513755
Availability: InStock
Rating: 4.8 (23 reviews)

Price:	US $ 14-18/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HTW-AFS
Resistence Load:	AC 125 V(5A) /AC 250 V( 2.5A)

Product Description

General

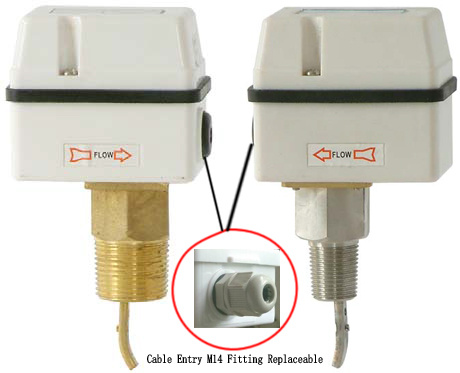

HVAC Inline Hydraulic Water Flow Switch(HTW-AFS)
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.

Features

>>Flow control of water and normal media
>>>>Renovated SPDT micro switch ensures the reliable switch function
>>>>15(8A) 250VAC switch rating
>>>>IP65, class I enclosure
>>>>Setpoint adjustable
>>>>Stainless steel paddle
>>>>Brass/S.S material
>>>>Max. liquid temp 120ºC
>>>>Max. working pressure:1.5Mpa

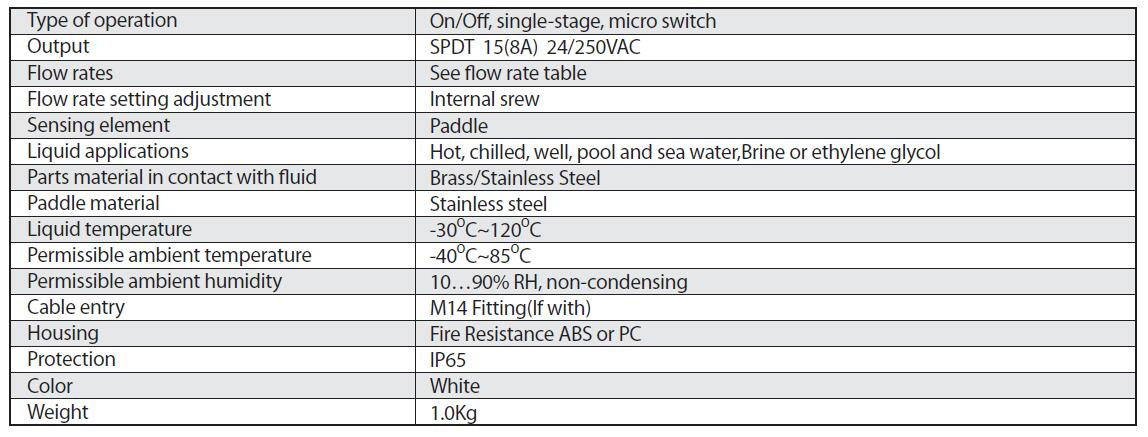

Specification

Type of operation On/Off, single-stage, micro switch

Output SPDT 15(8A) 24/250Vac

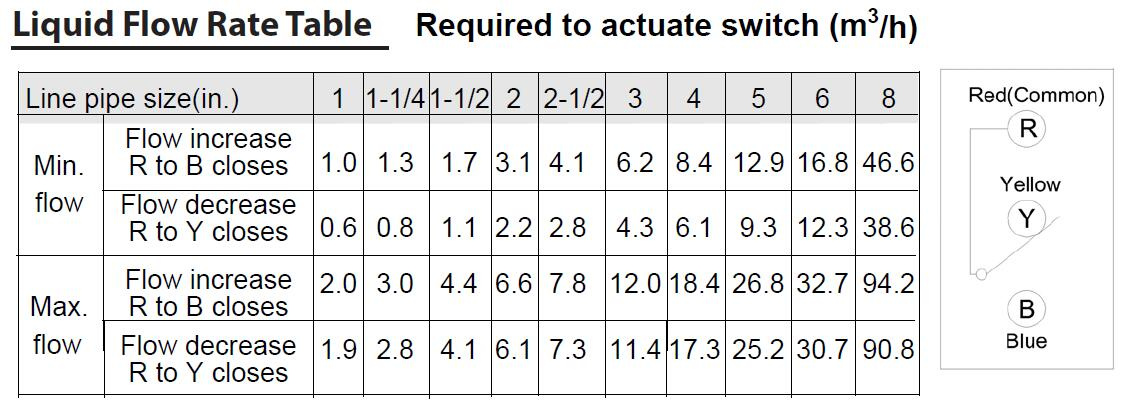

Flow rates See flow rate table

Flow rate setting adjustment Internal srew

Sensing element Paddle

Liquid applications Hot, chilled, well, pool and sea water,

Brine or ethylene glycol

Parts material in contact with fluid Brass

Paddle material Stainless steel

Liquid temperature -20C-120C

Permissible ambient temperature -40C-85C

Permissible ambient humidity 10…90% RH, non-condensing

Cable entry M18

Housing Galvanized Steel Plate, ABS or PC cover

Protection IP65

Color White

Weight 1.0Kg

Specifications

HOTOWELL International Co., Limited is an innovative and modern medium-sized enterprise, the company is headquartered in Xiamen (China/Fujian). Hotowell was found to offer our customers mature top technology. Our creative potential and our manufacturing and development know how are the basis for innovative products. Since the company was founded, HOTOWELL International Co., Limited has continuously developed itself into a market leading enterprise in the HVAC Automation / Building Automation. Our products mainly applied for industrial, commercial and residential temperature control.

Our product range contains:

Thermostats, Motorized Zone Valves, Water Flow Switches, Proportional Valves, Balancing Valves, Differential Pressure Transmitters, PIR Motion Sensors, Fan Controllers, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc.

HOTOWELL products are designed and used as field control products to be integrated with HVAC control systems such as:

BAS = Building Automation System

BMS = Building Management System

BEMS = Building Energy Management System

BAMS = Building Automation Management Systems

HVAC controls = Heating, Ventilation and Air Conditioning controls

Our objective is to develop, produce and design user-friendly products on the highest technical level. We place great value on always meeting the requirements of the latest technical standard. In this process we take the utmost care in complying with quality and safety standards and thus ensure a long service life for our products. Products that satisfy rigorous quality requirements can only be manufactured through modern manufacturing methods. Satisfaction of all safety and environmental guidelines is a matter of course for us.

Our Products save money and protect the environment!

*********************************************************************************************************
