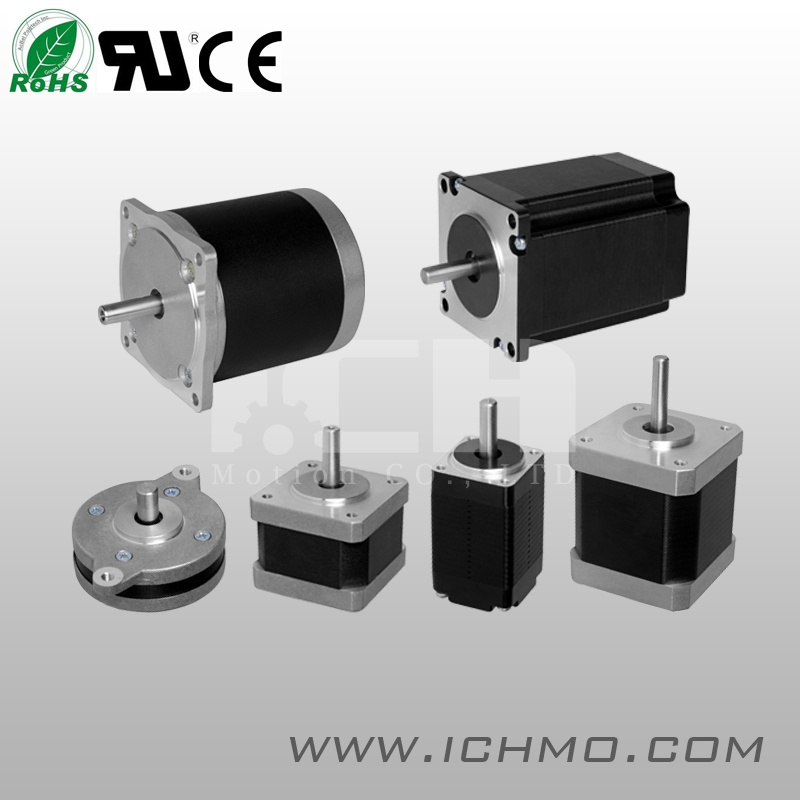

Hybrid Stepping Stepper Step Electric Brushless DC Motor

Name: Hybrid Stepping Stepper Step Electric Brushless DC Motor
Brand: all-electronics-online.com
SKU: 647574565
Availability: InStock
Rating: 5 (117 reviews)

Price:	US $ 5.27-46.12/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Hybrid Stepping Stepper Step Electric Brushless DC Motor

Applications: Widely applied in computer periphery, telecommunications, machine tools, textile machinery, automation office equipment, food machinery, medical equipment, antenna, air-condition, electrograph, printer, duplication machine, CNC Machine, scanner, sheet feeder,

Features:
1. Precise Position Control, linear Speed Selection, forward & Reverse, Pause and Holding Function, long life
2. Low Vibration, Low Noise, low cost, High Speed, High Torque, High Performance, low inertia and high accuracy
3. The variety of accessories and equipment, to meet the customers in different field

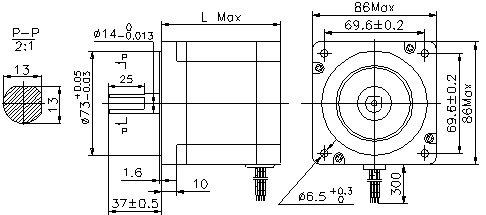

Drawing of HB61/862/866 for your reference

Electrical Specification
SERIES	Figure size	Step Angle	Motor body length	Rated Current	Phase Resistance	Phase Inductance	Holding Torque	Detent Torque	Lead Wire	Motor Weight
SERIES	Figure size	( o )	(mm)	(A)	(Ω)	(mH)	(N.cm)	(N.cm)	(NO.)	( g)
H20	Square 20mm	1.8	28,34,40	0.2~0.6	3.2~32	0.9~8.8	1.4~2.6	0.2~0.5	4	50~82
H28	Square 28mm	1.8	28,33,41,50	0.35~0.6	4.2~24	2.2~18.5	4.5~10	0.3~0.8	4	105~180
H35	Square 35mm	0.9 /1.8	28,34	0.36~0.8	4.5~30	4.2~42	8~18	0.3~1	4,6	120~190
H36	Round 36mm	0.9	15.2,19.8	0.3~0.45	15~16.8	8.2~8.5	3.6~8.8	0.3~0.5	4	55~95
H39	Square 39mm	0.9 /1.8	20,26,34,40	0.4~1.2	2.5~30	3.0~26	8~24	0.5~1.4	4,6	100~210
H42	Square 42mm	0.9/1.8	28,34,40,48,58	0.16~2.3	1.2~30	1.6~54	10~54	0.9~3.2	4,6	130~450
H57	Square /round 57mm	0.9/1.8	41,45,51,56,64,76,100,112	0.38~4.2	0.4~32	1.2~34	22~280	2.5~12	4,6	450~1400
H60	Square60mm	1.2/1.8	41,45,51,54, 56,64,76,90	2.0~4.6	0.4~1.8	0.8~5.5	75~260	3.0~12	3,4	500~1400
H86	Square /round 86mm	0.9/1.2/1.8	63,66,78,92,98,114,122,126,150	2.1~6.8	0.3~4.5	0.65~17.5	180~850	3.5~116.5	3,8	1.6~4.2
H110	Square 110mm	1.2/1.8	115,120,140,150,165,170	4.2~5.0	0.94~2.4	7.0~22	8.0~17.8	20.5~45.5	3,8	5.8~10
Note: We accept the customized design if the customers give us the details, thanks!

Prod Model:	H201 H351 H421 H571 H861
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	20-86mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
