Basic Info
- Model NO.: Y2-71-355
- Speed: Constant Speed
- Function: Driving
- Number of Poles: 2
- Certification: ISO9001, CCC
- Rated Volt: 220/380V\380/660V: Cooling Type: Ico141
- Protection: IP44\IP55\IP56: Insulation Class: B\F\H
- Tefc Tenv Teao: Open Odp
- Package: Carton, Pallet, Wooden Case
- Origin: Zhejaing, China
- Application: Machine Tool
- Number of Stator: Three-Phase
- Casing Protection: Closed Type
- Starting Mode: Direct on-line Starting
- Brand: Kapteeni
- Related Frequency: 50Hz(60Hz): Operation Type: S1
- B3 B5 B14 B35 B34: Pump Motor
- Trademark: KAPTEENI
- Specification: ce, ccc, tuv, sgs, rohs
- HS Code: 850152000
Product Description
Quick Details
- Brand Name: XIAOLAODA&KAPTEENI
- Model Number:MS/YE2/YE3/NEMA/Y2/Y/YL/YC/YY/MY/MY/ML
- Type: ac motor
- Frequency: 50Hz or 60Hz
- Output Power: 0.09kw to 75kw
- Protect Feature: Totally Enclosed/OPEN
- Phase: Three-phase/Single phase
- Certification: CCC, CE, ROHS,ISO9001
- AC Voltage: 110V,220V,380V,415V,660V
- Place of Origin: Taizhou, China (Mainland)
- Efficiency: IE3/IE2/EFF1/EFF2
- Insulation class: Class B, F,H
- Protection grade:IP22,IP44, IP55
- Duty: S1,S2,S3
- Mounting: B3,B14,B5,B35,B34 etc
- Cooling: ICO141
- Bearings: C&U,SKF,NTN,NSK Products:Motors,also Pumps
Packaging Details: | Cartons, Wooden crates, Pallets |
---|
Delivery Detail: | 10-30days |
---|

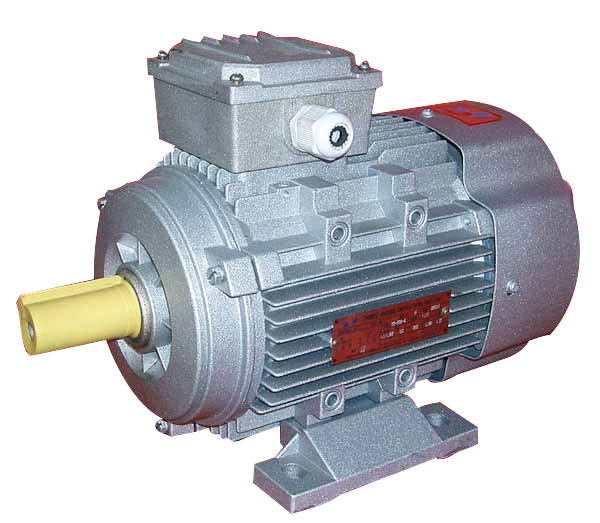

Electric Motors with CE
Features:
1) Utilizes IP55 enclosures
2) Multiple feet locations
3)Cast iron, Aluminum frame, end shields and base
4) High strength cable gland
5) Shaft key and protector supplied
6) Superior paint finish
7) Motors are made to heavy duty service factors
8) Can be made with stainless steel shaft
9) Motors made for continuous S1duty,also ok with S2.S3 duty.
10) Utilizes vacuum impregnated Class F/H insulation
11) High performance and efficiency
Advantages:
1) Water, dust and vermin resistant
2) Quiet operation
3) Electricity saving
4) Easy installation (bolt on feet or brackets as required)
5) Corrosion resistant
6) Dependable
7) Superior life
8) Reliable in country, city or factory environments
Enclosure: | IP22/IP44/IP54/IP55 |
Insulation: | Class B, F,H |
Working Duty: | S1,S2,S3 |
WHY CHOOSE US

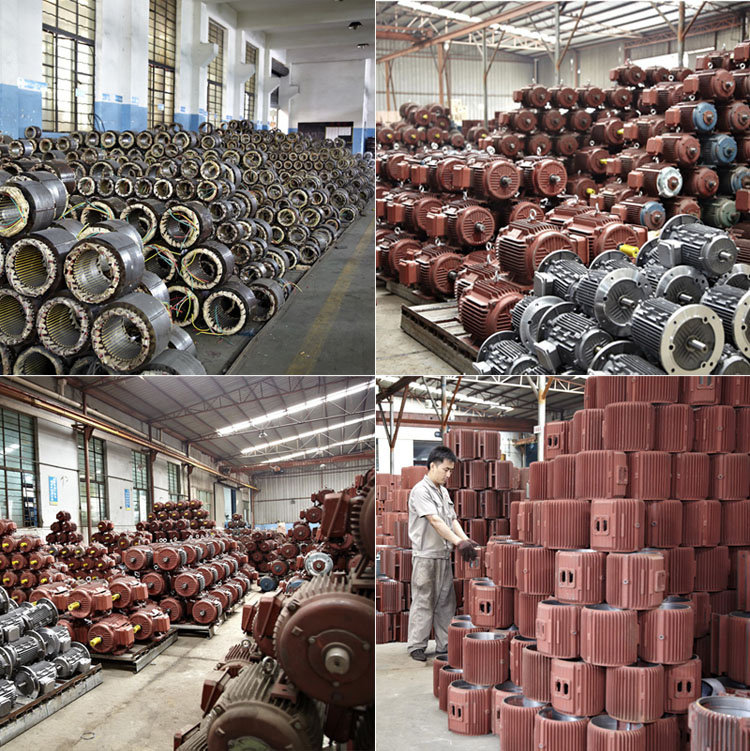

WHAT WE DO INSIDE HUAMING COMPANY
- Stamping of lamination
- Rotor die-casting
- Winding and inserting - both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting - both wet paint and powder coating
- Motor assembly
- Packing
- Inspecting spare parts every processing one by one
- 100% test after each process and final test before packing.
WHAT HUAMING CAN DO FOR CUSTOMERS
- We supply standard products to customers.
- We supply standard products under customers' brands and packaging, etc
- We have our own R&D departmen cant develop new products according to customers'requirements.
OUR FACTORY CAPABILITY
- Established:1985
- Total : workshop, laboratory and office all building belongs to ourselves.
- Employees: All with more than 8 years experience,and some with more than 30years.experience.
- Engineers: 5 work in R&D and 6 in factory production
- Main market: Europe,Australia,South&North America,Africa,Asia,Latin..
- Production certification: Motors has been certificated according to ISO9001, TUV, CE, CCC,Our products are made according to RoHS and IEC standard,NEMA standard..
Y2 series three-phase induction motors aredeveloped with techniques, are renewal and upgrading series.
Feature: Induction motor is with outstanding performance, such as High efficiency, energy-saving, High starting torque, low noise, little vibration, reliablw operation, easy maintance, etc.
Usable range: Y2 series motors are widely used in places where not exists combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.
Protection Class: IP44, IP55, IP56 Insulation Class: B, F, H
Rated Volt: 220/380V; 380/660V Cooling Type: ICO141
Rated Frequency: 50Hz(60Hz) Operation Type: S
Output (KW) | Type | Amps (A) | Speed (R/min) | Eff. % | p.f. | RT N.m | | | | Noise LwdB (A) | Weight (Kg) |
380V 50HZ 2P |
0.18 | Y2-631-2 | 0.5 | 2800 | 65.0 | 0.80 | 00.61 | 2.2 | 2.2 | 5.5 | 61 | 14 |
0.25 | Y2-632-2 | 0.7 | 2800 | 68.0 | 0.81 | 0.96 | 2.2 | 2.2 | 5.5 | 61 | 14.5 |
0.37 | Y2-711-2 | 1.0 | 2800 | 70.0 | 0.81 | 1.26 | 2.2 | 2.2 | 6.1 | 64 | 15 |
0.55 | Y2-712-2 | 1.4 | 2800 | 73.0 | 0.82 | 1.88 | 2.2 | 2.3 | 6.1 | 64 | 15.5 |
0.75 | Y2-801-2 | 1.8 | 2825 | 75.0 | 0.83 | 2.54 | 2.2 | 2.3 | 6.1 | 67 | 16.5 |
1.1 | Y2-802-2 | 2.6 | 2825 | 77.0 | 0.84 | 3.72 | 2.2 | 2.3 | 7.0 | 67 | 17.5 |
1.5 | Y2-90S-2 | 3.4 | 2840 | 79.0 | 0.84 | 5.04 | 2.2 | 2.3 | 7.0 | 72 | 21 |
2.2 | Y2-90L-2 | 4.9 | 2840 | 81.0 | 0.85 | 7.40 | 2.2 | 2.3 | 7.0 | 72 | 25 |
3 | Y2-100L-2 | 6.3 | 2880 | 83.0 | 0.87 | 9.95 | 2.2 | 2.3 | 7.5 | 76 | 33 |
4 | Y2-112M-2 | 8.1 | 2890 | 85.0 | 0.88 | 13.22 | 2.2 | 2.3 | 7.5 | 77 | 41 |
5.5 | Y2-132S1-2 | 11.0 | 2900 | 86.0 | 0.88 | 18.11 | 2.2 | 2.3 | 7.5 | 80 | 63 |
7.5 | Y2-132S2-2 | 14.9 | 2900 | 87.0 | 0.88 | 24.70 | 2.2 | 2.3 | 7.5 | 80 | 70 |
11 | Y2-160M1-2 | 21.3 | 2930 | 88.0 | 0.89 | 35.85 | 2.2 | 2.3 | 7.5 | 86 | 110 |
15 | Y2-160M2-2 | 28.8 | 2930 | 89.0 | 0.89 | 48.89 | 2.2 | 2.3 | 7.5 | 86 | 120 |
18.5 | Y2-160L-2 | 34.7 | 2930 | 90.5 | 0.90 | 60.30 | 2.2 | 2.3 | 7.5 | 86 | 135 |
22 | Y2-180M-2 | 41.0 | 2940 | 91.2 | 0.90 | 71.46 | 2.0 | 2.3 | 7.5 | 89 | 165 |
30 | Y2-200L1-2 | 55.5 | 2950 | 92.0 | 0.90 | 97.12 | 2.0 | 2.3 | 7.5 | 92 | 218 |
37 | Y2-200L2-2 | 67.9 | 2950 | 92.3 | 0.90 | 119.78 | 2.0 | 2.3 | 7.5 | 92 | 230 |
45 | Y2-225M-2 | 82.3 | 2970 | 92.3 | 0.90 | 144.70 | 2.0 | 2.3 | 7.5 | 92 | 280 |
55 | Y2-250M-2 | 100.4 | 2970 | 92.5 | 0.90 | 176.85 | 2.0 | 2.3 | 7.5 | 93 | 365 |
75 | Y2-280S-2 | 134.4 | 2970 | 93.2 | 0.91 | 241.16 | 2.0 | 2.3 | 7.5 | 94 | 495 |
90 | Y2-280M-2 | 160.2 | 2970 | 93.8 | 0.91 | 289.39 | 2.0 | 2.3 | 7.5 | 94 | 565 |
110 | Y2-315S-2 | 195.4 | 2980 | 94.0 | 0.91 | 352.51 | 1.8 | 2.2 | 7.1 | 96 | 890 |
132 | Y2-315M-2 | 233.2 | 2980 | 94.5 | 0.91 | 423.02 | 1.8 | 2.2 | 7.1 | 96 | 980 |
160 | Y2-315L1-2 | 279.3 | 2980 | 94.6 | 0.92 | 512.75 | 1.8 | 2.2 | 7.1 | 99 | 1055 |
200 | Y2-315L2-2 | 348.4 | 2980 | 94.8 | 0.92 | 640.94 | 1.8 | 2.2 | 7.1 | 99 | 1110 |
250 | Y2-355M-2 | 433.2 | 2985 | 95.3 | 0.92 | 799.83 | 1.6 | 2.2 | 7.1 | 103 | 1900 |
315 | Y2-355L-2 | 544.2 | 2985 | 95.6 | 0.92 | 1007.79 | 1.6 | 2.2 | 7.1 | 103 | 2300 |
380V 50HZ 4P |
0.12 | Y2-631-4 | 0.4 | 1400 | 57.0 | 0.72 | 0.82 | 2.1 | 2.2 | 4.4 | 52 | 13 |
0.18 | Y2-632-4 | 0.6 | 1400 | 60.0 | 0.73 | 1.23 | 2.1 | 2.2 | 4.4 | 52 | 13.5 |
0.25 | Y2-711-4 | 0.8 | 1400 | 65.0 | 0.74 | 1.71 | 2.1 | 2.2 | 5.2 | 55 | 14 |
0.37 | Y2-712-4 | 1.1 | 1400 | 67.0 | 0.75 | 2.54 | 2.1 | 2.2 | 5.2 | 55 | 14.5 |
0.55 | Y2-801-4 | 1.6 | 1390 | 71.0 | 0.75 | 3.78 | 2.4 | 2.3 | 5.2 | 58 | 15 |
0.75 | Y2-802-4 | 2.0 | 1490 | 73.0 | 0.77 | 5.15 | 2.4 | 2.3 | 6.0 | 58 | 16 |
1.1 | Y2-90S-4 | 2.0 | 1400 | 75.0 | 0.77 | 7.50 | 2.3 | 2.3 | 6.0 | 61 | 23 |
1.5 | Y2-90L-4 | 3.7 | 1420 | 78.0 | 0.79 | 10.23 | 2.3 | 2.3 | 6.0 | 61 | 25 |
2.2 | Y2-100L1-4 | 5.2 | 1420 | 80.0 | 0.81 | 14.80 | 2.3 | 2.3 | 7.0 | 64 | 33 |
3. | Y2-100L2-4 | 6.8 | 1420 | 82.0 | 0.82 | 20.18 | 2.3 | 2.3 | 7.0 | 64 | 35 |
4. | Y2-112M-4 | 8.8 | 1440 | 84.0 | 0.82 | 26.53 | 2.3 | 2.3 | 7.0 | 65 | 41 |
5.5 | Y2-132S-4 | 11.8 | 1440 | 85.0 | 0.83 | 36.48 | 2.3 | 2.3 | 7.0 | 71 | 65 |
7.5 | Y2-132M-S | 15.6 | 1440 | 87.0 | 0.84 | 49.74 | 2.2 | 2.3 | 7.0 | 71 | 76 |
11 | Y2-160M-4 | 22.3 | 1460 | 88.0 | 0.85 | 71.59 | 2.2 | 2.3 | 7.0 | 75 | 118 |
15 | Y2-160L-4 | 30.1 | 1460 | 89.0 | 0.85 | 98.12 | 2.2 | 2.3 | 7.5 | 75 | 132 |
18.5 | Y2-180M-4 | 36.5 | 1470 | 90.5 | 0.85 | 120.19 | 2.2 | 2.3 | 7.5 | 76 | 164 |
22 | Y2-1180L-4 | 43.2 | 1470 | 91.0 | 0.85 | 142.93 | 2.2 | 2.3 | 7.5 | 76 | 182 |
30 | Y2-200L-4 | 57.6 | 1480 | 92.0 | 0.86 | 193.68 | 2.2 | 2.3 | 7.2 | 79 | 245 |
37 | Y2-225S-4 | 69.9 | 1480 | 92.5 | 0.87 | 238.87 | 2.2 | 2.3 | 7.2 | 81 | 258 |
45 | Y2-225M-4 | 84.7 | 1480 | 92.8 | 0.87 | 290.37 | 2.2 | 2.3 | 7.2 | 81 | 290 |
55 | Y2-250M-4 | 103.3 | 1480 | 93.0 | 0.87 | 354.90 | 2.2 | 2.3 | 7.2 | 83 | 388 |
75 | Y2-280S-4 | 139.6 | 1480 | 93.8 | 0.87 | 483.95 | 2.2 | 2.3 | 7.2 | 86 | 510 |
90 | Y2-280M-4 | 166.9 | 1485 | 94.2 | 0.87 | 578.79 | 2.2 | 2.3 | 7.2 | 86 | 606 |
110 | Y2-315S-4 | 201.0 | 1485 | 94.5 | 0.88 | 707.41 | 2.1 | 2.2 | 6.9 | 93 | 910 |
132 | Y2-315M-4 | 240.4 | 1485 | 94.8 | 0.88 | 848.89 | 2.1 | 2.2 | 6.9 | 93 | 1000 |
160 | Y2-315L1-4 | 287.8 | 1485 | 94.9 | 0.89 | 1028.96 | 2.1 | 2.2 | 6.9 | 97 | 1055 |
200 | Y2-315L2-4 | 359.4 | 1485 | 95.0 | 0.89 | 1286.20 | 2.1 | 2.2 | 6.9 | 97 | 1128 |
250 | Y2-355M-4 | 442.9 | 1490 | 95.3 | 0.90 | 1602.35 | 2.1 | 2.2 | 6.9 | 101 | 1700 |
315 | Y2-355L-4 | 556.2 | 1490 | 95.6 | 0.90 | 2018.96 | 2.1 | 2.2 | 6.9 | 101 | 1900 |
380V 50HZ 6P |
0.18 | Y2-711-6 | 0.8 | 900 | 56.0 | 0.60 | 1.91 | 1.9 | 2.0 | 4.0 | 52 | 14 |
0.25 | Y2-711-6 | 0.9 | 900 | 59.0 | 0.68 | 2.65 | 1.9 | 2.0 | 4.0 | 52 | 14.5 |
0.37 | Y2-801-6 | 1.3 | 900 | 62.0 | 0.70 | 3.93 | 1.9 | 2.0 | 4.7 | 54 | 15 |
0.55 | Y2-802-6 | 1.8 | 900 | 65.0 | 0.72 | 5.84 | 1.9 | 2.1 | 4.7 | 54 | 16 |
0.75 | Y2-90S-6 | 2.3 | 910 | 69.0 | 0.72 | 7.87 | 2.0 | 2.1 | 5.5 | 57 | 19 |
1.1 | Y2-90L-6 | 3.2 | 910 | 72.0 | 0.73 | 11.54 | 2.0 | 2.1 | 5.5 | 57 | 22 |
1.5 | Y2-100L-6 | 3.9 | 940 | 76.0 | 0.76 | 15.24 | 2.0 | 2.1 | 5.5 | 61 | 32 |
2.2 | Y2-112M-6 | 5.6 | 940 | 79.0 | 0.76 | 22.35 | 2.1 | 2.1 | 6.5 | 65 | 41 |
3 | Y2-132S-6 | 7.4 | 960 | 81.0 | 0.76 | 29.84 | 2.1 | 2.1 | 6.5 | 69 | 63 |
4 | Y2-132M1-6 | 9.9 | 960 | 82.0 | 0.76 | 39.79 | 2.1 | 2.1 | 6.5 | 69 | 72 |
5.5 | Y2-132M-6 | 12.9 | 960 | 84.0 | 0.77 | 54.71 | 2.1 | 2.1 | 6.5 | 69 | 81 |
7.5 | Y2-160M-6 | 16.9 | 970 | 86.0 | 0.78 | 73.84 | 2.0 | 2.1 | 6.5 | 73 | 118 |
11 | Y2-160L-6 | 24.2 | 970 | 87.5 | 0.79 | 108.30 | 2.0 | 2.1 | 6.5 | 73 | 145 |
15 | Y2-180L-6 | 31.6 | 970 | 89.0 | 0.81 | 147.68 | 2.1 | 2.1 | 7.0 | 73 | 178 |
18.5 | Y2-200L1-6 | 38.6 | 970 | 90.0 | 0.81 | 182.14 | 2.1 | 2.1 | 7.0 | 76 | 200 |
22 | Y2-200L2-6 | 44.7 | 970 | 90.0 | 0.83 | 216.60 | 2.1 | 2.1 | 7.0 | 76 | 228 |
30 | Y2-225M-6 | 59.3 | 980 | 91.5 | 0.84 | 292.35 | 2.0 | 2.1 | 7.0 | 76 | 265 |
37 | Y2-250M-6 | 71.1 | 980 | 92.0 | 0.86 | 360.56 | 2.1 | 2.1 | 7.0 | 78 | 370 |
45 | Y2-280S-6 | 85.9 | 980 | 92.5 | 0.86 | 438.52 | 2.1 | 2.0 | 7.0 | 80 | 490 |
55 | Y2-280M-6 | 104.7 | 980 | 92.8 | 0.86 | 535.97 | 2.1 | 2.0 | 7.0 | 80 | 540 |
75 | Y2-315S-6 | 141.7 | 980 | 93.5 | 0.86 | 730.87 | 2.0 | 2.0 | 7.0 | 85 | 900 |
90 | Y2-315M-6 | 169.5 | 985 | 93.8 | 0.86 | 872.59 | 2.0 | 2.0 | 7.0 | 85 | 980 |
110 | Y2-315L1-6 | 206.7 | 985 | 94.0 | 0.86 | 1066.50 | 2.0 | 2.0 | 6.7 | 85 | 1045 |
132 | Y2-315L2-6 | 244.7 | 985 | 94.2 | 0.87 | 1279.80 | 2.0 | 2.0 | 6.7 | 85 | 1100 |
160 | Y2-355M1-6 | 292.3 | 990 | 94.5 | 0.88 | 1543.43 | 1.9 | 2.0 | 6.7 | 92 | 1440 |
200 | Y2-355M2-6 | 364.6 | 990 | 94.7 | 0.88 | 1929.29 | 1.9 | 2.0 | 6.7 | 92 | 1600 |
250 | Y2-355L-6 | 454.8 | 990 | 94.9 | 0.88 | 2411.62 | 1.9 | 2.0 | 6.7 | 92 | 1700 |
XNY-MS series three-phase induction motors, deveploped with new techniques, are renewal and upgrading products of Y series
XNY-MS series motors are defined as totally enclosed, fancooled, squirrel cage type and noted for their novel design, beautiful modelling, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy serving, ect.
We changed our company name to Wenling Xinnuo Electric Motor Co., Ltd. is advanced enterprise specializing in all type of MID-size and small-size electric motors, electric machines. The products include Y and Y2 series three-phase asynchronous, MS series three-phase asynchronous motor with aluminium housing, YO2 series three-phase asynchronous motor, YL series monophase machine, YD series multispeed machine, YCT series electromagnetic ajustable-speed motor, frequency adjustable-speed motor and fractional electric motor, YEJ2 series electromagnetic-brake motor, DSM and M50/4 single-phase resistant start asynchronous motors, etc.
Our management system has been assessed and passed the ISO 9001: 2000 Certificate, our products have got the CCEE, CCC, CQC and CE certificates, moreover we are putting efforts to apply the approvals by UL, CSA, CE. The enterprise has the self-supporting import & export right.
With our high Quality, favorable price and excellent service, we are willing to cooperate with the friends in all circles to circles to create the flourishing future.
