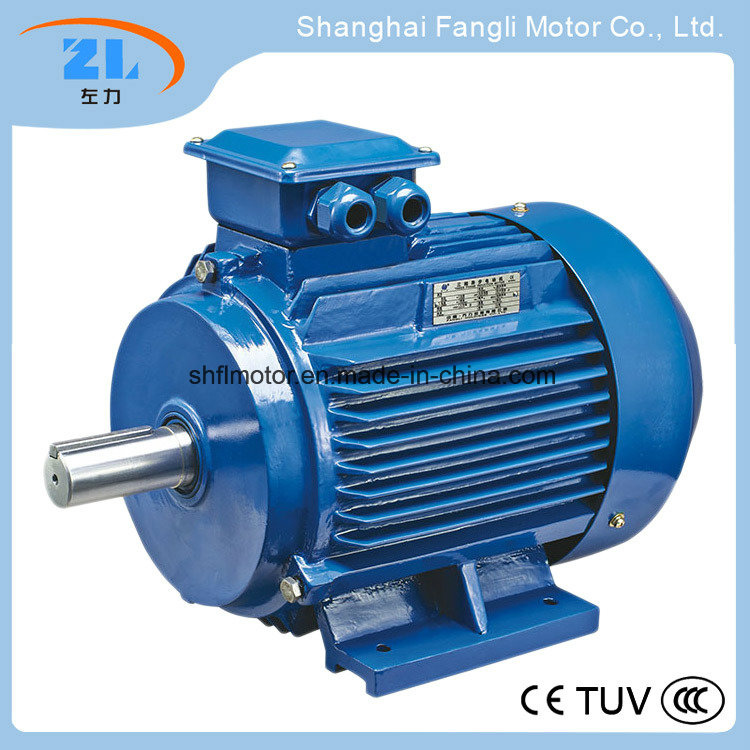

YE2-80-355 series (IP55) of high-efficient three-phase asynchronous motor is a fully closed self-fan-cooling squirrel cage high-efficient three-phase asynchronous motor. The efficiency indicator of this series of motors can reach Grade 3 energy efficiency of China GB18613-2012 Energy Consumption Limits and Energy Efficiency Grade of Small and Medium-sized Three-phase Asynchronous Motors. YE2-80-355 series of high-efficient three-phase asynchronous motor has high efficiency with each performance indicator having reached international advanced level. The motor is used for driving long-running load including fans and pumps, etc., which is able to save considerable electric energy and beneficial to protect the environment.
The installation dimensions and power grades of YE2-80-355 series (IP55) of high-efficiency three-phase asynchronous motors meet the IEC72-1 standard, and the motors with the center height of H160 or above are provided with the non-stop oil injection and extraction device, with the space reserved to install thermistors and moisture proof heating tape for the convenience of users' selection. The stator of motor adopts the insulation of Grade F; but conducting assessment according to 80K for the temperature rise; the motor has large temperature rise margin and long service life; while the cast adopts aluminum cast process with high running reliability. The power scope of this series of motor; 0.55-315KW; center height of base No.: H80-355
Payment:
We support the following payment methods.
Bank Transfer/ Paypal / Credit Card
If you have any question about payment, please feel free to let us know.
ShippingWe will use air or sea shipping , you can check the shipping cost by chosing which country you need to ship. Also we have other shipping metheds for your option, if you have sepcial request on shippment. Pls feel free to contact us.We normally dispatch your order within 2-10 working days depends on stock level, as soon as the order is shipped, we will tell you the tracking number, if there is any problem regarding to the shipping, please feel free to contact us.
Below shows the estimate delivery time for different couriers:
- FedEx: 5 to 10 working days
- UPS: 4 to 8 working days
- EMS: 7 to12 working days
- DHL: 5 to 7 working days
- China post: 20-35 working days
Delay is possible and depends on your local custom & postal services. Sometimes custom will hold the order for random check, you also contact your local postal services to see if there is any international incoming mail.
Packing:
All the item packed individual in white foam and poly bag.
Small quantity order will use strong cardboard carton if necessary.
Frequently asked questions:
Q1. When Can I receive the goods after payment?
If stock is available, we need 1-2 days to do inspection and packing& shiping. EMS normally will take 7-12 days to arrive you. If stock runs out, we need 7-10 days to make the items ready to ship.
Q2. Is the TAX included in the charge?
Buyer is responsible for paying any local Customs Taxes.
For European, all the items usually require import duty which is about 35-45 euros. We will declare small value on the invoice to avoid the high tax. Please inform us how much would be better to delcare after you place an order in our store.For USA , All the items do not need to pay importy duty, if the total commercial invoice is less than 1000USD, as we will delcalare very low value or as per
For Australia, All the items do not need to pay importy duty, if the total commercial invoice is less than 1000AUD, as we will delcalare very low value or as per request. After Sale Service
1. We can provide installation instruction, if you can not find a way to install our items.
2. All of our products are under one year warranty, we can provide the repair if your items are damaged when you use it. But buyer should take the round shipping costs.
3. Refund acceptable, only if the item is shipped wrong or item can not fit( if not fit, please provide the proof of pictures)
ALL SALES ARE FINAL. Item be returned/exchanged only if the items are found defected or wrong item on arrival. If item need to be exchanged, items must be returned within 7 days from the date of authorized for exchange. All presumed defective or wrong items must obtain an authorization before returing. Any returned package without authorization will put on hold or refused. Buyer is responsible for return shipping cost and insurance. Please note that shipping and handling are not refundable.
Feedback: We are very concern about all buyer purchasing feeling in our store, any of your opinion or suggestion is very important for our development, if you are going to leave Neutual or Negative feedback, please do not hesitate to contact us, We appreciate highly if buyer leave us positive feedback.
Contact Us:
Annie
Mobile phone: +8613817603975
Wetchat: +8613817603975
Fangli Holdings Co., Ltd. is a private enterprise integrating research and development, manufacturing and marketing, specialized in small and medium sized asynchronous motors.
Our main Products including YB2 series flameproof three phase asychronous motors, YBF2 series flameproof three phase asychronous motors for fan, YBX3 series premium efficiency flameproof three phase asynchronous motors, Ys serise Aluminium-housing three phase asynchronous motor, YE2 series high efficiency three phase asynchronous motor, YE3 series premium efficiency three phase asynchronous motor, etc.
We supply different kinds of products with high quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
Our company have passed ISO9001: 2008 international quality management system attestation, we insist on technology innovation and scientific management improving quality. Our motors have obtained CCC, CE and Pohs approval, YB2 series motors and YBF2 series motors have gained Explosion-proof certificate and MA/KA certificate.
Our products have covered 29 provinces in our country, and have good reputations in such as Europe, Southeast Asia, the Middle East, South America, Africa, Russia etc. Warmly welcome customers to contact and visit us, we could like to establish stable and long term relationships of business with worldwide customers on mutual benefits.
