IEC Approved 12V200ah Akkumulators Solar Accumulators with Long Life 15years
| Price: |
US $ 150-180/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |

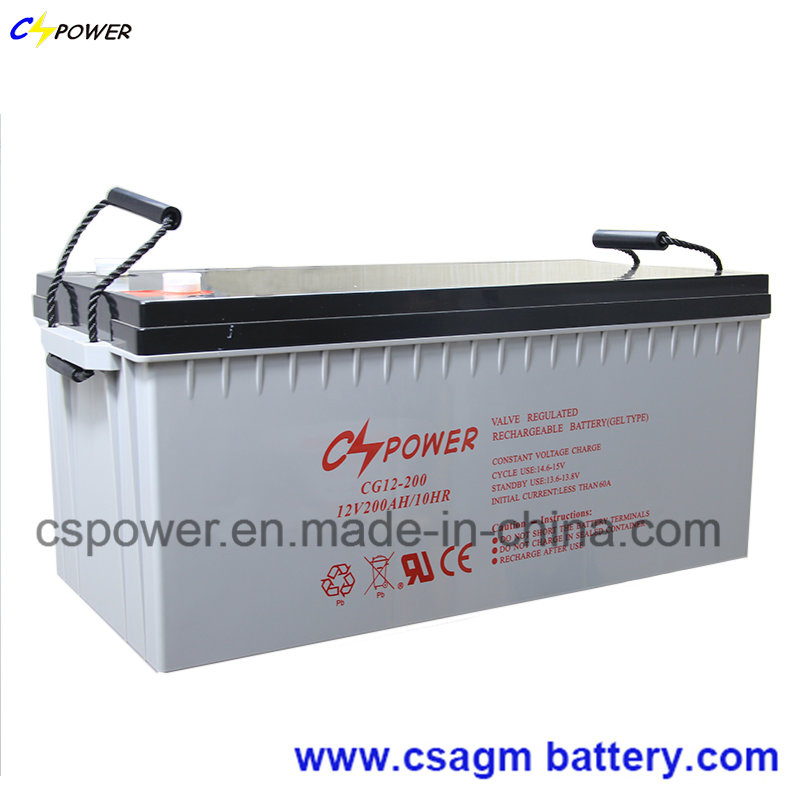

CS12-200D AGM Battery /Sealed Lead Acid Battery/Storage Battery 12V 200ah
IEC Approved Deep Cycle Solar Battery
> Cspower Deep Cycle Solar AGM Battery Characteristics
CS SERIES DEEP CYCLE VRLA AGM BATTERY
Voltage: 2V, 6V, 12V
Capacity: upto 2V3000Ah, 6V420Ah, 12V300Ah
Designed floating service life: 8-12 years @ 25 °C/77 °F.
> Cspower AGM Battery Features and Advantages
30% more cyclic life through innovation at the PAM additives
Long life expectancy of 10 years in floating condition
Thick flat plate with high Tin low Calcium alloy
Wide operating temperature range from -20 °C to 50°C
2%Low self-discharge rate
Very good deep cycle performance: up to 500 cycles @80% DOD
Excellent deep discharge recovery capability > Cspower VRLA AGM Battery Applications
Electric Powered Vehicles, Golf Cars and Buggies, Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments, UPS systems, Inverter systems, Solar and Wind, Emergency systems, Security systems, and so on.
> Cspower MF SLA Battery Complied Stabdards (Certificaitons)1. IEC 60896-21/22
2. IEC 61427
3. ISO9001/14001/18001
4. Eurobat guide, long life
5. BS6290 part 4
6. GB/T 22473
7. CE
8. IATA and IMDG
> Cspowery Deep cycle batteries Summary CSPOWER Deep cycle series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycle (deep cycle). The CSPOWER deep cycle battery uses a different chemistry for the plates active paste material, and a slightly stronger electrolyte than normal battery electrolyte, thus the CS range features 30% higher cyclic life with 10 years of float life when compared to the standard Duration range.> Cspower Sealed lead acid battery Specification | MODEL | (V) | (AH) | DIMENSION(MM) | WEIGHT
(KG) | TERMINAL |
| CS12-4 | 12 | 4/20HR | 90 | 70 | 101 | 107 | 1.35 | F1 |
| CS12-4.5 | 12 | 4.5/20HR | 90 | 70 | 101 | 107 | 1.48 | F1 |
| CS12-5 | 12 | 5/20HR | 90 | 70 | 101 | 107 | 1.58 | F1 |
| CS12-6.5 | 12 | 6.5/20HR | 151 | 65 | 94 | 100 | 1.9 | F2 |
| CS12-7 | 12 | 7.0/20HR | 151 | 65 | 94 | 100 | 2.03 | F2 |
| CS12-7.2 | 12 | 7.2/20HR | 151 | 65 | 94 | 100 | 2.13 | F2 |
| CS12-7.5 | 12 | 7.5/20HR | 151 | 65 | 94 | 100 | 2.2 | F2 |
| CS12-9 | 12 | 9/20HR | 151 | 65 | 94 | 100 | 2.4 | F2 |
| CS12-10 | 12 | 10/20HR | 152 | 99 | 96 | 102 | 3.15 | F2 |
| CS12-12 | 12 | 12/20HR | 152 | 99 | 96 | 102 | 3.38 | F2 |
| CS12-15D | 12 | 15/20HR | 152 | 99 | 96 | 102 | 3.8 | F2 |
| CS12-18D | 12 | 18/20HR | 181 | 77 | 167 | 167 | 5.18 | L1 |
| CS12-20D | 12 | 20/20HR | 181 | 77 | 167 | 167 | 6 | L1 |
| CS12-24D | 12 | 24/10HR | 165 | 126 | 174 | 174 | 7.7 | T2 |
| CS12-26D | 12 | 26/10HR | 166 | 175 | 126 | 126 | 8.3 | T2 |
| CS12-33D | 12 | 33/10HR | 196 | 130 | 155 | 167 | 10 | T3 |
| CS12-38D | 12 | 38/10HR | 198 | 166 | 174 | 174 | 12.3 | T2 |
| CS12-45D | 12 | 45/10HR | 198 | 166 | 174 | 174 | 12.9 | T2 |
| CS12-50D | 12 | 50/10HR | 229 | 138 | 208 | 212 | 15.8 | T3 |
| CS12-55D | 12 | 55/10HR | 229 | 138 | 208 | 212 | 16.3 | T3 |
| CS12-65D | 12 | 65/10HR | 350 | 167 | 178 | 178 | 20.5 | T3 |
| CS12-70D | 12 | 70/10HR | 350 | 167 | 178 | 178 | 21.5 | T3 |
| CS12-75D | 12 | 75/10HR | 260 | 169 | 211 | 215 | 22 | T3 |
| CS12-80D | 12 | 80/10HR | 260 | 169 | 211 | 215 | 23.5 | T3 |
| CS12-85D | 12 | 85/10HR | 331 | 174 | 214 | 219 | 25 | T3 |
| CS12-90D | 12 | 90/10HR | 307 | 169 | 211 | 215 | 26.5 | T3 |
| CS12-100D | 12 | 100/10HR | 331 | 174 | 214 | 219 | 28 | T4 |
| CS12-120D | 12 | 120/10HR | 407 | 174 | 210 | 233 | 33 | T5 |
| CS12-150D | 12 | 150/10HR | 484 | 171 | 241 | 241 | 41 | T4 |
| CS12-160D | 12 | 160/10HR | 532 | 206 | 215 | 219 | 48.3 | T4 |
| CS12-180D | 12 | 180/10HR | 532 | 206 | 215 | 219 | 53 | T4 |
| CS12-200D | 12 | 200/10HR | 522 | 240 | 219 | 224 | 56 | T5 |
| CS12-230D | 12 | 230/10HR | 522 | 240 | 219 | 224 | 60.5 | T5 |
| CS12-250D | 12 | 250/10HR | 520 | 268 | 220 | 225 | 70 | T5 |
| CS6-180D | 6 | 180/10HR | 260 | 180 | 247 | 251 | 27.5 | T5 |
| CS6-200D | 6 | 200/10HR | 260 | 180 | 247 | 251 | 29.5 | T5 |
> Cspower AGM Battery Construction
Positive plate - Thick high Sn low Ca grid with special paste
Negative plate - Balanced Pb-Ca grid for improved recombination efficiency
Separator - Advanced AGM separator for high pressure cell design
Electrolyte - Dilute high purity sulfuric acid
Battery container and cover -Fire resistance ABS, water proof
Pillar seal - Two layers epoxy resin seal
Relief valve - Complete with integrated flame arrestor
> Cspower battery charging voltage and settingsl . Constant voltage charging is recommended
2. Recommended float charge voltage: 2.27V/cell @20~25°C
3. Float voltage temperature compensation: -3mV/°C/cel l
4. Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
5. Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C

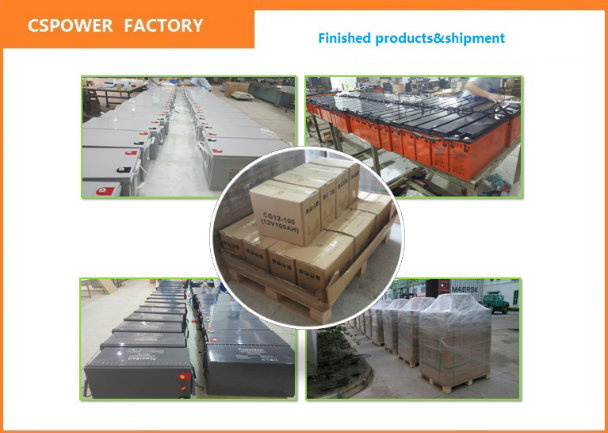

6. Max. charge current allowable : 0.25C > CSPOWER Factory
> CSPOWER Battery Package
> Why choose Cspower?
1) Nearly 13 years leading manufacturer,established in 2003. Factroy size: 50000 square meter
2) Strict management system and quality control, 100% inspection.Factories are satisfied with ISO 9001 & ISO
14001, products with CE/RoHS/TLC etc approval.
3) A professional experienced team to provide you high-quality service.All enquires will be replied in 24 hours.
4) Competitive price help you to occupy more market share
5) 20000KWH production capacity to guarantee the best deliver time
6) 1-3 years warranty policy, up to now, our product defective rate is under 0.4%.
> CSPOWER Battery Tags:
- lead acid battery, AGM battery, GEL battery, valve regulated lead acid battery,VRLA battery, SLA battery,Maintenance free battery,sealed lead acid battery,rechargeable lead acid battery,lithium-ion battery, LiFePO4 Battery
- 2V battery,long life gel battery,battery pack ,12V battery, battery for 48v system,6V solar ups battery
- deep cycle deep acid battery, backup energy battery, deep cycle solar battery,solar panel battery,solar power storage battery,solar battery,home use storage battery
- marine battery,telecom battery, UPS battery,industrial battery,automotive battery, spiral lead acid battery,starting lead acid battery, forklift battery,emergency lighting battery,Electric Vehicle batteries,Electric Wheel Chair battery, Power Tools battery
For more information,please kindly visit our website: www.csagmbattery.com. Or Contact with us directly :
Attn:Ms. Sasha
Mobile: 86-13632715705
| Prod Model: |
CS12-200D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| For: |
Solar, Wind, Telecom, UPS, Inverter, Golf Cart |
| Advantage: |
Water Proof, Non Spillable |
| Size: |
522*240*242mm |
| Weight: |
56-58kgs |
| Sealed: |
Sealed, Free Maintenance |
| Warranty: |
3years Free Replacement |
| Maximum Power: |
300ah |
| Delivery Time: |
7-15days After Deposit |
| OEM: |
Logo Print Free Charge |
| Life Span: |
15-20years |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar, Wind |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
Lead Acid Battery |
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
