IEC Standard 2X2.5mm2 Twin Cable Wire
| Price: |
US $ 80/Roll |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Roll |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SPT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Sectional Area: |
IEC: 0.5-2.5mm2 ASTM: 10-20AWG |
| Number Of Core: |
2 Cores |
| Rate Voltage: |
300/300V |
| Experience: |
20 Years |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Application: |
Indoor |
| Conductor Material: |
Copper or Copper Clad Aluminum |
| Brand: |
Jinshui |
Product Description

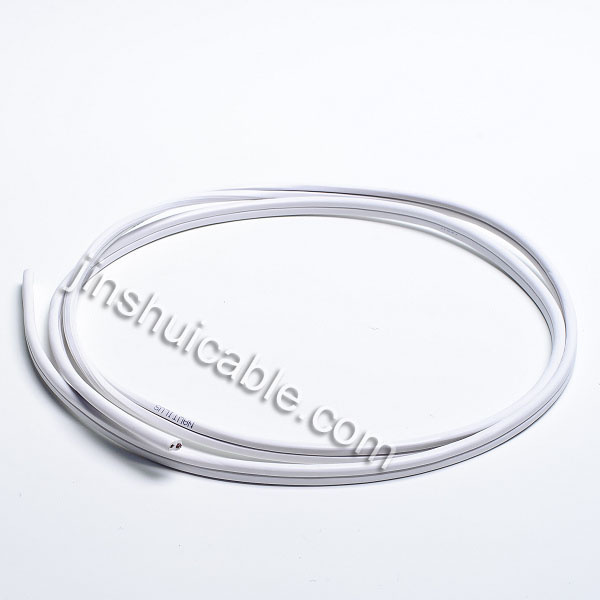

Parallel SPT cable
Applications:
Parallel SPT cable is indended for use in household appliances, including clocks, lamps, radios and fans, which is suitable for use at temperatures not exceeding minimum -20° C or maximum 105° C.
Specification
Conductor: Copper or CCA
Insulation: PVC
Cores: 2 cores, 3 cores
Conductor size: 0.5mm2~2.5mm2; 10 / 12 / 14 / 16 / 18 /20 AWG
Rated Voltage: 300V
Color: White, Black, Yellow, Red, Blue, etc
Package: Ploy Bag, Paper Box, Plastic Spool or as your rquest.
Type:
SPT-1: Thermoplastic, parallel-jacketed, light duty cord use in damp locations, 300V
SPT-2: Same as SPT-1, but heavier construction, 300V
SPT-3: Same as SPT-2, but heavier construction, 300V
| Reference Standard: UL 62 approved | Rated Voltage: 300V | Rated Temperature: 60°C -105°C |
| Conductor: Stranded Bare Copper/copper clad Aluminum (CCA) | Insulation : PVC |
| | AWG/No.of cores | NO./Normal Diameter of strand(mm) | Normal Thickness of Insulation(mm) | Over Diameter of Cable(mm) |
| SPT-1 | 20 x 2c | 21/0.18 | 0.78 | 2.55 x 5.1 |
| 18 x 2c | 41/0.16 | 0.76 | 2.7 x 5.4 |
| 18 x 3c | 41/0.16 | 0.76 | 2.7 x 8.0 |
| SPT-2 | 18 x 2c | 41/0.16 | 1.14 | 3.4 x 6.8 |
| 16 x 2c | 65/0.16 | 1.14 | 3.7 x 7.4 |
| 18 x 3c | 41/0.16 | 1.14 | 3.5 x 8.6 |
| 16 x 3c | 65/0.16 | 1.14 | 3.8 x 9.6 |
| SPT-3 | 18 x 2c | 41/0.16 | 1.52 | 4.4 x 8.7 |
| 16 x 2c | 65/0.16 | 1.52 | 4.8 x 9.5 |
| 14 x 2c | 41/0.254 | 2.03 | 6.0 x 12.0 |
| 12 x 2c | 65/0.254 | 2.41 | 7.4 x14.0 |
| 10 x 2c | 105/0.254 | 2.79 | 9.1x18.2 |
| 18 x 3c | 41/0.16 | 1.52 | 4.4 x 10.7 |
| 16 x 3c | 65/0.16 | 1.52 | 4.8 x 11.8 |
| 14 x 3c | 41/0.254 | 2.03 | 6.0 x 14.5 |
| 12 x 3c | 65/0.254 | 2.41 | 7.4x16.5 |
| 10 x 3c | 105/0.254 | 2.79 | 9.1 x 18.8 |
