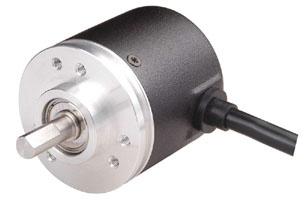

Incremental Magnetic Encoder for Agv Application Mei-30

Name: Incremental Magnetic Encoder for Agv Application Mei-30
Brand: all-electronics-online.com
SKU: 739029145
Availability: InStock
Rating: 4.5 (88 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Features and applications:
High speed, fast response, dustproof, anti-oil, anti-vibration level is high, easy commissioning, installation is simple, line driver output type, strong anti-jamming capability, suitable for long-term output.
Widely used industrial non-contact rotary position sensing, steering wheel position detection, transmission gearbox encoder and headlight position control, automation equipment torque detection and position detection.

Model			MEI-38 Incremental Encoder
Output electrical specifications	Resolution ratio(P/R)		4096
	Control output	Output code/output angle	Refer to output waveform
		PNP open collector output	Output voltage:Min(supply voltage-1.5)Vdc, Load current:Max:80mA
		NPN open collector output	load current Max :80mA, residual voltageMax:1Vdc
		TTL voltage output	load current Max :80mA, residual voltageMax:0.4Vdc
		Analog voltage output	0-5V analog signal
		Analog current output	4-20mA analog signal
	Response time (rise/drop)		≤1μS
	response frequency ( max)		100 kHz
	Supply voltage		5Vdc±5% (wave P-P:Max.5%), 12-24Vdc±5%(wave P-P:Max.5%)
	Consumption current		Max. 35mA( non-loaded)
	Insulation resistance		Min 100M Ω( based on 500Vdc)
	Insulation strength		750Vac 50/60Hz, 60S duration(between terminals and housings)
	Connection		Radial or axial shielded cable exit
Mechanical parameters	Start torque		Max: 5×10-3 N.m
	Inertia torque		9.8×10-8 kg.m2
	Shaft load		Radial 20N , axial 10N
	Shaft position deviation		Radial≤0.1mm , axial≤0.2mm
	allowable speed (max)		5000rpm
Environmental parameters	Operating temperatureºC		-10~70 ºC (non frozen),
	Storage temperatureºC		-25~85ºC
	Humidity %RH		35~90%RH
	Protection grade		IP54 -IP65
	Cable		1M long, shielded Cable

Prod Model:	MEI-38
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard:	Standard
Application:	Basement
Certification:	CE
Principle:	Hall

Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.

Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.

Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.

Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.

Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
