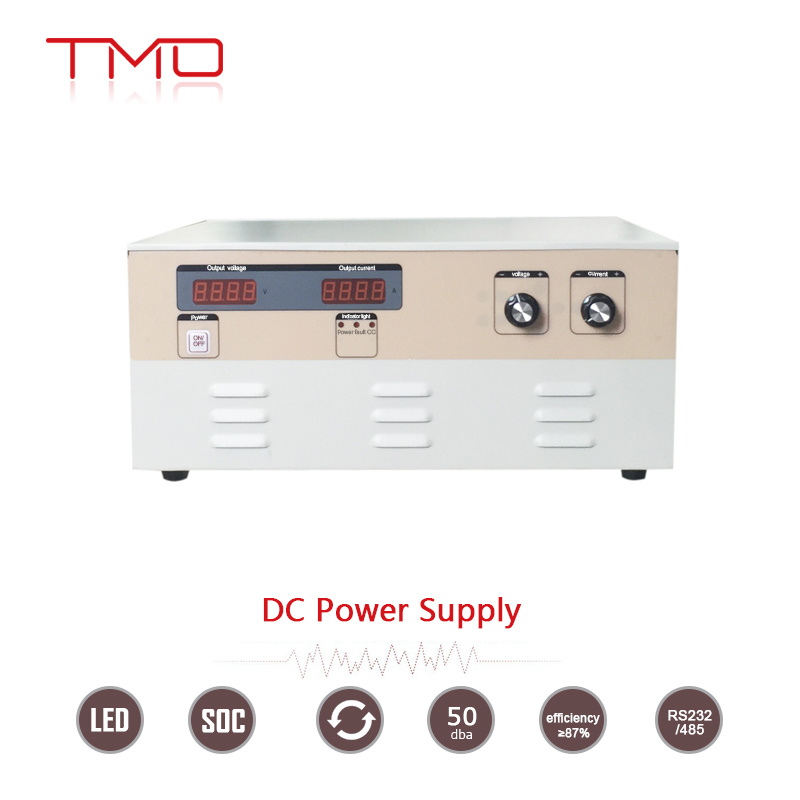

Industrial Class Stabilizer/Regulator DC Power Supply

Name: Industrial Class Stabilizer/Regulator DC Power Supply
Brand: all-electronics-online.com
SKU: 725665342
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	US $ 1000-1200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Industrial Class Stabilizer/Regulator DC Power Supply

Our Features

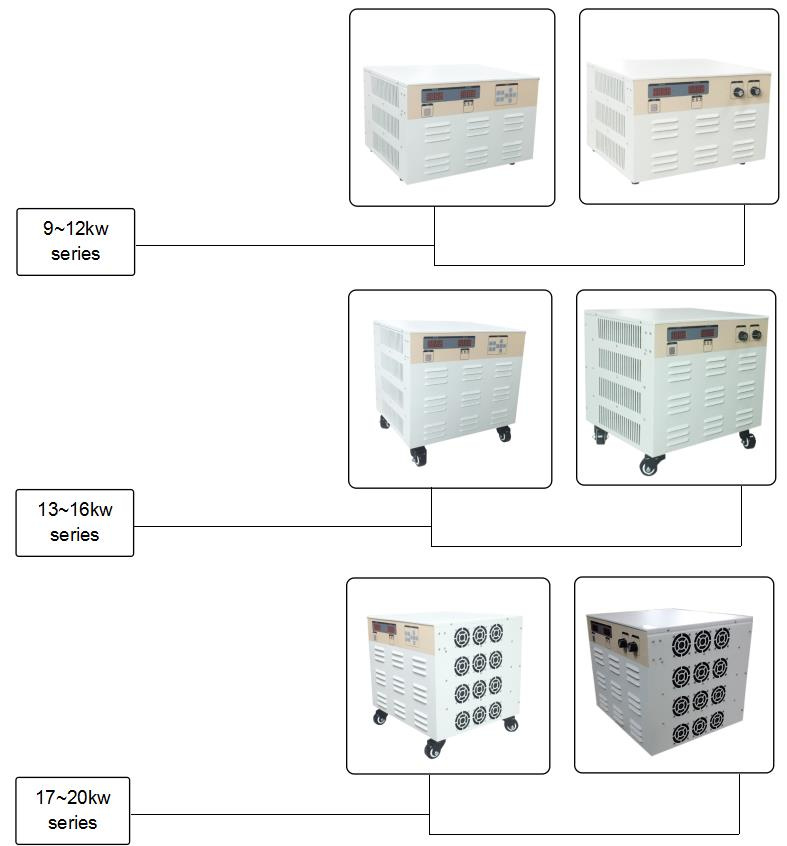

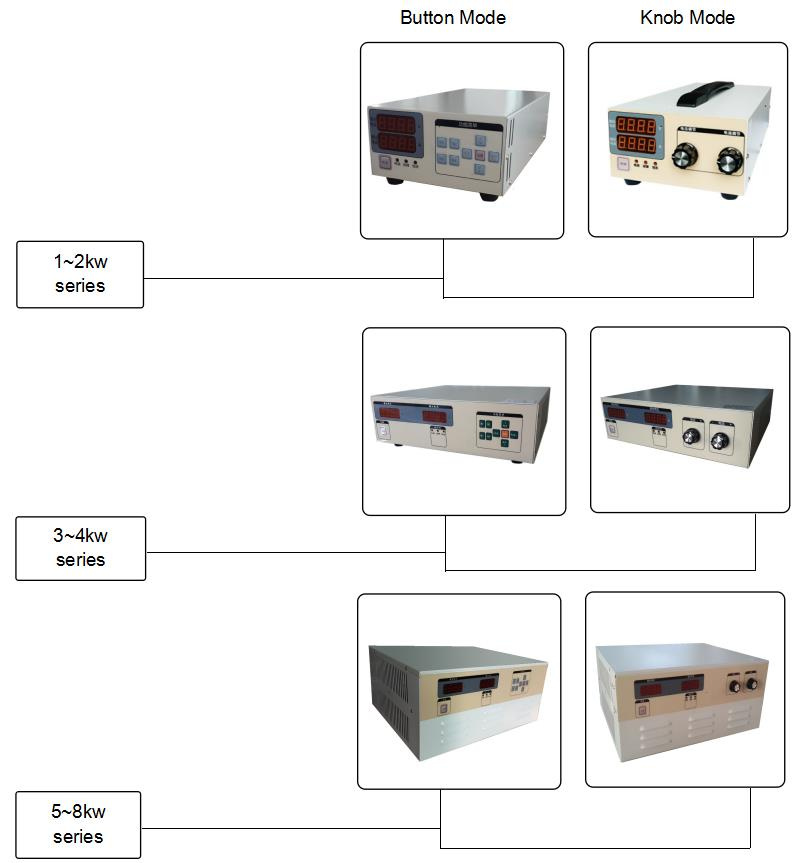

Optional Models

Product Parameters

Technical Indicators for Reference
Output Power(W)	Output Adjustable Voltage(V)	Output Adjustable Current(A)	Dimmension(mm)	Net Weight(kg)
1KW	0~300	0~70	165×330×88	5.5
1.2KW	0~600	0~150	240×330×88	6
1.5KW	0~600	0~70	240×330×88	6
1.8KW	0~600	0~150	240×330×88	6
2KW	0~600	0~150	240×330×88	6
2.5KW	0~600	0~150	240×330×88	6
3KW	0~600	0~200	430×350×88	9
3.5KW	0~600	0~200	430×350×88	9
4KW	0~600	0~200	430×350×88	9
5KW	0~1200	0~400	430×370×176	18
6KW	0~1200	0~400	430×370×176	18
7KW	0~1200	0~400	430×370×176	18
8KW	0~1200	0~400	430×370×176	18
9KW	0~1800	0~600	430×370×264	27
10KW	0~1800	0~600	430×370×264	27
11KW	0~1800	0~600	430×370×264	27
12KW	0~1800	0~600	430×370×264	27
13KW	0~2400	0~600	430×370×352	36
14KW	0~2400	0~600	430×370×352	36
15KW	0~2400	0~600	430×370×352	36
16KW	0~2400	0~600	430×370×352	36
17KW	0~2400	0~600	430×370×440	45
18KW	0~2400	0~600	430×370×440	45
19KW	0~2400	0~600	430×370×440	45
20KW	0~2400	0~600	430×370×440	45
1.the total power(W)= voltage(V)*current(A) , 1 kw = 1000 W
2. the maximum output voltage is 5000V, maximum output current is 1000A

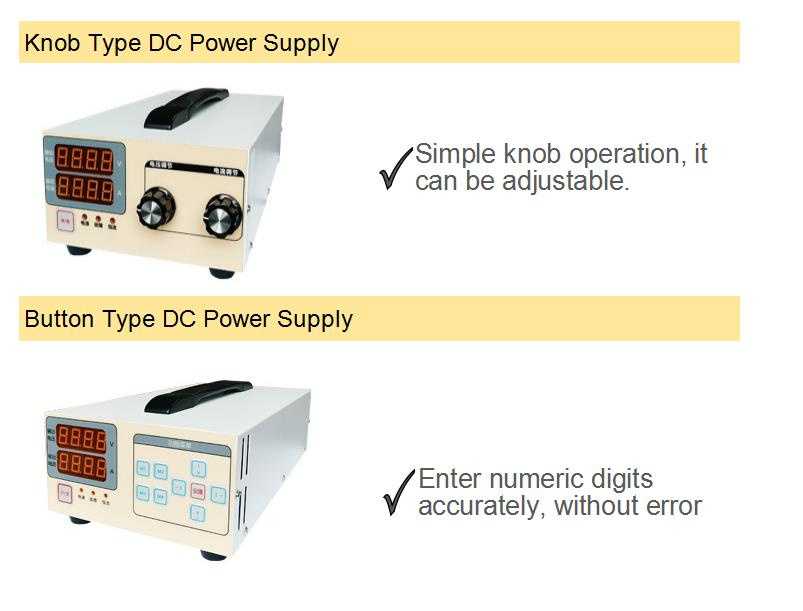

3. Regarding our Model Name: KDPS=Knob type DC Power Supply; BDPS=Button type DC Power Supply

Product Details

Parameter

Item	Performance Parameter
Model No.	TMO-KDPS-6KW
Input Voltage(AC)	1phase AC220V±15% ; 2phaase/3phase AC380V±15%
Input Frequency(Hz)	50/60Hz
Output Voltage(V)	0~1200
Output Current(A)	0~400
Output Power(W)	6KW
Efficiency	≥87%
Load Change Rate	0.5%
Display	4 digits LED display, precision:±1%
Protection	voltage-shortage protection. over-voltage protection. over-current protection. short-circuit protection. over-temperature protection(70~80°C)
Operating Noise	<50db(1 meter away from the surface of the equipment)
Adjusting Way	Knob/Button control
Cooling Method	intelligent temperature control fan
Setup Time of Boot Output Voltage	3S
Ripple	0.4%V
Operating Environment	temperature:-20~45°C,humidity:10~85%RH
Storage Environment	temperature:-20~70°C,hunidity:10~90%RH
★Optional Communcation Function	Adopts the Modbus communication protocol, provide RS232/485 interface, easy to connected to BMS and have remote control via PC.

Customers Service

Please contact us through email or phone, we will assist you in any way possible and aim to answer all emails within 24-48 hours.

OEM Services:
1.Logo:Please offer us your own high resolution logo in JPG format, there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label:Please offer us your own model numbers.
3. Manual:Please offer us the finished manual file that can be printed directly.
4. Packing Box:We will offer you the demension and the design file. Please design your own style based on this file then send it back to us.We will print some samples for your checking.

Payment Terms:
1. T/T ,Western Union,Money Gram.
2. We will arrange the products and shipment within 3-7 working days after receive the payment.

Lead Time:
1.Sample orders will be delivered from our factory within 7 working days.
2.General orders will be delivered from our factory within 7-15 working days.
3.Big orders will be delivered from our factory within 15-25 working days at most.

Shipment:
1.By EMS, DHL, FedEx, TNT, UPS or other express.
2.By our forwarding agent (by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.

After-sale service:
1.All products have been checked and packaged in good condition before dispatch.
2.Warranty : 2 years
3. In case the item is defective, please inform us within 30 days of receipt, we will replace a new one,but you need to in charge for the freight.No Refunds are offered.

About TMO Power

Packing and Logistics

Prod Model:	TMO-KDPS-6KW
Load Regulation:	0.5%
Display Resolution:	Voltage:0.1V Current:0.01A
Display:	4 Digits LED Display
Output Voltage:	0-1200V Adjustable Optional
Transistor Connection Mode:	Full-Bridge Mode
OEM:	Accepted
Output Current:	0~400A Adjustable Optional
Color:	White and Grey
Conversion Efficiency:	87%
Net Weight:	18kg
Output Type:	Single
Warranty:	1 Year
Certification:	RoHS
Output Power:	6kw
Input Voltage:	380/220±15%(V)
Brand:	Tmo

Wuhan TMO Import & Export Co., Ltd is a high-tech enterprise integrating the research, development, production, sales and technical services, which is mainly focusing on off-grid power solutions and new energy solutions. Our factory established in 2012, located in Wenzhou, the largest manufacturing base of low voltage electric equipment in China. Our company strictly comply with ISO9001 quality standard for production, strengthen production and quality control, implementation of comprehensive information management and gradually move towards high-end applications.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
