Industrial Extension Socket with Ce CB CCC Certification

Name: Industrial Extension Socket with Ce CB CCC Certification
Brand: all-electronics-online.com
SKU: 821418105
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	US $ 1-5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Ingress	Rated Current	Rated Voltage	Number of	Code
protection	(A)	range (V)	poles	Type code	Order Code
IP44	16	110-130	2+E	IPS1-013-4	65
IP44	32	110-130	2+E	IPS1-023-4	14
IP44	16	220-240	2+E	IPS1-013	15
IP44	32	220-240	2+E	IPS1-023	16
IP67	63	220-240	2+E	IPS1-033	17
IP44	16	380-415	3+E	IPS1-014	18
IP44	32	380-415	3+E	IPS1-024	619
IP67	63	380-415	3+E	IPS1-034	20
IP44	16	220-380/240-415	3+N+E	IPS1-015	21
IP44	32	220-380/240-415	3+N+E	IPS1-025	22
IP67	63	220-380/240-415	3+N+E	IPS1-035	23

IP44	16	110-130	2+E	IPS1-113-4	25
IP44	32	110-130	2+E	IPS1-123-4	26
IP44	16	220-240	2+E	IPS1-113	27
IP44	32	220-240	2+E	IPS1-123	28
IP67	63	220-240	2+E	IPS1-133	29
IP44	16	380-415	3+E	IPS1-114	30
IP44	32	380-415	3+E	IPS1-124	31
IP67	63	380-415	3+E	IPS1-134	32
IP44	16	220-380/240-415	3+N+E	IPS1-115	33
IP44	32	220-380/240-415	3+N+E	IPS1-125	34
IP67	63	220-380/240-415	3+N+E	IPS1-135	35

Contact our Sales, you can get Selection and Ordering data sheet details.

Function of IP67 Waterproof 400v Industrial Plug And Socket :

1, Our products have undergone the tests under the extreme conditions such as the pesky cold and hot, dustproof, immersed

in water and so on, and they have got the certificates from relevant authorized organizations according to the international standard.

2, Certificates: CCC, CE, China Classification Society,ISO9001,CQC

3, German industrial standard DIN VDE6032,European/Inernational standard EN/IEC 60 309-2

4, Application: it is widely applied in the electrical Field, particularly in the steel, Chemical, electrical, absenteeism, ports, airports, oil exploration, foods, subway and other places.

5, Besides the waterproof and dustproof advantages, have impact-resistance, anti-aging,

Never rusting features. Also have dustproof, damp-proof, anticorrosion, flame-dustproof and anti-aging properties as well as advantages such ashigh temperature resistance, large flexibility, good impact resistance, high degree of finish, soft contact of large current and so on.

6, Easy to installation , plug and socket are easy to put in and out at any time and easy to turn on or off the power.

7, Many combined modes so that can reach the customer's demands.

8, The unique design and exquisite appearance can be used in any harsh environment

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1 work-days, mass production time needs 1-2 weeks for order quantity more than 100pcs.

Q3. Do you have any MOQ limit for tried-order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 working-days to arrive. Airline and sea shipping also optional.

Q5. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, support Alibaba's Trade Assurance,100% money back guarantee.

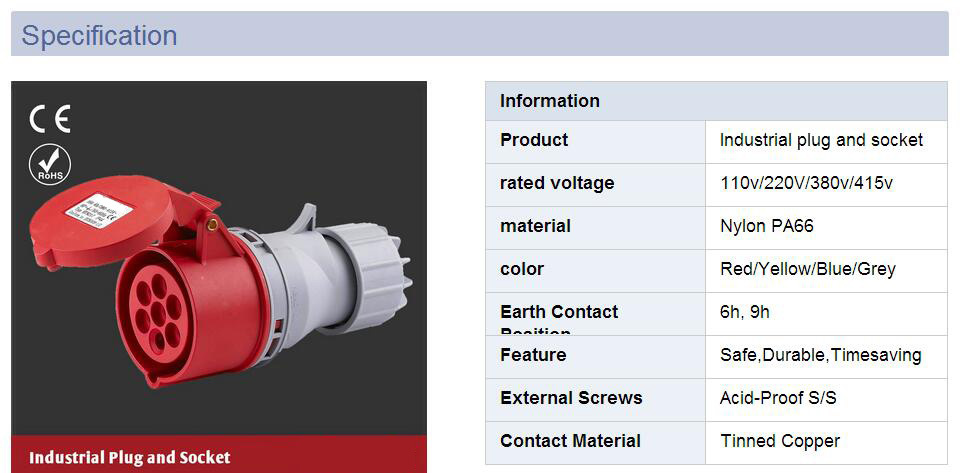

Prod Model:	INDUSTRIAL
Rated Current:	110-240V
Number Of Poles:	2+E
Material:	IP66 Nylon
Rated Voltage:	110V/220V/380V/415V
Feature:	Safe,Durable,Timesaving
External Screws:	Acid-Proof S/S
Contact Material:	Tinned Copper
Product Name:	Industrial Plug and Socket
Earth Contact Position:	6h, 9h
Protection:	IP44/IP67
Grounding:	Standard Grounding
Hole-Digit:	4 Digits
Cable Length:	2 Meter
IP Rating:	IP44
Certification:	RoHS
Customized:	Customized
Condition:	New
Color:	White Blue Yellow Red
