Model: WNK50 Intelligent differential pressure transmitter
Features:1. High reference accuracy up to 0.075%, higher on request.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Range ratio 100:1; higher on request.
4. Replaceable display unit & electronic module.
5. Universal electronics.
6. Menu-guided operation.
7. Factory default data recovery is supportive
8. Hart, PROFIBUS-PA or FF protocol for option.
9. High process temperatures up to 280ºC with diaphragm seals.
Applications:1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level measurement in liquids.
| Model | Product details |
| WNK50 | Smart high precision differential pressure transmitter |
| Code | Approval |
| A | For non explosion-proof areas |
| 1 | Exia IICT6 |
| 2 | Exia IICT4 |
| 3 | Exd II BT6 |
| For other approvals or more information, please contact with us |
| Code | Output code |
| A | 4…20mA |
| H | 4…20mA,HART |
| P | PROFIBUS-PA |
| F | FF |
| Code | Display |
| A | No display |
| L | LCD |
| Code | Housing; Cable entry; Protection |
| A | Aluminum 14,M20×1.5,IP66/67 |
| B | Aluminum 14,G1/2,IP66/67 |
| C | Aluminum 14,1/2NPT,IP66/67 |
| Code | Sensor range, for gauge pressure |
| 7B | 10mbar,PN160 (1kPa/100mH2O) |
| 7C | 30mbar,PN160 (3kPa/300mH2O) |
| 7D | 100mbar,PN160 (10kPa/1mH2O) |
| 7F | 500bar,PN160 (50kPa/5mH2O) |
| 7H | 3bar,PN160 (300kPa/30mH2O) |
| 7L | 16bar,PN160 (1.6MPa/160mH2O) |
| 7M | 40bar,PN160 (4MPa/400mH2O) |
| 8F | 500mbar,PN420 (50kPa/5mH2O) |
| 8H | 3bar,PN420 (300kPa/30mH2O) |
| 8L | 16bar,PN420 (1.6MPa/160mH2O) |
| 8M | 40bar,PN420 (4MPa/400mH2O) |
| 8W | 300bar,PN420 (30MPa/3000mH2O) |
| Code | Calibration,Unit |
| 1 | Sensor range,mbar/bar |
| 2 | Sensor range,kPa/MPa |
| 3 | Sensor range,mmH2O/mH2O |
| 4 | Sensor range,psi |
| Code | Diaphragm material |
| 1 | 316L |
| 2 | Alloy C-276 |
| X | Other special requirement |
| For any other special diaphragm, please contact with us. |
| Code | Process connection thread, drain valve |
| A | Female thread 1/4NPT,emission exit at tail |
| B | Female thread 1/4NPT,emission exit at side |
| C | Female thread 1/2NPT,emission exit at tail |
| D | Female thread 1/2NPT,emission exit at side |
| E | Male thread M20×1.5,emission exit at tail |
| F | Male thread M20×1.5,emission exit at side |
| Code | Process connection material |
| 3 | 316 |
| H | Alloy C |
| Code | Mounting bracket |
| A | No |
| U | Mounting bracket for pipe |
| Typical model#:WNK50 AHL A7D 21A3 U |

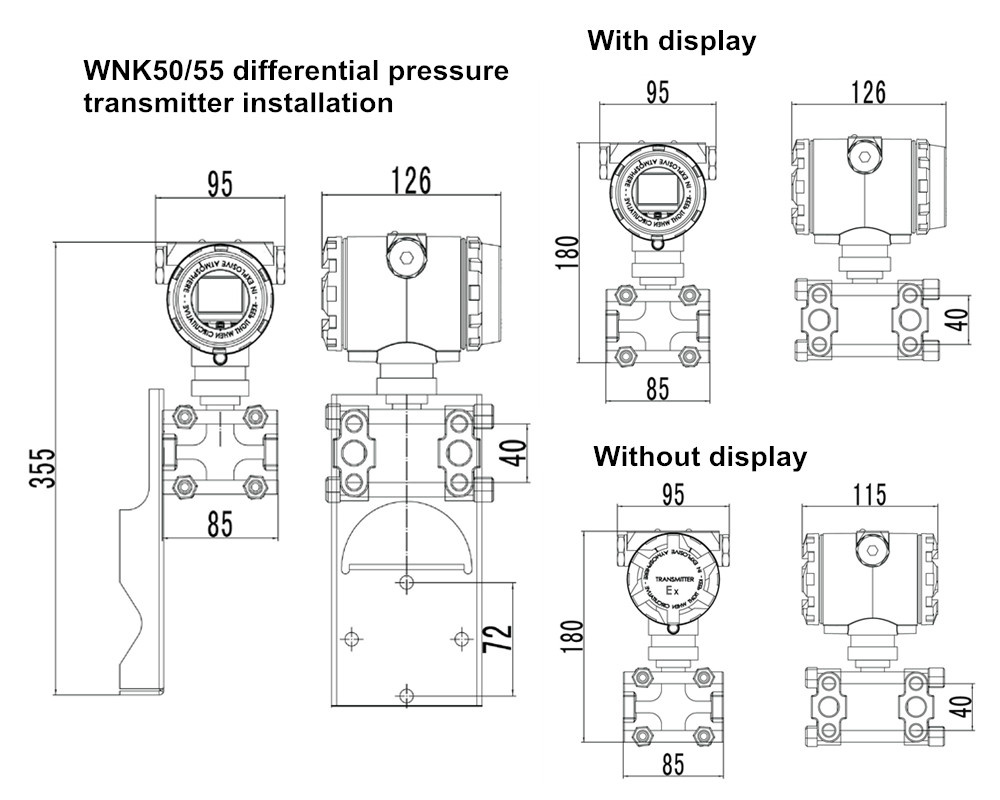

For more information, please contact us for product manual.Dimensions

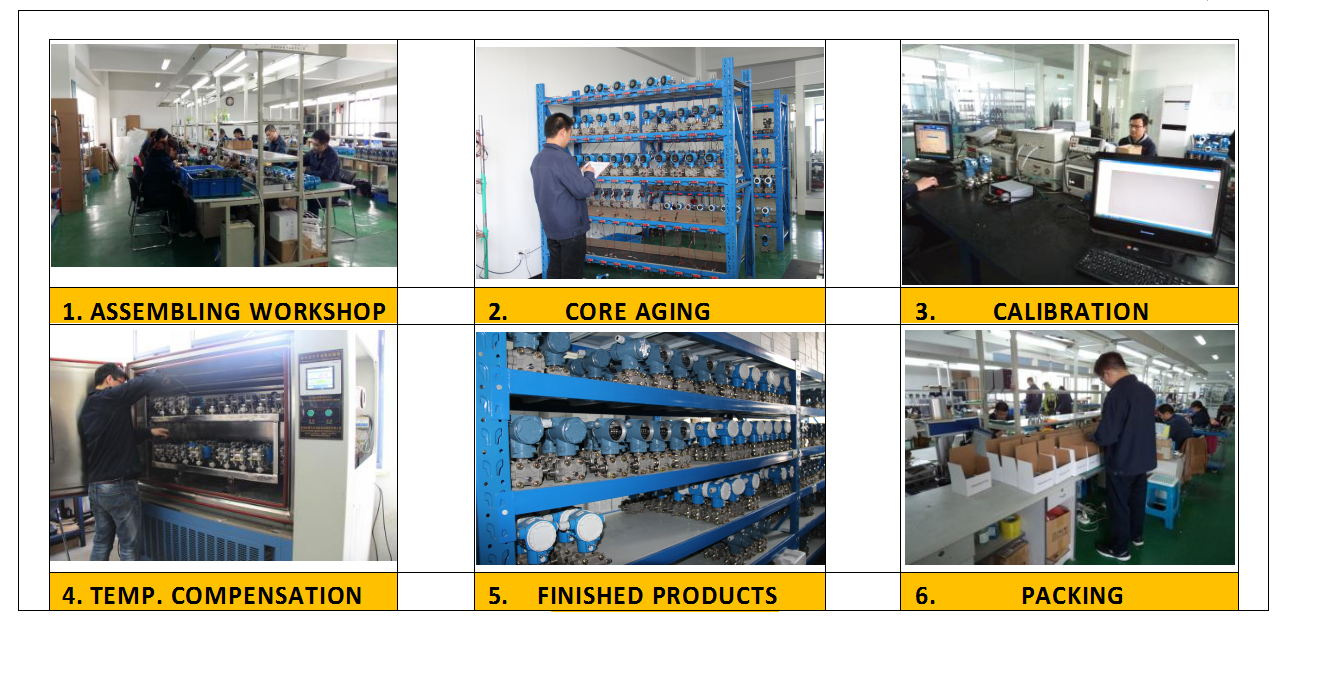

Production Line:
