| Prod Model: |
Industrial Pt100 Temperature Sensor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Industrial PT100 Temperature Sensor |
| Brand: |
Hongtai Industrial PT100 Temperature Sensor |
| Flange Or Screw: |
Customized |
| Head: |
2 Pin 3 Pin |
| Probe Diameter: |
Customized |
| Lead Wire: |
Braid, Glass Fiber, PVC, Teflon, Silicone |
| Plug: |
Mini and Standard |
| Measuring Junction: |
Ungrounded, Grounded, Exposed |
| Max Temperature: |
Degree |
| MOQ: |
5 |
| Material: |
Metal |
Product Description

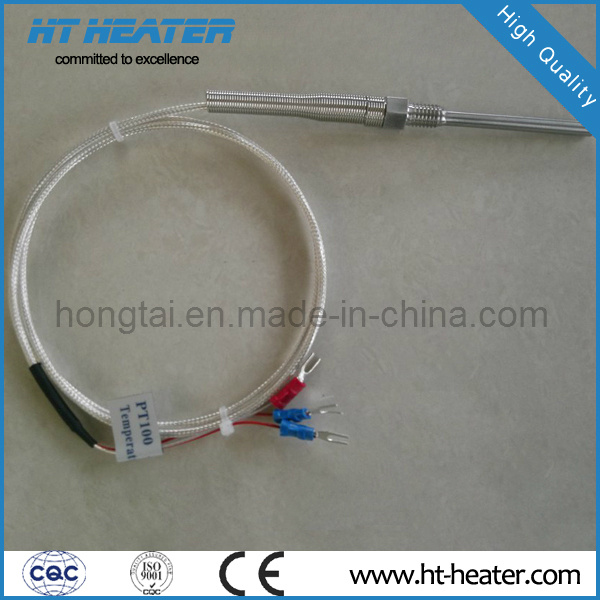

Industrial Pt100 Temperature Sensor
Resistance Temperature Detectors (RTDs) are temperature sensors that contain a resistor that changes resistance value as its temperature changes. They have been used for many years to measure temperature in laboratory and industrial processes, and have developed a reputation for accuracy, repeatability, and stability.
The RTD is one of the most accurate temperature sensors. Not only does it provide good accuracy, it also provides excellent stability and repeatability. RTDs are relatively immune to electrical noise and therefore well suited for temperature measurement in industrial environments, especially around motors, generators and other high voltage equipment.
Applications of RTD's include:
L Air conditioning and refrigeration servicing
2 Food Processing
3 Stoves and grills
4 Textile production
5 Plastics processing
6 Petrochemical processing
7 Micro electronics
8 Air, gas and liquid temperature measurement
9 Exhaust gas temperature measurement
RTDs vs. Thermocouples
The two most common ways of measuring industrial temperatures are with resistance temperature detectors (RTDs) and thermocouples. Choice between them is usually determined by four factors.
Temperature: If process temperatures are between 200 to 500 ° C (328.0 to 932 ° F), an industrial RTD is the preferred option. Thermocouples have a range of 180 to 2, 320 ° C (292.0 to 4, 210 ° F), so for temperatures above 500 ° C (932 ° F) they are the only contact temperature measurement device.
Response time: If the process requires a very fast response to temperature changes— Fractions of a second as opposed to seconds (e. G. 2.5 to 10 s)— Then a thermocouple is the best choice. Time response is measured by immersing the sensor in water moving at 1 m/s (3 ft/s) with a 63.2% step change.
Size: A standard RTD sheath is 3.175 to 6.35 mm (0.1250 to 0.250 in) in diameter; Sheath diameters for thermocouples can be less than 1.6 mm (0.063 in).
Accuracy and stability requirements: If a tolerance of 2 ° C is acceptable and the highest level of repeatability is not required, a thermocouple will serve. RTDs are capable of higher accuracy and can maintain stability for many years, while thermocouples can drift within the first few hours of use.
Our Service
1. Professional help when inquiry
2. Technical data and design can offer
3. Nice after-service
4. Factory direct sale
Company Information
Hongtai is a manufacturer for many kinds of electric heating products with a long experience 20 years. We have professional engineers, technical designers and skillful workers who devote themselves to electric heating products in long term. We are located in Jiangsu Province, China. Welcome to visit our factory.
Packing & Shipping
Packing: Export Carton box and wooden case
Delivery: 7-20 days after payment
|
Temperature range |
|
Category |
Code |
Temperature Range |
|
single platinum RTD |
Pt100 |
-200 °C ~420°C |
|
Double platinum RTD |
|
single copper RTD |
Cu50 |
-50 °C ~100°C |
|
Cu100 |
Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).
With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.
We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.
We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.
Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.
Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.
We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
