APPLICATIONS:

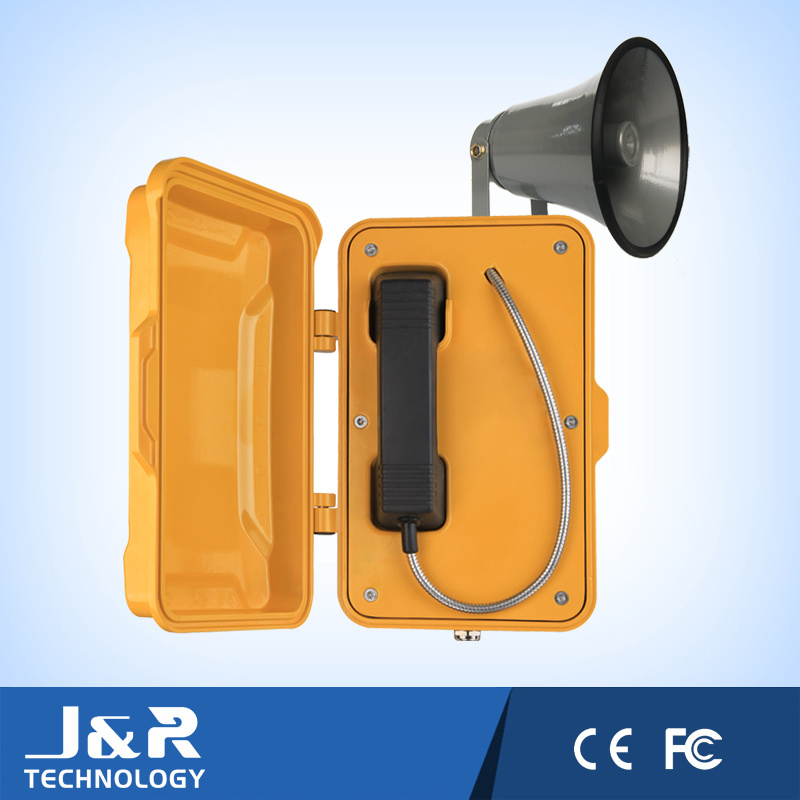

Tunnels & Highways Industrial Emergency Telephone for Railways, Metros it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF. That used for Railway, Highway side, Gas&Oil station,Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.


Key Features:
Suitable for indoor & outdoor application
Designed to flush mount or surface mount into flat surface
The phone has stainless steel faceplate, Material: Metal SS 304,thickness 2 mm.
The telephone electronics is on the rear of the faceplate and is
covered with back box in CRCA for protection
The phone operates on standard analog phone line
It is Line powered i.e. power drawn from telephone line. It doesn't require battery or any external power source.
Handset material: ABS
Built in Ringer, in front panel.
Sealed, push button keypad for smoother and faster dialing of numbers.
Dialing system: Tone dialing (DTMF)

Hook Switch: Non -movable, Magnetically operated hook switch

Handset with Noise canceling microphone for effective communication from noisy areas

Handset cord: Stainless Steel spiral cord

No mechanical or moving parts.

Compatible for interconnection with external ringer, flasher, hooter etc. through additional hardware

Compatibility: Fully compatible with all PBX's

Cabling: Single Pair Telephone Cable



FEATURES:
Standard Analogue phone
Robust construction, Vandal resistant
With horn for broadcasting, loudness of sound can be 110~120 DB
All weather protection IP65-IP66
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Various mounting option spointer Full Keypad
Can be programmed remotely by tone phone or locally via keypad
Non-volatile memory
Telephone line powered
Weatherproof and corrosion resistant handset
Stainless steel armoured handset cord
CE, FCC compliant



TECHNICAL SPECIFICATIONS:

Telephone Versions	Analogue,SIP,GSM,3G Optional
Operating  Temperature	-30°C to +65°C
Storing Temperature	-40°C to +75°C
Ringing Tone	80 dBA @ 1 metre typical
M.T.B.F.	excess of 50,000 hours using
Power Supply	telephone line or DC or solar powered
Weather Resistance	IP66-IP67
Casing Material	Aluminum alloy die casting body

Dialing:MF (tone)

Lightning / Transients
Protection to ITU-T k.21 enhanced levels


PACKAGE
Unit size: 339*246*126(mm)
Carton size:200*300*440( mm )
Packaging materials: pearl cotton, carton
Net weight: 8.5KG
Gross weight: 10KG
