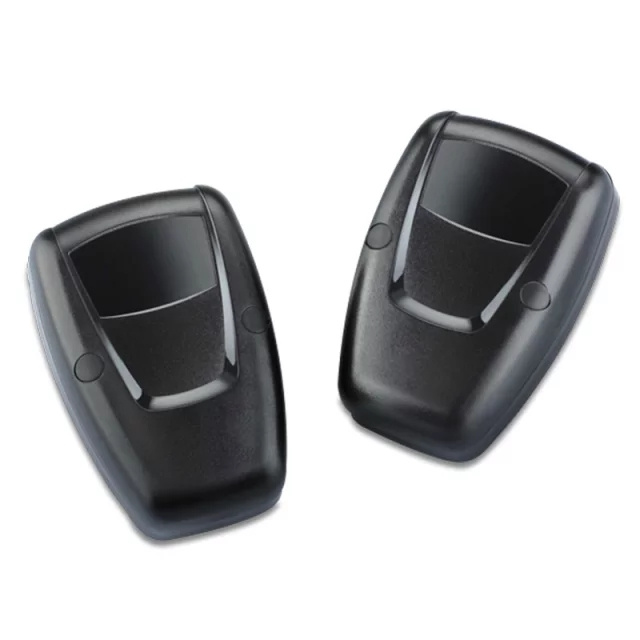

Infra-Red Sensor for Industrial Door/Home Application

Name: Infra-Red Sensor for Industrial Door/Home Application
Brand: all-electronics-online.com
SKU: 824949715
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	US $ 8/Pairs
Min Order:	100/Pairs
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Infra-Red Sensor for Industrial Door/Home Application

Specifications

• synchronized infrared beams
• maximum range 20 m
• beam alignment adjustable up to 15°
• 12 / 24 V power input
• surface mount (no welding required)
• compact design
• design suits any architectural style
• full range of accessories
• removable mounting post cover for easy installation
• photocells can be mounted inside the post in three different positions
• flat back post fits snugly against the wall and allows back-to-back installation

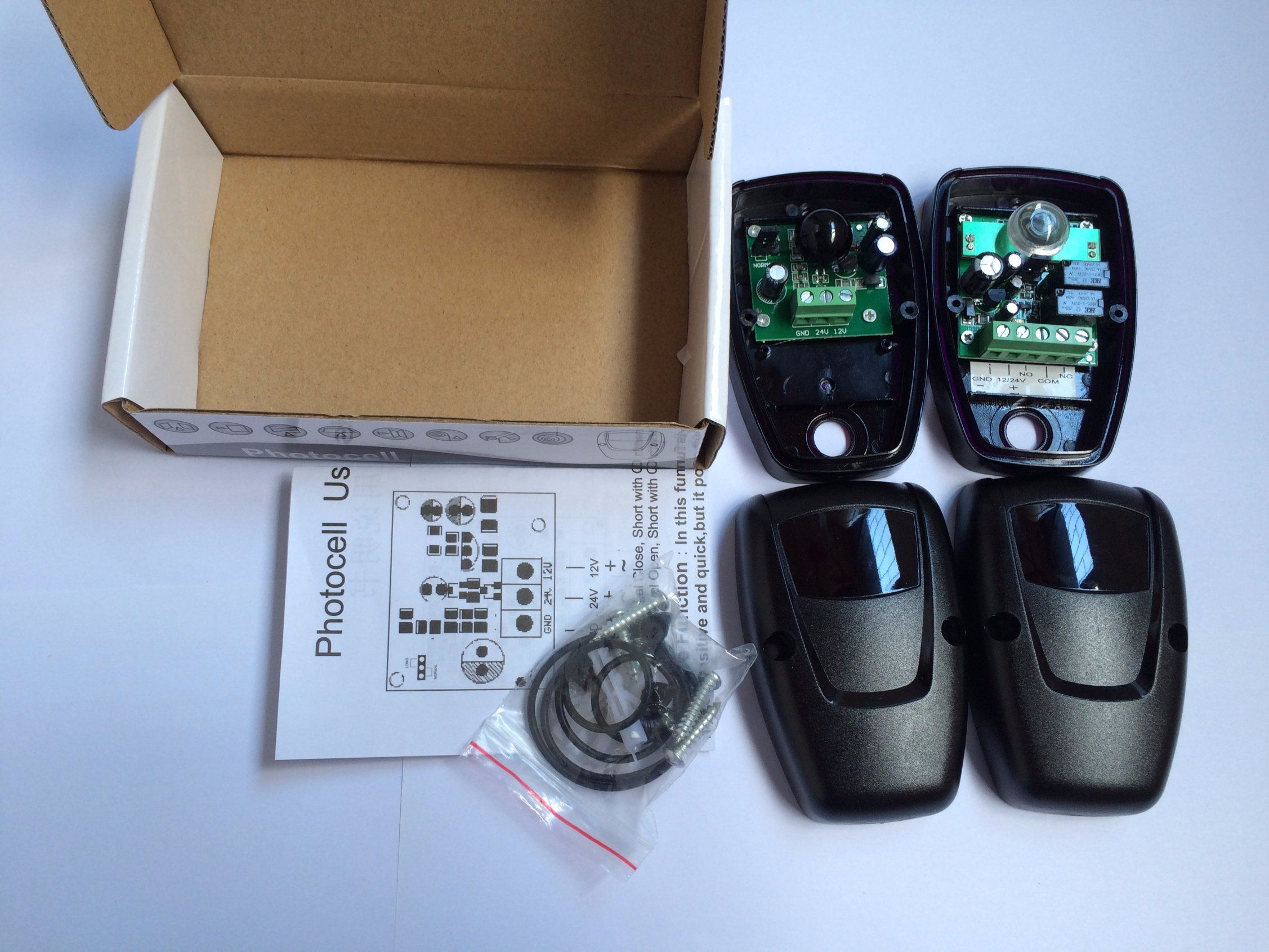

Photocell for Gate Opener, Infrared Sensor
NO : Normal Open , Short with COM when detect infra
NC : Normal close , Short with COM when no detect infra

Sensitive Function:In this function ,the photocell work
more sensitive and quick,but it porbable useless in the rain or
snow weather.To open this function ,you should short for 2 and3 on the receiver board.

Technical Characteristics

Range	20M STANDARD-Range can be reduced to 50% in bad weather
Conditions	fog, rain, dust, etc.
Power Supply	12 to 24V DC/AC
Wave length	880 Nm
Infrared Frequency	540Hz
Input	RX 20 mA-TX 35 mA
Relay output	1A Maximum 24V
Working temperature	-20ºC to +70ºC
Dimensions	85X55X29mm

Prod Model:	YH-1063
Conditions:	Fog, Rain, Dust, etc.
Power Supply:	12 to 24V DC/AC
Wave Length:	880 Nm
Infrared Frequency:	540Hz
Input:	Rx 20 Ma-Tx 35 Ma

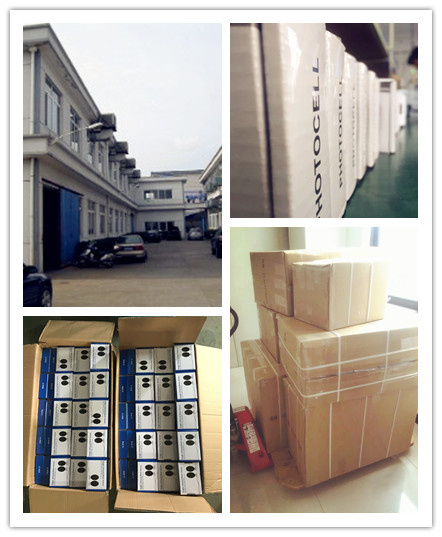

Ningbo YoHe Supply Chain Co., Ltd located in Ningbo, Zhejiang China. Specilized in design, manufacturing, sales and service of high-end automatic doors& gates parts, such as microwave sensor, infraraed sensor, photocell, safety edge, controller, emitter and so on for various kind of doors and windows. We persists in basic principle of science and technology, implments, sincerity, hamony, creativity as its management philosophy, strictly abides by the "fine, precise, beautiful" as its manufacturing ideas. Keeping innovation, developing and manufacturing motors, operators for window and doors, sun protection products etc. Our products are mainly used for shutter, screem, awning, roff windown, garage doors, roller blinds etc. TheMainly exported to Europ, USA, Middle East, Austrail, Asia and so on. Welcome to visit us! !

Our advantage

1. Profession in this line

2. Qucikly lead time

3. Small orders accepted

4. High quality products

5. Competitve Price

6. Best Service
