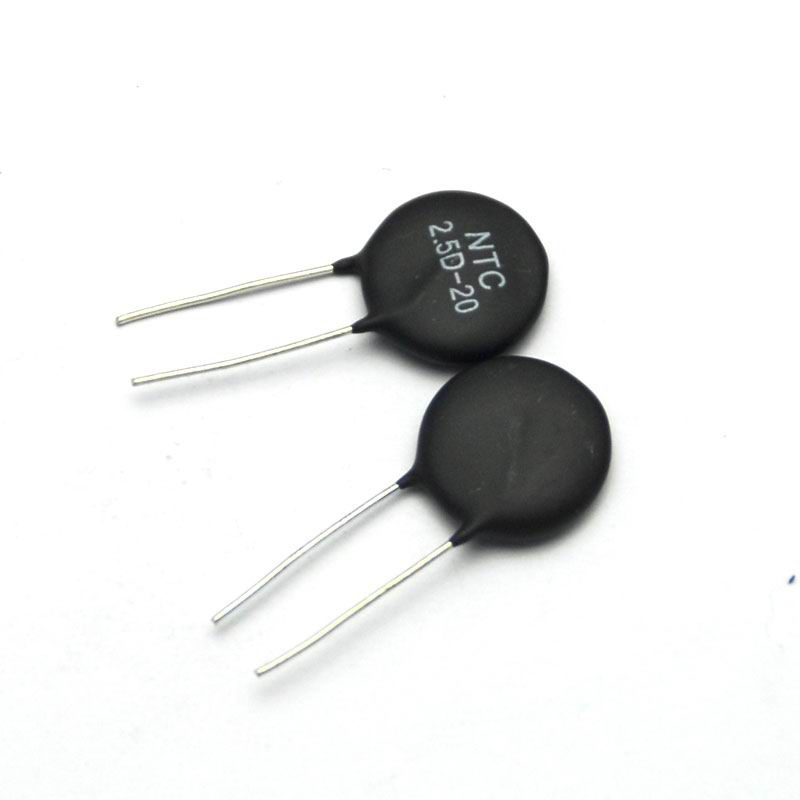

Inrush Limite Power Ntc Mf72 10d-5 10d-9 10d-11

Name: Inrush Limite Power Ntc Mf72 10d-5 10d-9 10d-11
Brand: all-electronics-online.com
SKU: 809603095
Availability: InStock
Rating: 4.7 (81 reviews)

Price:	US $ 0.02-0.8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description:

MF72 series is designed in circuit to avoid the surge over current occurred at the instant circuits turned on. The device can effectively suppress the surge current, and its resistance and power consumption will be reduced greatly when circuit work in normal condition.

Typical Applications:
1. Protection of the power circuits of conversion power supply.
- switching power supply.
- UPS power supply.
2. electric heaters.
3. electronic energy-saving lamps.
4. electronic ballasts and so on.

Features:
1. Strong power and strong capability of surge current protection.
2. Fast response to the rapidly surge.
3. Big material constant (B value).
4. Small remain resistance.

Ordering code

MF72	-	xx	D	xx
(1)		(2)	(3)	(4)

(1)Inrush limit NTC thermistor MF72 series

(2) Rated Zero-power Resistance

(3)Diameter mark
(4)Chip Diameter

Electrical characteristics

		Max. Steady	Approx. R of	Dissi, Coef.	Thermal time
Part NO.	R 25(Ω)	State Current	Max. Cur	Dissi, Coef.	Constant
Part NO.	R 25(Ω)	State Current	Max. Cur	(mW/°C)	Constant
		(A)	(Ω)	(mW/°C)	(S)
		(A)	(Ω)		(S)

MF72-5D5	5	1	0.353	6	20

MF72-10D5	10	0.7	0.771	6	20

MF72-60D5	60	0.5	1.878	6	18

MF72-200D5	200	0.1	6.259	6	18

MF72-5D7	5	2	0.283	10	30

MF72-8D7	8	1	0.539	9	28

MF72-10D7	10	1	0.616	9	27

MF72-12D7	12	1	0.816	9	27

MF72-16D7	16	0.7	1.003	9	27

MF72-22D7	22	0.6	1.108	9	27

MF72-33D7	33	0.5	1.485	10	28

MF72-200D7	200	0.2	6.233	11	28

MF72-3D9	3	4	0.120	11	35

MF72-4D9	4	3	0.190	11	35

MF72-5D9	5	3	0.210	11	34

MF72-6D9	6	2	0.315	11	34

MF72-8D9	8	2	0.400	11	32

MF72-10D9	10	2	0.458	11	32

MF72-12D9	12	1	0.652	11	32

MF72-16D9	16	1	0.802	11	31

MF72-20D9	20	1	0.864	11	30

MF72-22D9	22	1	0.950	11	30

MF72-30D9	30	1	1.022	11	30

Packaging:
Bulk in vacuum bag, or according to yours requirements.
42*27*18cm/Carton =20,000PCS
MOQ: 100pcs.

Other Products:

Prod Model:	MF72 Series
MOQ:	100PCS
Resistance:	Sensitive Resistor
Function For Resistance:	Sampling Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Thermal Resistor
Resistance Change Scale:	Unlinear Scale
Application:	Temperature Measurement
Brand:	Focusens

Focusens is a ISO certified and patented company specially works in developing, producing and service of temperature sensors and thermal components.

With more than 15 years field experience, we are committed to provide quality and prompt delivery of temperature and humidity components, as well as custom design service in temperature humidity field.

Our activities covers all over the world, including Asia, Europe, America, Latin America, Australia and South Africa.

Our customers covers Important players such as Schneider, Oster, Haier, Lada, JAC etc.

Our main products including various temperature sensors and temperature sensing element, various output type humidity transducer, and temp. Humidity monitor and control units.

We provide professional design, manufacturing, and assembly, meanwhile accept OEM with customers design.

Contact us now for details and improve projects efficiency with our expertise.
