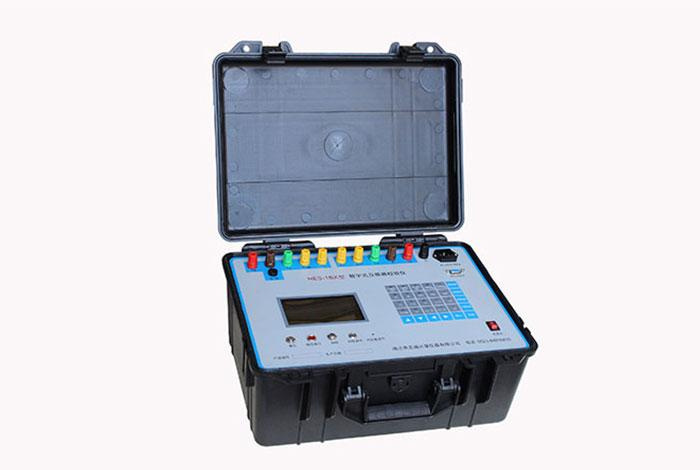

Instrument Transformer Tester

Instrument Transformer Tester
Price: US $ 3000/Piece
Min Order: 1/Piece
Pay Type: T/T

Instrument Transformer Tester



PRODUCT DESCRIPTION
Product model:YMIT-1CYMIT-1Bx
Product structure:Normal typePortable type
Display model:LEDLCD
Measure item:Ratio errors & Phase errors of the CT&PT, Impedance, Admittance
Rated current:5A, 1A
Rated voltage:100V, 110V, 120V
Multiplier:1/√3, 1/3, 1, 1.5, 2
Accuracy class:±2%
Operation range:(1%-120%).In,  (20%-120%).Un
Frequency:50/60Hz
Ratio error range:±0.0001% ~ ±19.99%(Three positions: 1.999‰, 19.99‰, 199.9‰)
 Minimum resolution:0.0001%.
Phase error range:0.01' ~ ±900'(Three positions: 9.00', 90.0', 900')
 Minimum resolution: 0.01'
Impedance range:0.001ms~ 19.99ms.
 Minimum resolution: 0.001ms.
Admittance range:0.001 ms ~ 19.99 ms.
 Minimum resolution: 0.001 ms.
Alarm Function:Provided the sound & light alarm function when the polarity abnormal or ratio inconsistent.
Input Load:- On Standard CT secondary side: ≈0.11ms, COSφ=1.0
- On Test Object CT secondary side: ≈0.003ms, COSφ=1.0
- On Standard PT secondary side: ≈0.05VA  (when U=100V)
Communication Interface:Provided the RS232 serial communication interface
Power supply:AC 220V ± 10%
Power consumption:< 20VA
Prod Model: Instrument Transformer Tester
YM Machinery is a professional solution, engineering and trading company, which mainly servers for transformer production industry.

In Chinese market, there are more than 4000 transformer manufacturers (distribution transformer, power transformer, dry-type transformer, oil-immersed transformer, CT, VT etc).

Chinese transformer industry developed very well from 1990s to 2010s.
So transformer machinery and transformer components industry developed very well.
YM Machinery has strong relationship with many Chinese reputable manufacturers.

Such as:
Transformer vacuum drying oven manufacturer;
Transformer core cutting machine manufacturer;
Transformer winding machine manufacturer;
Transformer insulation material manufacturer;
Transformer testing equipment manufacturer;
Transformer components manufacturer;

So far, YM Machinery has provided machines for transformer manufacturing giants like ALSTOM, SGB, EFACEC, CG etc.
Our machines have been exported to USA, Germany, UK, Thailand, Malaysia, India, Brazil, Australia, Indonesia etc.
