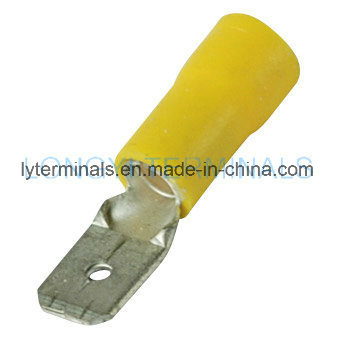

Insulated Male Connectors Ym250 Terminals
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
100000/Piece |
| Pay Type: |
L/C,T/T |
Insulated male/female terminals
1, cable lugs are suitable for the connection of copper conductors in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.
3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
| PART NO | ITEM NO | DIMENSIONS |
| W | L | t | ID | OD | B |
| LY0024-0001 | RM110-5 | 2.8 | 18.5 | 0.5 | 2.1 | 3.8 | 10.0 |
| LY0024-0002 | RM110-8 | 2.8 | 18.5 | 0.8 | 1.8 | 3.8 | 10.0 |
| LY0024-0003 | RM187-5 | 4.5 | 19.0 | 0.5 | 2.1 | 3.8 | 10.0 |
| LY0024-0004 | RM187-8 | 4.5 | 19.0 | 0.8 | 1.8 | 3.8 | 10.0 |
| LY0024-0005 | RM250 | 6.3 | 21.1 | 0.8 | 1.8 | 3.8 | 10.0 |
| LY0024-0006 | BM110-5 | 2.8 | 18.5 | 0.5 | 2.7 | 4.2 | 10.0 |
| LY0024-0007 | BM110-8 | 2.8 | 18.5 | 0.8 | 2.4 | 4.2 | 10.0 |
| LY0024-0008 | BM187-5 | 4.5 | 19.0 | 0.5 | 2.7 | 4.2 | 10.0 |
| LY0024-0009 | BM187-8 | 4.5 | 19.0 | 0.8 | 2.4 | 4.2 | 10.0 |
| LY0024-0010 | BM250 | 6.3 | 21.1 | 0.8 | 2.3 | 4.2 | 10.0 |
| LY0024-0011 | YM110-5 | 2.8 | 22.0 | 0.5 | 3.8 | 5.4 | 13.0 |
| LY0024-0012 | YM110-8 | 2.8 | 22.0 | 0.8 | 3.5 | 5.4 | 13.0 |
| LY0024-0013 | YM187-5 | 4.5 | 22.0 | 0.5 | 3.5 | 5.4 | 13.0 |
| LY0024-0014 | YM187-8 | 4.5 | 22.0 | 0.8 | 3.5 | 5.4 | 13.0 |
| LY0024-0015 | YM250 | 6.3 | 24.0 | 0.8 | 3.5 | 5.4 | 13.0 |
| Prod Model: |
YM250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Copper |
| Type: |
Crimping Type |
| Application: |
Car |
| Character: |
Cable Lug |
| Species: |
Crimping Type |
| Production Process: |
The Surface of The Plating |
| Shape: |
Round Terminals |
| Interface Type: |
Conduct Electricity Tran |
| Brand: |
Longyi |
