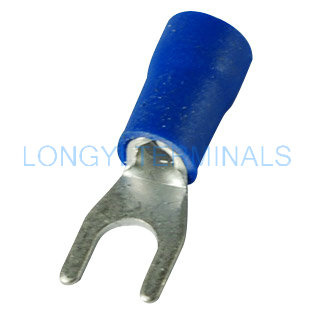

Insulated Spade Terminals 2mm2
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1 /Piece |
| Pay Type: |
L/C,T/T |
Spade insulated terminals
1, cable lugs are suitable for the connection of copper conductors (section 1.25-8mm2) in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
7, Attribute: Pre-insulated, blade shape
|
PART NO |
ITEM NO |
WIRE RANGE |
DIMENSIONS |
|
|
AWG/MCM |
mm 2 |
ΦE |
ΦD |
Φd |
W |
B |
L |
COLOR |
|
LY0020-1001 |
VF1.25-3YS |
22-16 |
0.25-1.65 |
3.7 |
4.0 |
1.7 |
5.7 |
10.4 |
21.8 |
RED |
|
LY0020-1002 |
VF1.25-3YW |
3.7 |
4.0 |
1.7 |
6.2 |
10.4 |
21.8 |
|
LY0020-1003 |
VF1.25-3YSA |
3.2 |
4.0 |
1.7 |
5.7 |
10.4 |
21.8 |
|
LY0020-1004 |
VF1.25-4YS |
4.3 |
4.0 |
1.7 |
6.4 |
10.4 |
21.8 |
|
LY0020-1005 |
VF1.25-4YW |
4.3 |
4.0 |
1.7 |
7.2 |
10.4 |
21.8 |
|
LY0020-1006 |
VF1.25-5Y |
5.3 |
4.0 |
1.7 |
8.0 |
10.4 |
21.8 |
|
LY0020-1007 |
VF1.25-6Y |
6.7 |
4.0 |
1.7 |
10.7 |
10.4 |
21.8 |
|
LY0020-1008 |
VF2-3YS |
16-14 |
1.04-2.63 |
3.7 |
4.6 |
2.3 |
5.7 |
10.4 |
21.8 |
BLUE |
|
LY0020-1009 |
VF2-3YSA |
3.2 |
4.6 |
2.3 |
5.7 |
10.4 |
21.8 |
|
LY0020-1010 |
VF2-3YW |
3.7 |
4.6 |
2.3 |
6.2 |
10.4 |
21.8 |
|
LY0020-1011 |
VF2-4YS |
4.3 |
4.6 |
2.3 |
6.4 |
10.4 |
21.8 |
|
LY0020-1012 |
VF2-4YW |
4.3 |
4.6 |
2.3 |
7.2 |
10.4 |
21.8 |
|
LY0020-1013 |
VF2-5Y |
5.3 |
4.6 |
2.3 |
8.0 |
10.4 |
21.8 |
|
LY0020-1014 |
VF2-6Y |
6.7 |
4.6 |
2.3 |
10.7 |
10.4 |
21.8 |
|
LY0020-1015 |
VF3.5-4Y |
12-10 |
2.63-4.60 |
4.3 |
5.6 |
3.2 |
8.0 |
13.3 |
24.8 |
YELLOW |
|
LY0020-1016 |
VF3.5-5Y |
5.3 |
5.6 |
3.2 |
8.0 |
13.3 |
24.8 |
|
LY0020-1017 |
VF5.5-3Y |
12-10 |
4.60-6.64 |
3.7 |
6.6 |
3.5 |
8.2 |
13.6 |
26.5 |
YELLOW |
|
LY0020-1018 |
VF5.5-4Y |
4.3 |
6.6 |
3.5 |
8.2 |
13.6 |
26.5 |
|
LY0020-1019 |
VF5.5-5Y |
5.3 |
6.6 |
3.5 |
9.0 |
13.6 |
26.5 |
|
LY0020-1020 |
VF5.5-6Y |
6.4 |
6.6 |
3.5 |
12.0 |
13.6 |
31.2 |
|
LY0020-1021 |
VF8-5Y |
8 |
6.64-10.52 |
5.3 |
8.3 |
4.5 |
9.0 |
17.5 |
29.5 |
RED |
|
LY0020-1022 |
VF8-6Y |
6.7 |
8.3 |
4.5 |
12.0 |
17.5 |
32.0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cable Lugs |
