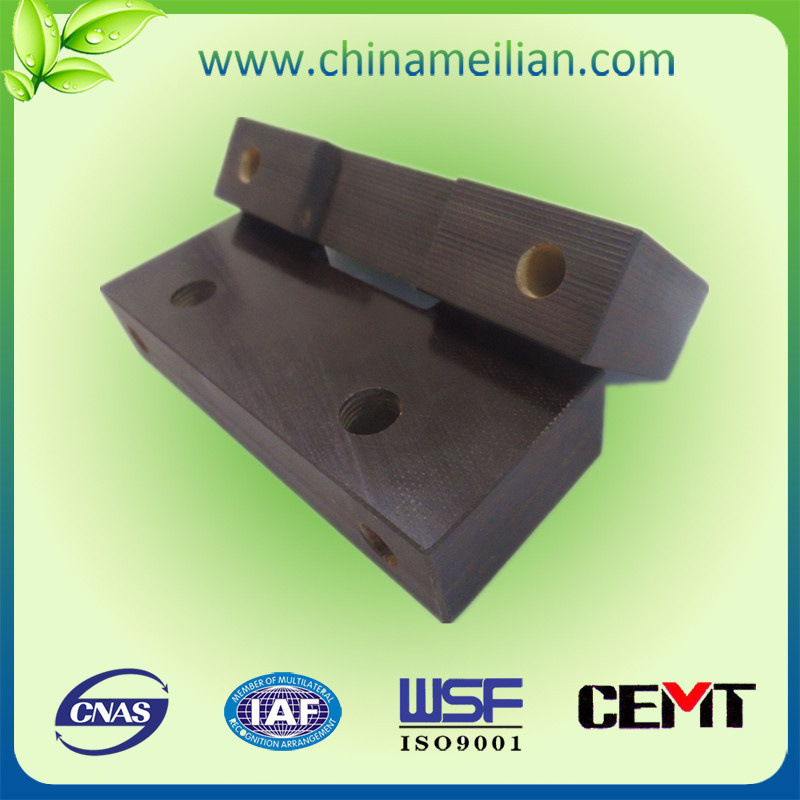

Insulating Electric CNC Processed Machining Components

Name: Insulating Electric CNC Processed Machining Components
Brand: all-electronics-online.com
SKU: 786536875
Availability: InStock
Rating: 4.5 (136 reviews)

Price:	US $ 0.4-0.78pc
Min Order:	3000pc
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Feature:
Defferent heat grades
Excellent mechanical and electrical properties
Customized specification acceptable
Less tolerance
Application:
Insulation part, insulation accessories
Electrical components, electrical transformer part
Knife switch bottom board, electrical accessories
Electrical transformer part, knife switch bottom board
Insulation clamps, Other insulation processing parts

Basic information
Product name	Processed Electrical Insulation Compenents
Brand	MJ
Material	The same with the original laminates' materials
Grade	B, B-F, F, H
Feature
Defferent heat grades Excellent mechanical and electrical properties Less tolerance
Application
Insulation part insulation accessories electrical component electrical transformer part knife switch bottom board electrical accessories electrical transformer part knife switch bottom board insulation clamp Other insulation processing parts

Basic information
Product name	BMI Electrical Insulation Laminted Sheet/Prepreg
Item No.	MJ-9334
Brand	MJ
Material	BMI resin and Alkali free fiberglass cloth
Grade	Grade H
Feature
Excellent mechanical & electric property Good heat & moisture resistance Easy for processing & machining
Application
Can be processed into high temperatue insulating structural parts installed in a variety of motors and electrical equipmenst, or processed into motor slot wedges, standard and non-standard shaped parts
Technical Performance
Density	≥1.7g/cm3
Appearance	Natural color Dark brown, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation
Sheets Thickness	0.1-50mm
Size	≥1220x980mm
Formation methods	High temperature and high pressure
Thermal stability in 24h	≥220ºC
Water absorption	≤1.0%
Impact strength parallel to layer (Charpy method)	≥147 KJ/m2
Tensile strength	≥120 Mpa
Flexural strength perpendicular to layer at room temperature at high temperature 180±2ºC	≥400 MPa ≥200 MPa
Electric strength,perpendicular to the layer(at 90ºC±2ºC oil.) 0.5-1.0mm 1.1-2.0mm 2.1-3.0mm	≥22 MV/m ≥20 MV/m ≥18 MV/m
Dissipation factor Under 48Hz~62 Hz Under 1MHz.	≤0.08
Voltage resistance parallel to layer (at 90ºC±2ºC oil for 1min)	≥30 kV
Insulation resistance parallel to the layer . At room temperature Immersing in water for 24h	≥1.0×104 MW ≥1.0×102 MW
Volume resistivity At room temperature Immersing in water for 24h 180ºC±2ºC	≥1.0×105 MW/m ≥1.0×103 MW/m ≥1.0×103 MW/m
Surface resistivity At room temperature Immersing in water for 24h 180ºC±2ºC	≥1.0×106 MW ≥1.0×104 MW ≥1.0×104 MW
Reference Standard	GB/T1303.1-1998

Prod Model:	MJ-9334
Formation Methods:	High Temperature and High Pressure
Delivery:	7-10 Working Days
Size:	Customized
Samples:	Free Samples Are Welcome
Customizable:	Yes
MOQ:	1 Piece
Temperature:	High Temperature
Application:	Generator
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Maximum Voltage:	>100KV
Type:	CNC Parts
Thermal Rating:	B, B-F, F, H
Brand:	Mj

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.

We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.

We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".

The spirit of our company is: "Good Reputation, Best Products, Wonderful Services "
