Insulation Cable Fiberglass Sleeving Coated Silicone Resin for Wire Harness
| Price: |
US $ 0.05-0.1/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SB-SGS-40 |
| Application: |
Switch Baseplate |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
<10KV |
| Certification: |
Ts16949 |
| Brand: |
Sunbow |
Product Description

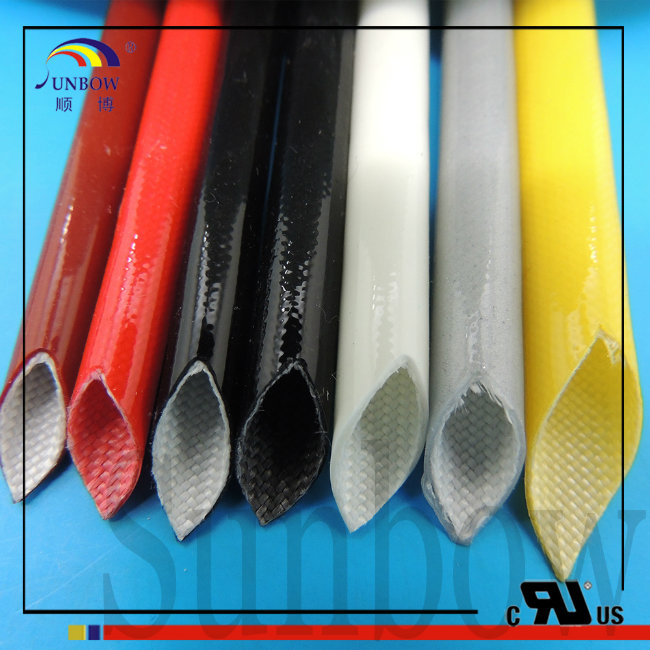

Model Number:SB-SGS-40Working temperature: 200ºC StructureThe material content of the SB-SGS-40 is Non-Alkali Fiberglass Braided then coated with silicone resin and treated in high temperature. UsageSB-SGS-40 sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc. Specification
Item | Performance | Note |
| Dielectric breakdown voltage KV AC | Minimum average | ≥4.0 | Before aged |
| Minimum single point | ≥3.0 |
| Minimum average | ≥3.0 | 6 HRS* 245±5ºC
245±5ºC 6HRS AGING |
| Minimum single point | ≥2.0 |
| Thermal endurance | No indication of crack | OK | 6 HRS* 245±5ºC
245±5ºC 6HRS AGING |
| Fire resistance | VW-1 | OK | UL 1441 |
Dimension | Inside Diameter | Wall thickness minimum
(mm) | Standard package m/roll |
| Nominal(mm) | Tolerance(mm) |
| φ0.5 | +0.2, -0.1 | ≥0.37 | 200 |
| φ1.0 | +0.2, -0.1 | ≥0.37 | 200 |
| φ1.5 | +0.2, -0.1 | ≥0.37 | 200 |
| φ2.0 | +0.2, -0.1 | ≥0.37 | 200 |
| φ2.5 | +0.3, -0.1 | ≥0.42 | 200 |
| φ3.0 | +0.3, -0.1 | ≥0.42 | 200 |
| φ4.0 | +0.3, -0.1 | ≥0.42 | 200 |
| φ4.5 | +0.3, -0.1 | ≥0.51 | 100 |
| φ5.0 | +0.3, -0.1 | ≥0.51 | 100 |
| φ6.0 | +0.3, -0.1 | ≥0.51 | 100 |
| φ7.0 | +0.3, -0.1 | ≥0.56 | 100 |
| φ8.0 | +0.3, -0.1 | ≥0.56 | 100 |
| φ9.0 | +0.3, -0.1 | ≥0.66 | 100 |
| φ10.0 | +0.3, -0.1 | ≥0.66 | 100 |
| φ12.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ14.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ16.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ18.0 | +1.0, -1.0 | ≥0.66 | 50 |
| φ20.0 | +1.0, -1.0 | ≥0.76 | 25 |
| φ25.0 | +1.0, -1.0 | ≥0.76 | 25 |
| φ30.0 | +1.0, -1.0 | ≥0.76 | 25 |
Package: Packing by rolls or cut upon request. Color: Standard color is white, other color available upon request.
Certifications
Our companyWe SUNBOW is a professional insulation tubing OEM manufacturer in China. Our clients can be found everywhere such as Toshiba, SAMSUNG, Philips---About Sunbow1) 10-year exporting experience2) 15-year manufacturing experience3) ISO 9001:2008 and TS16949 quality management system certification4) product certifications: UL, REACH, RoHS5) business partners:Sanyo, Panasonic & Tiger, SEB, Philips, Black & Decker, Emerson & Conair, HOT, IKEA and Midea
Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

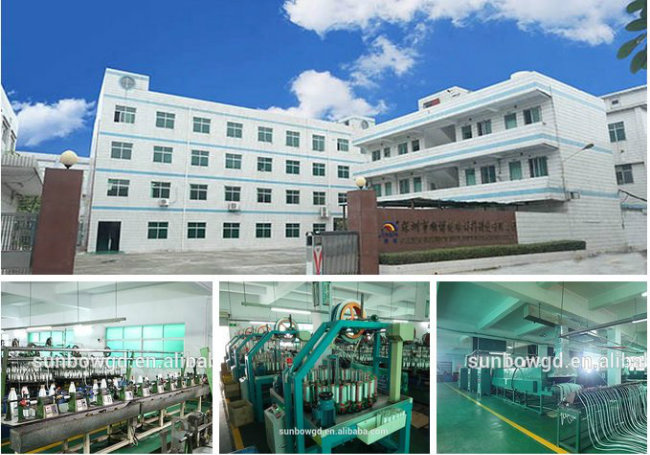

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.
Over the years, we have been enjoying good reputation in our industry by adhering to the business philosophy of "Faith, Practical, and Responsive. " We also get supports and trusts from many international well-known enterprises. Thanks greatly for so many help and cooperation from our partnership, such as Philips, Whirlpool, Conair, Emerson, GE, Black & Decker, SEB, ABB, Schneider, Siemens, Electrolux, Toshiba, Panasonic, Hitachi, Mitsubishi, Samsung, China's Huawei, Haier, CRRC, and many other famous enterprises' trust directly and indirectly; Furthermore, as the second level supplier for automotive system, Sunbow products have been indexed in IMDS. We also have successfully become the qualified supplier for Volvo, Land-Rover, GM, Honda, Suzuki, Nissan, Hyundai and so on.
We know that our task is long-term and arduous, but opportunities are aside with challenges. We "Sunbow" people will take on a new look and work hard to provide our customers the best quality products, first-rate service, the most competitive price and the most reliable technical supports. Return to our customers, return on the community.
