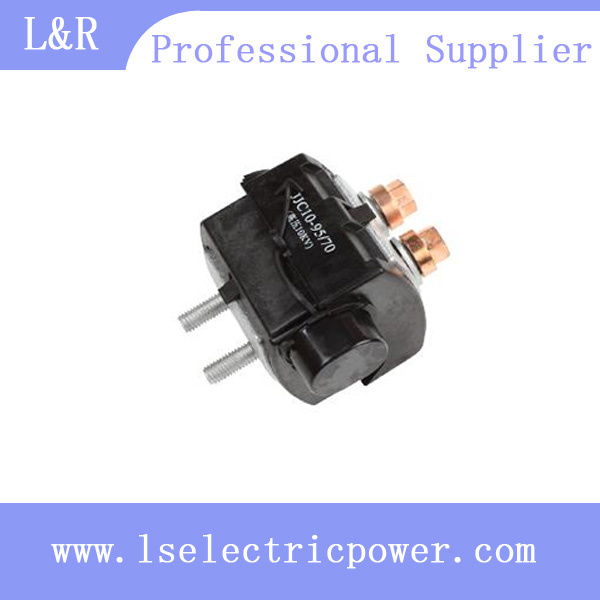

Insulation Piercing Wire Connectors Jjc10-95/70

Name: Insulation Piercing Wire Connectors Jjc10-95/70
Brand: all-electronics-online.com
SKU: 782730755
Availability: InStock
Rating: 4.9 (79 reviews)

Price:	US $ 0.5-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Insulation piercing connector is mainly suitable for the connection of the overhead insulation conductor, branch connection and grounding protection, It is used for the voltage which is 20KV, 10KV and 1KV and below. Applicable for Al-Cu conductor, different diameter wire connection, and equal diameter wire butt, and is suitable for the transition of copper aluminum insulation conductor link.

Main function and features:

1.Easy installation,No need to strip the cable insulation cover,

2.Piercing connector,special nut and torque nut.To ensure good electrical connection without damage wires.

3. Resistance reduced by 30% Heat cycle curve is more stable.

4.Good Insulation,It passed the power frequency withstand voltage and underwater withstand voltage performance test without any special treatment.Sealing structure and with insulation grease.wetpoof,waterproof,anti-corrosion,extend the service life of insulated conductor and clamp.

Type	Suitable wire(mm²)
Type	Main Line(mm²)	Branch line (mm²)
JJC-300/300	240~300	240~300
JJC-240/240	150~240	150~240
JJC-240/120	150~240	70~120
JJC-240/50	150~240	16~50
JJC-150/150	95~150	95~150
JJC-150/70	95~150	35~70
JJC-95/95	50~95	50~95
JJC-95/50	50~95	10~50
JJC-70/35	16~70	10~35
JJC-95/10	16~95	1.5~10(Street Lamp Branch Line)
JJC-50/10	10~50	1.5~10
JJCD-240~300	240~300	Grounding Connector
JJCD-95~240	95~240	Grounding Connector
JJCD-35~120	35~120	Grounding Connector
JJCD-16~95	16~95	Grounding Connector

Prod Model:	JJC10-95/70
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power
