Insulation Silicone Rubber Heat Shrink Tube for Wire Harness
| Price: |
US $ 0.5-30.2/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SB-SRTHST |
| Working Temp: |
-50~200c |
| Shrink Temp: |
90~170c |
| Shrink Ratio: |
1.7:1 |
| Wall Thickness: |
Thick Type or Thin Type |
| Application: |
High Temperature Application |
| Type: |
Insulation Sleeve |
| Chemistry: |
Organic Insulation |
| Material: |
Rubber |
| Thermal Rating: |
200 200 |
| Maximum Voltage: |
<10KV |
| Certification: |
Ts16949 |
| Color: |
All Colors |
| Brand: |
Sunbow |
Product Description
Insulation Silicone Rubber Heat Shrink Tube for Wire Harness
Model number:SB-SRHST
Temperature: -50ºC - 200ºC
Shrink temperature: 90ºC - 170ºC
Shrink ratio: 1.7:1
Structure
High temperature and voltage resistant, flame retardant, soft, SGS compliant.
Usage
It is widely use in electrical protection, resistor, capacitor, aerospace, medical instrument etc.
Specification | Dielectric constant (*) 50HZ | 3.2 |
| Rigidity (Shore A) | 70±5 |
| Copper Corrosion | No corrosion |
| Antibiotic property, erosion resistance property | Excellent |
| Toughness (fold, bend, tear etc.) | Excellent |
| Tensile strength Mpa (kgf/cm) | 6.9(70) |
| Dielectric breakdown voltage (kv/mm) | 25 |
| Appearance | Smooth, no visible fur and defects , no impurity |
| Shrink temperature | >90ºC |
| Shrink ratio (%) | ≥50% |
| Elongation (%) | 40 |
| Flammability UL-224 | VW-1 |
| Resistance performance | Wear-resistant, acid-resistant, anti-virus, anti-corona discharge, withstand liquor, oil and other special liquid. |
| Water absorption | No |
Dimension | Size | Shrink size | Wall thickness | After recovery | Thickness |
| I.D. | Thin type | Thick type | I.D. | Thin type | Thick type |
| Φ1.0 | 1.0 | 0.5±0.1 | 0.80 | 0.6 | 0.7±0.1 | 1.1±0.1 |
| Φ1.5 | 1.5 | 0.5±0.1 | 0.80 | 0.8 | 0.7±0.1 | 1.1±0.1 |
| Φ2.0 | 2.0 | 0.5±0.1 | 0.80 | 1.2 | 0.7±0.1 | 1.1±0.1 |
| Φ2.5 | 2.5 | 0.5±0.1 | 0.80 | 1.5 | 0.7±0.1 | 1.1±0.1 |
| Φ3.0 | 3.0 | 0.5±0.1 | 0.80 | 1.8 | 0.7±0.1 | 1.1±0.1 |
| Φ3.5 | 3.5 | 0.5±0.1 | 0.80 | 2.0 | 0.7±0.1 | 1.1±0.1 |
| Φ4.0 | 4.0 | 0.5±0.1 | 0.80 | 2.5 | 0.7±0.1 | 1.1±0.1 |
| Φ4.5 | 4.5 | 0.5±0.1 | 0.80 | 2.8 | 0.7±0.1 | 1.1±0.1 |
| Φ5.0 | 5.0 | 0.5±0.1 | 0.80 | 3.0 | 0.7±0.1 | 1.1±0.1 |
| Φ6.0 | 6.0 | 0.5±0.1 | 0.80 | 3.8 | 0.7±0.1 | 1.1±0.1 |
| Φ7.0 | 7.0 | 0.5±0.1 | 0.80 | 4.0 | 0.7±0.1 | 1.1±0.1 |
| Φ8.0 | 8.0 | 0.5±0.1 | 0.80 | 4.8 | 0.7±0.1 | 1.1±0.1 |
| Φ9.0 | 9.0 | 0.5±0.1 | 0.80 | 5.0 | 0.7±0.1 | 1.1±0.1 |
| Φ10.0 | 10.0 | 1.0±0.1 | 1.50 | 6.5 | 1.7±0.1 | 2.5±0.1 |
| Φ12 | 12.0 | 1.0±0.1 | 1.50 | 7.0 | 1.7±0.1 | 2.5±0.1 |
| Φ15 | 15.0 | 1.0±0.1 | 1.50 | 9.0 | 1.7±0.1 | 2.5±0.1 |
| Φ20 | 20.0 | 1.0±0.1 | 1.50 | 13.0 | 1.7±0.1 | 2.5±0.1 |
| Φ25 | 25.0 | 1.0±0.1 | 1.50 | 15.0 | 1.7±0.1 | 2.5±0.1 |
| Φ30 | 30.0 | 1.0±0.1 | 1.50 | 18.0 | 1.7±0.1 | 2.5±0.1 |
| Φ35 | 35.0 | 1.0±0.1 | 1.50 | 20.0 | 1.7±0.1 | 2.5±0.1 |
| Φ40 | 38.0 | 1.0±0.1 | 1.50 | 25.0 | 1.7±0.1 | 2.5±0.1 |
| Φ50 | 47.0 | 1.0±0.1 | 1.50 | 30.0 | 1.7±0.1 | 2.5±0.1 |
| Φ60 | 57.0 | 1.5±0.1 | 2.00 | 38.0 | 2.5±0.1 | 3.2±0.1 |
| Φ70 | 67.0 | 1.5±0.1 | 2.00 | 45.0 | 2.5±0.1 | 3.2±0.1 |
| Φ80 | 77.0 | 1.5±0.1 | 2.00 | 48.0 | 2.5±0.1 | 3.2±0.1 |
| Φ90 | 87.0 | 1.5±0.1 | 2.00 | 52.0 | 2.5±0.1 | 3.2±0.1 |
| Φ100 | 97.0 | 1.5±0.1 | 2.00 | 58.0 | 2.5±0.1 | 3.2±0.1 |
| Φ110 | 107.0 | 1.5±0.1 | 2.00 | 63.0 | 2.5±0.1 | 3.2±0.1 |
*The thickness could be customized for 2mm~5mm thicker upon request.
Color: Standard color is grey, rust red, other color available upon request.

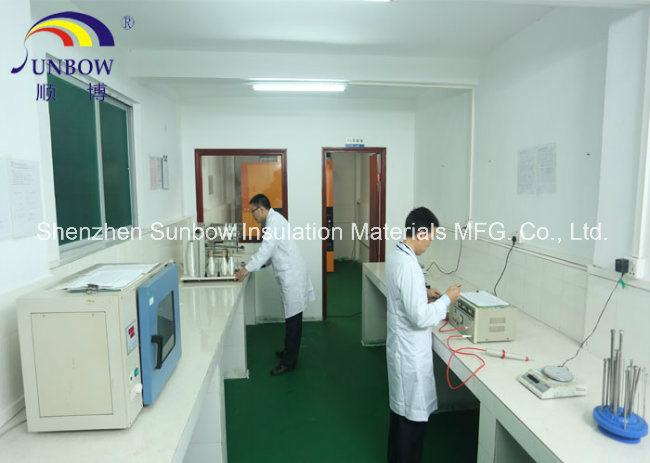

Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr. 2014 (Cert. No. E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
Our products are widely used in H&N Motor, home appliance, electric heating equipment, Lighting, electronic instruments, wiring harness, transformer, power adapter, communication equipment, high/low voltage power distribution complete equipment, petrochemical industry, coal-mining industry, electric system and space flight and aviation area etc.

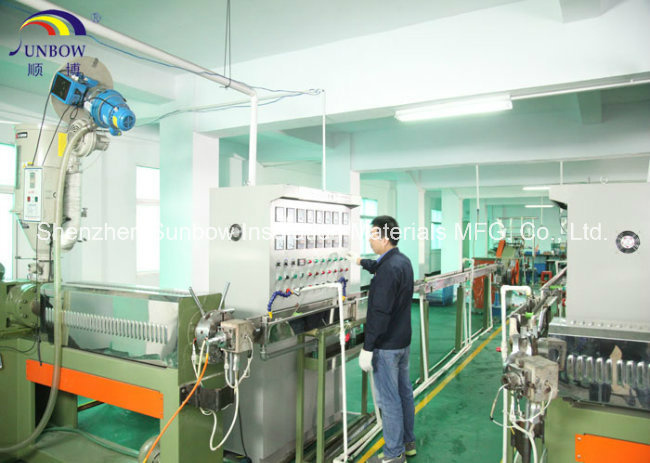

Due to business expansion, our factory moved to Gongming street, Guangming New District in Shenzhen. It occupies nearly 10, 000 square meters. We successfully passed ISO9001: 2008 and TS16949 international quality management system, now ISO14001 system is also pushing.
