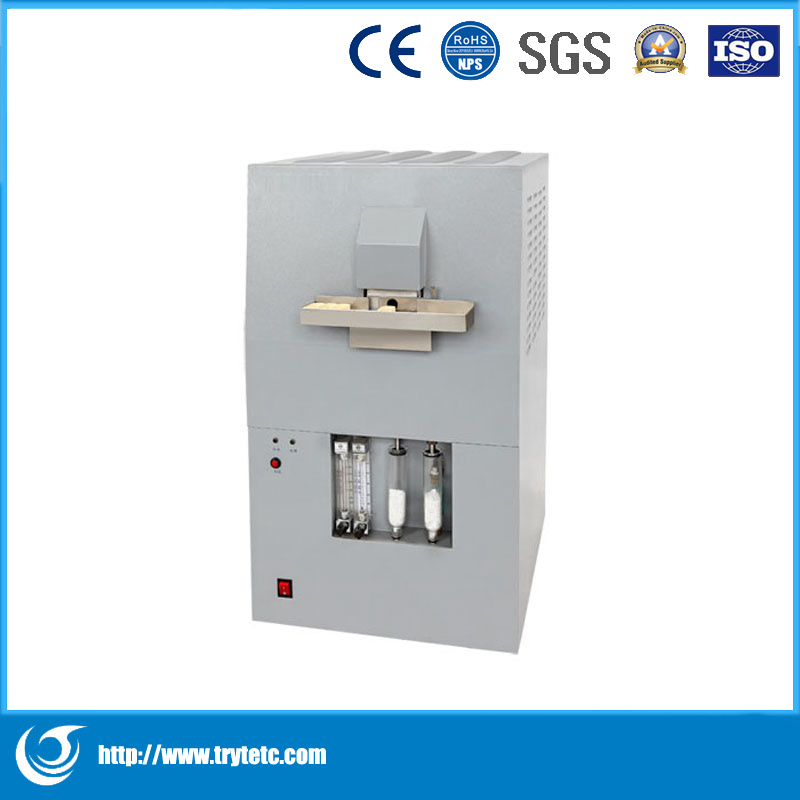

Integrated Sulfur Analyzer-Coal Ash Testing Machine-Coal Analyzer

Integrated Sulfur Analyzer-Coal Ash Testing Machine-Coal Analyzer

Technical parameters:

• Sample feeding: manual

• Testing range: 0.01%~10% (expandable according to requirements)

• Testing method: Infrared Spectrum Absorption Method

• Sample Weight: Coal and Coke with 300mg, oil with 100mg

• Testing Time: 180s for one sample

• Temperature: 1300ºC-1350ºC

• Sulfur resolution: 0.001%

• Sample Weight:Coal:300mg±10mg; oil: 100mg±10mg

• Power Supply: 220V, 50/60HZ

• Power: ≤ 1.5 KW

• Dimension: 540mm*450mm*760mm

• Weight: 65KG


  Application Area:

  It is applicable in the industry such as electrical power, coal, commerce inspection, environment protection, metallurgy, papermaking, petrochemical, earth probe, and the research institution or quality inspecting organization to measure the sulfur content in the materials of coal, cinder, coke, catalyst, minerals, rock, and petrochemicals.



  Features:

  1. Software self-diagnose function

  2. Advanced IR module with low drift, thus to ensure high precision and reliability

  3. Advance heating element and combustion tube to ensure long life-span

  4. Optimized gas circuit design to make sure no air leakage

  5. With special sealing structure to prevent sulfur in air come into the furnace and affect the testing results

  6. With waste gas handling system, thus to avoid the air pollution inside the laboratory

  7. The testing results can be edited in software, while the statistic function of software can give average value, standard difference, relative difference and etc.

  8. Balance can be linked for auto weight measuring, and internet connection available for data sharing.

Packing:


Company Information:

      As a diversified manufacturer of high-tech products, it was founded in 1999, and devoted to the products, sales and technical service for various industries and fields like Energy analysis instrument, Oil, coal, steel, and geology; medical analysis and application instruments, biochemistry analyzer, elisa reader, blood analyzer,and urine; as well as laboratory application instruments,autoclave/sterilizer,freeze dryer, incubator,drying oven,balance,ICP,DRS,HPLC,gas chromatography,and spectrophotometer,meanwhile,TRYTE Technologies integrated and purchased some companies of PCB board, highway instruments at home and abroad. Our company has become the "one stop" instrument procurement service provider worthy of the name.
      TRYTE technologies (TRYTE) mainly sell products by selling direct to customer, but also through distributors, resellers and manufacturer representatives, telephone sales and e-commerce sales, customers cover all over 80% of the world's countries and regions.TRYTE have solutions with rules adaptability according to the specific requirements of the design, from the instrument to some laboratories or departments.Whichever kind of solution you choose, you can fully trust it, because it is proved from 100, 00 successful results, leading development process, and decades of actual certification experience.



Why choose us?

1. We supply high quality products with reasonable price.
2. We are the professional manufacturer;
3. Advanced production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
