Integrated Temperature Transmitter with Thermocouple Rtd 4-20mA Output
| Price: |
US $ 0.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Introduction * SBWR Serial thermocouple temperature transmitter and SBWZ serial RTD temperature transmitter is a spot mounted temperature transmission unit in DDZ-S serial instruments and meters.
* It adopts the two-wire transmission method (the power input and the signal output are two communal conductors).
* There is a linear 4~20mA current signal between the output and the measured temperatures.

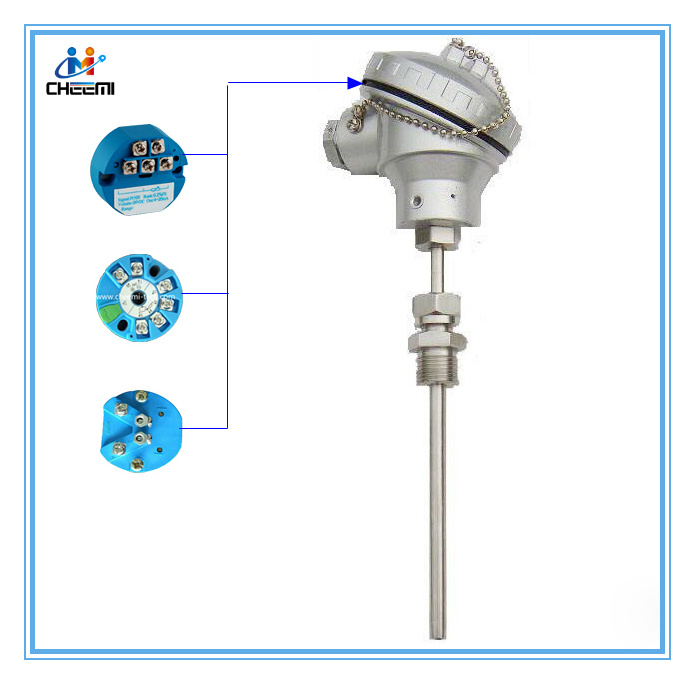

* The transmitter may be installed inside the terminal box of the thermocouple and the thermal resistance to form an integral structure, and also independently mounted in the instrument panel as a change-over unit.
* Application: To be a new generation thermometric meter, it is widely applied in the industrial and scientific research fields such as petroleum, chemicals, textile, metallurgy, electro-machinery, electric force, aviation, food, processing, pharmaceutical engineering, etc. for the purpose of automated temperature testing, transmitting and controllingFeature* Can be directly installed in the sensor terminal box
* Accurate signal can be transmitted far way(Max 1000M)
* High accuracy with long-term stability, maintenance-freeSpecification
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
CHEEMI TECHNOLOGY CO.,LIMITED.
Certification: ISO9001, CE, ROSH.
( Your reliable sensor-solution partner for Hall Current & Voltage Transducers, Proximity Switches/sensors, RTD Temperature Sensors, Current Transformers, Pressure Transmitter, Liquid Level Transmitter. )
Address: 22 Building, XianlongWan, Xianyin South Road, Qixia District, Nanjing City, Jiangsu Province, China.
Post code: 210000
Tel: +0086-025-85996365
Web: www.cheemi-tech.comPackage * All our sensors will be well packed with bubble & carton.
* You can choose your own label(Screen Print or Laser Engraving).
* Can be netural packing or OEM.Shipping * Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country. Warranty * We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.Our Commitment * Better Price than other suppliers for you because of Factory Direct Sale;
* Better Quality than before caused by our 10+ years experience about sensors;
* Fast Delivery made by our Enthusiasm;
* Timing Reply in 24 hours all about our TEAM's Passion & Patience.

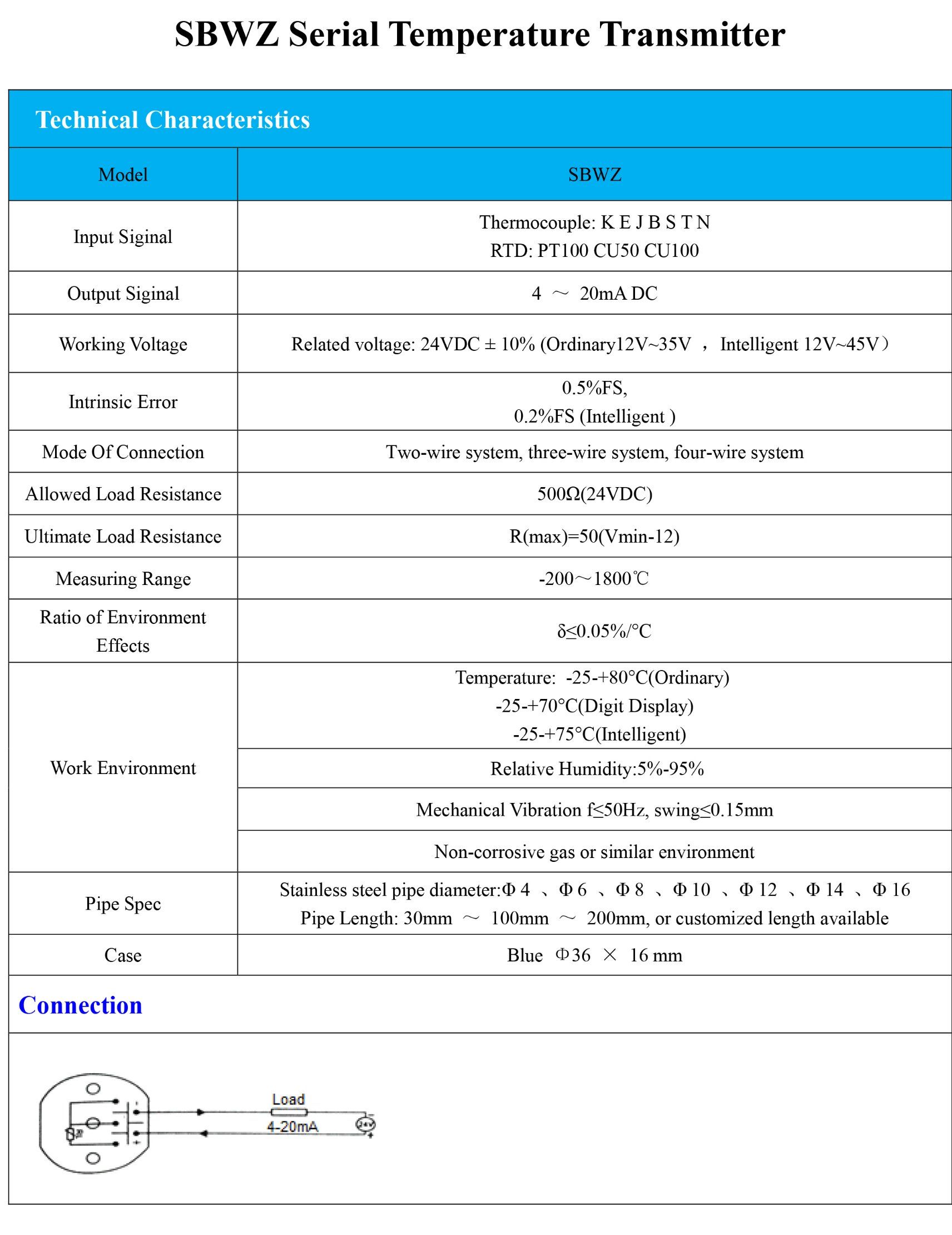

| Prod Model: |
SBWZ |
| Measuring Range: |
-200~+1800c |
| Input Siginal: |
Thermocouple: K E J B S T N Rtd: PT100 Cu50 Cu100 |
| Output Siginal: |
4-20mA DC |
| Related Voltage: |
24VDC |
| Connection: |
2 Wire, 3 Wire, 4 Wire |
| Case: |
Blue D36 * 16 mm |
| Certification: |
Ce RoHS ISO |
