Interchangeable USB charger adapter US EU UK AU and KC| Model | Output Voltage | Output Current | Watt |
| MKS-0501000 | 5.00V | 1.00A | 5.00W |
| MKS-0501200 | 5.00V | 1.20A | 6.00W |
| MKS-0502000 | 5.00V | 2.00A | 10.0W |
| MKS-0502400 | 5.00V | 2.40A | 12.0W |
| | | | |
Input:| Input Voltage: | 100-240VAC |
| Line Frequency: | 50/60Hz |
| Current: | 0.30A Max. |
| Protection: | Internal Primary Current Fuse, Inrush Limiting |
| Configuration: | Interchangeable AC plug |
Output:| Load Regulation: | +/- 5% (Typical) |
| Ripple | 1~2% Vp-p Max. for Output
Voltage@Full Load |
| Transient Response: | 0.5mS for 50% Load Change Typical |
| Hold-up Time: | 10mS @ Full Load |
| Protection: | Shor Circuit Protection / Over Voltage
Protection / Over Current Protection |
| DC Plug: | 2 USB Port |
| | |

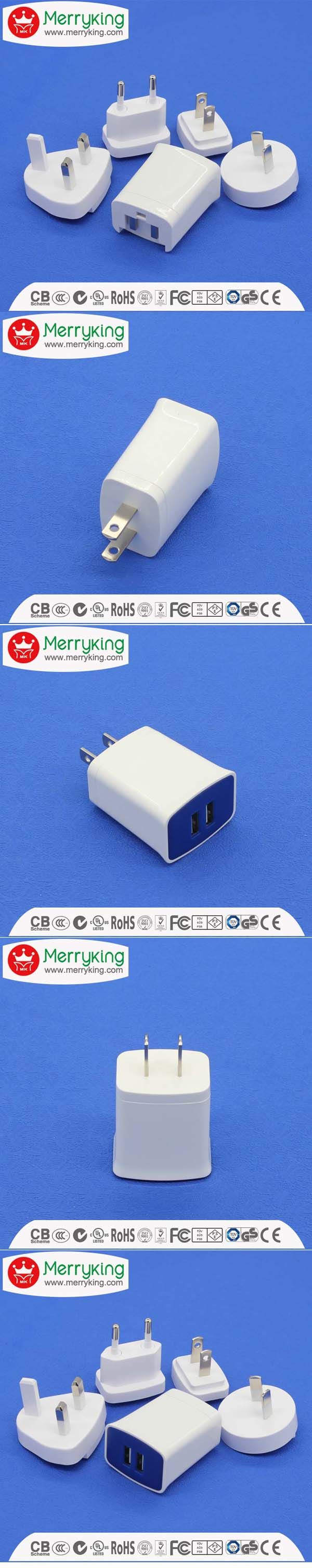

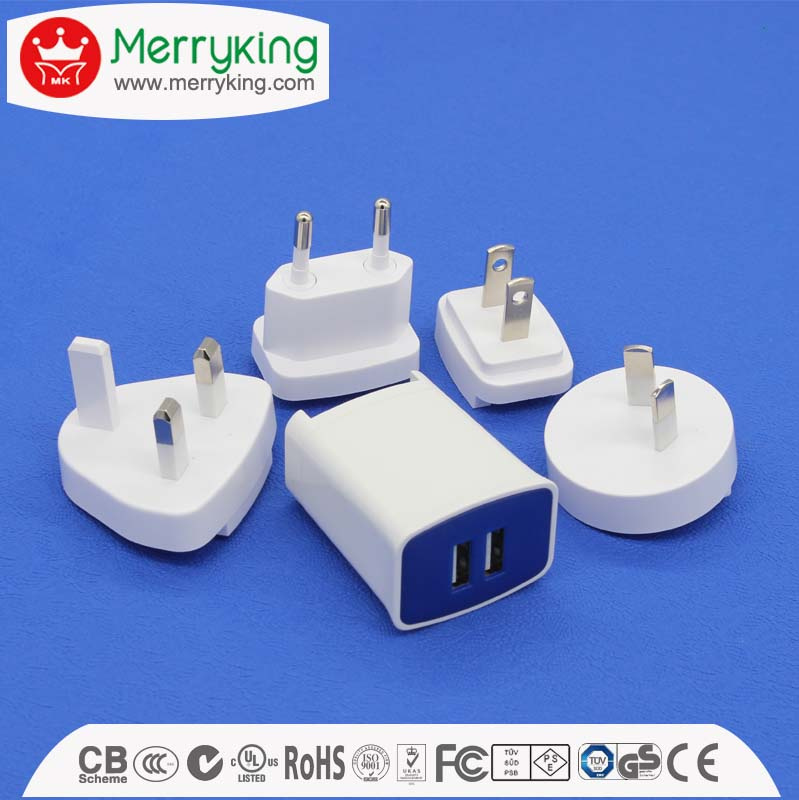

1. Interchangeable AC plug USB Charger
1. US AC plug : Safety Approvals.| UL/CUL/FCC/PSE/LPS/CB |
| UL609520-1, CAN*CSA-C22.2 No.60950-1, IEC60950-1 |
| J60950-1 and J55022 |
US AC plug : Electrical.| Topology | Switching Flyback |
| Dielectric Withstand | 3200VAC Primary-Secondary |
| Leakage Current | 0.25mA |
| EMI Conduction & Radiation | Compliance to FCC part 15B |
| EMC Immunity | Compliance to FCC part 15B |
| MTBF | 100,000 Calculated Hours at 25ºC, by Telcordia SR-332 |
| Efficiency | CEC VI , DoE V I, NRCan certified |
2. EU/UK AC plug: Safety Approvals.| CE / GS /CB |
| EN60950-1, EN61558-1,EN61558-2-16 |
| IEC60950-1, IEC61558-1, IEC61558-2-16 |
EU/UK AC plug: Electrical.| Topology | Switching Flyback |
| Dielectric Withstand | 3200VAC Primary-Secondary |
| Leakage Current | 0.25mA |
| EMI Conduction & Radiation | EN55022, EN55024,EN55014 |
| EMC Immunity | EN61000-3-2 & en61000-3-3 |
| MTBF | 100,000 Calculated Hours at 25ºC, by Telcordia SR-332 |
| Efficiency | ERP VI / CoC VI certified |
Any other certificate avalibale.

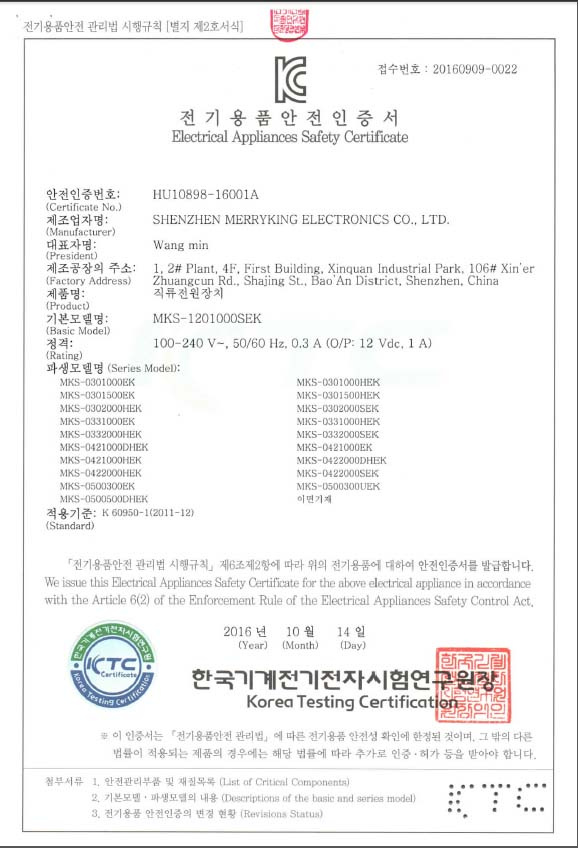

Send me email to get the Text report & Certifications when you needed. also including the TUV-LVD & TUV Mark.KC series with KC & KCC certifcaition (KC NO.: HU10898-16001A)
If you are Korea Market, Please send me mail get the KC & KCC certificaitons )
3. EU/UK AC plug: Safety Approvals.| RMC / SAA / C-Tick / CB |
| AS / NZS60950.1& AS/NZS3112 |
| IEC60950-1 |
EU/UK AC plug : Electrical.| Topology | Switching Flyback |
| Dielectric Withstand | 3200VAC Primary-Secondary |
| Leakage Current | 0.25mA |
| EMI Conduction & Radiation | Compliance to AS/NZS CISPR22 |
| EMC Immunity | Compliance to AS/NZS CISPR22 |
| MTBF | 100,000 Calculated Hours at 25ºC, by Telcordia SR-332 |
| Efficiency | GEMS certified |
4. Environmental| Operating Temperature | 0 to 40 ºC |
| Storage Temperature | -20 - 80ºC |
| Relative Humidity | Operating: 20 to 80% RH Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
5. Mechanical & Package :| Case size.: | L50xW39xH29mm - (the body size) |
| White Box.: | L100xW41xH90mm |
| Adapter Wight.: | 105g |
| QTY.: | 72pcs/CTN |
| N.W.: | 9.0KGS |
| G.W.: | 10.5KGS |
| Carton Size.: | 39.5x37x28cm |
6. Inspection Standard: AQL Level II, Major 2.5/ Minor 4.0/ Critical 07. The Production Process & Quality Assurance System & How to deal with problem product .... Welcome to send us email to get them. 8. Aging Testing Merryking's ac dc adaptor have to aging test more than 4 Hours .
9. About Merryking
MERRYKING as a famous manufacturer of power adapter and ac/dc adaptor has exported
power supply products over 14years since we established.
We are focusing on power supplydesigning and manufacturing in Shenzhen China. We established scientific, intact and efficient quality management system, which extends from product designing, raw material control, on-spot production management to after-sale services with constant, stable and reliable quality assurance.
ISO9001:2008 system is fully implemented in our all managements. Our products have passed most of safety approvals in the world including UL, cUL, FCC, PSE, GS, CE, SAA, CCC, C-tick, CB, etc.
10. Our Tema:We are a group vibrant people ,have dream,advocate justic ,freedom and equality ,love to make freind with people cherishing kindness in hearts ,and make great effort to become such kind of people .
11. Shippment: 1>.: By air
Your order will be delivered by DHL, FEDEX, UPS, TNT, or other International Express. It's up to you to choose your suitable express company. It normally takes 3-7 days to arrive at your destination. Surcharge will be charged if your destination is remote area.
2>.: By sea
Shipments will be operated under FOB conditions.
7. Our Services:
1>.: We will send samples to your confirmation.
2>.: We welcome customers to check mass ac dc adaptor before delivery
3>.: You can ask refund ac dc adaptor in 30 days after you get goods,and all of the cost we will afford if the reason is ours,What's more we will give you the new products as soon as possible
12. Merryking Service:
1. Payment term: T/T, L/C, Western Union, PayPal, etc.
2. Lead time: sample in stock; bulk production 10~15 days after deposit.
3. 24/7 service.
4. OEM/ODM are both available.
5. Silk print or heat transfer print LOGO on adapters and customize color box and outer package.
13. Q&A:
Q: What is your MOQ?
A: Generally our MOQ for each model is 500PCS, we can discuss in details if you have special requirements, like big quantity for the whole order but small quantity for each model.
Q: How about your warranty of the ac/dc adapter ?
A : Generally we offer 3-year warranty for our products. Quality is the most important for long-term business partnership, and it is also our company aim to offer high quality and guaranteed products to help our clients expand their target markets.
Q: How can I finish my payment?
A: T/T, L/C, Western Union are all acceptable, PayPal is also OK.
Q: How can I get detailed specifications about this power supply? Do you have catalogue and price list?
A: We have all the specifications, catalogues and price lists for each model. Welcome to contact us for detailed information via the contact ways mentioned below anytime!
Q: What is shipping method?
A: Samples will be sent via DHL, UPS, FedEX, TNT, EMS, etc. while bulk goods will be sent by sea or air. If you have familiar forwarders in China, we can send our goods there to save your cost.
Q: How about sample? For free?
A: YES! Generally we offer 1-3PCS sample(s) for your test FOR FREE, but you need to bear the freight cost. If your sample quantity is more than 3PCS, we will charge some sample fee, and we might return it when you place your first formal order as we discuss ahead.
Contact Detial :
Nikki Xinag
Sales Manager
Office: (+86-755) 2300-5669
Cell phone : +86 - 159 14085671
www.merryking.com
MERRYKING is a Hi-Tech Enterprise involving designing, production and marketing of various kinds of electronic products such as Power Adapters, Switching Power Supplies, USB Charger, Linear Adapters and Chargers, etc. Also our products are widely applied in Digital products, Medical, Telecom, Home and IT products. MERRYKING is the registered trademark.
Our products have passed most of safety approvals in the world including UL, cUL, PSE, GS, CE, EK, SAA, CCC, C-tick, BS, CB, BSMI, etc. Also our products are widely introduced to domestic market and exported to USA, Canada, Europe, Japan, Australia, Argentina, Korea, Mexico, Singapore, Russia, etc, and established good relationship and long term cooperation with several overseas well-known brands.
Also we pay much attention to managements, we have obtained certificates issued by CCE Italy of ISO9001: 2008 quality management system and ISO14001: 2004 Environmental management system. Merryking is highly appreciated in the field for its high grade, efficient and unique operation principle.

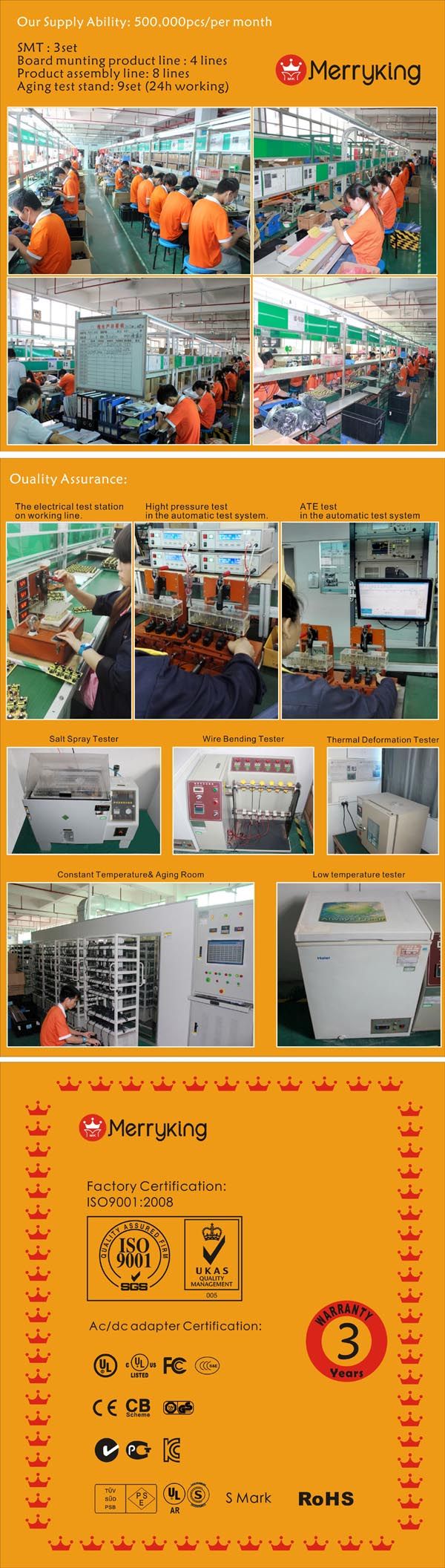

Our factory locates in Shajing, bao'an, Shenzhen, is close to The Shenzhen International Airport with feasible transportation and beautiful environment. It is equipped with advanced Lead-free Dual Wave Soldering Machine, Reflow Soldering Machine, electronic load constant temperature aging room and many kinds of sophisticated testing equipment. With scale production ability, our monthly capacity reaches over half million pieces.
MERRYKING emphasizes its staffing as our most valuable treasure, and owns a high qualified team with rich experience and strong technology. We aim at being the first class professional electronic and electric supporting factory with excellent management and work team. In accordance with our company spirit of "Quality First, Customers Foremost, Keep Improving", we stick to our company aim of "Honesty, pragmatism, innovation, initiative", and provide excellent services to all of our customers.
