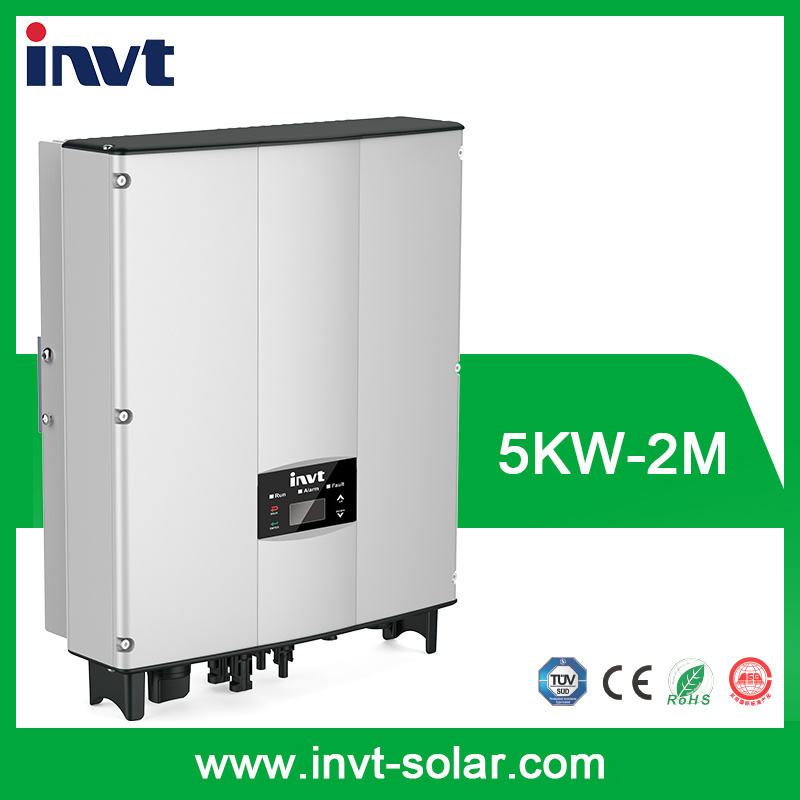

Invt Mg Series 5kw/5000W-2m Single Phase Grid- Tied Solar Inverter (dual)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
5000W/5KW |
| Display: |
LCD/LED |
Product Description
DescriptionMG series single phase inverter is developed by INVT for residential users. MG series inverters have the advantages of compact size, light weight, easy installation and maintenance, and are above all cost efficient.
Specification | | MG3KTL
-2M | MG4KTL
-2M | MG4K6TL
-2M | MG5KTL
-2M | MG6KTL
-2M |
| INPUT (DC) |
| Max. DC input power (W) | 3600 | 4800 | 5520 | 6000 | 6300 |
| Max. DC input voltage (V) | 600 |
| Starting voltage (V) / | 120/100 |
| Min. opration voltage (V) |
| MPPT Range(V) | 120-550 |
| Number of MPPT / | 2/1 |
| String per MPPT |
| Max. DC current (A) Per MPPT | 9x2 | 12x2 | 13x2 | 15x2 | 16x2 |
| x Number of MPPT |
| DC switch | Optional |
| OUTPUT (AC) |
| Rated output power (W) | 3000 | 4000 | 4600 | 5000 | 6000 |
| Max. AC output current(A) | 16 | 20 | 22 | 24 | 26 |
| Grid voltage range | 230/180~277V |
| Grid frequency range | 50Hz(44~55Hz) / 60Hz(54~65Hz) |
| Power factor | ≥0.99 (at rated power) |
| THDi | < 3% (at rated power) |
| AC output | Single-phase(L,N,PE) |
| SYSTEM |
| Cooling method | Natural cooling method |
| Max. efficiency | 97.70% | 97.70% | 97.70% | 97.80% | 97.80% |
| Euro-efficiency | 96.70% | 96.70% | 96.70% | 96.80% | 96.80% |
| MPPT efficiency | 99.90% |
| Protection rating | IP65 |
| Self-consumption(at night) (W) | <1 |
| Topology | Transformerless |
| Operating temperature range | -25ºC~+60ºC(derate after 45ºC) |
| Relative humidity | 0~95%,no condensation |
| Protection | PV array insulation protection, PV array leakage current protection, Ground fault monitoring, |
| Grid monitoring, Island protection, DC monitoring, Short current protection etc. |
| DISPLAY AND COMMUNICATION |
| Display | LED (standard) / LCD(optional) |
| LCD language | English, Chinese, German, Dutch |
| Communication interface | RS485 (standard) ;WiFi,Ethernet(optional) |
| MECHANICAL PARAMETERS |

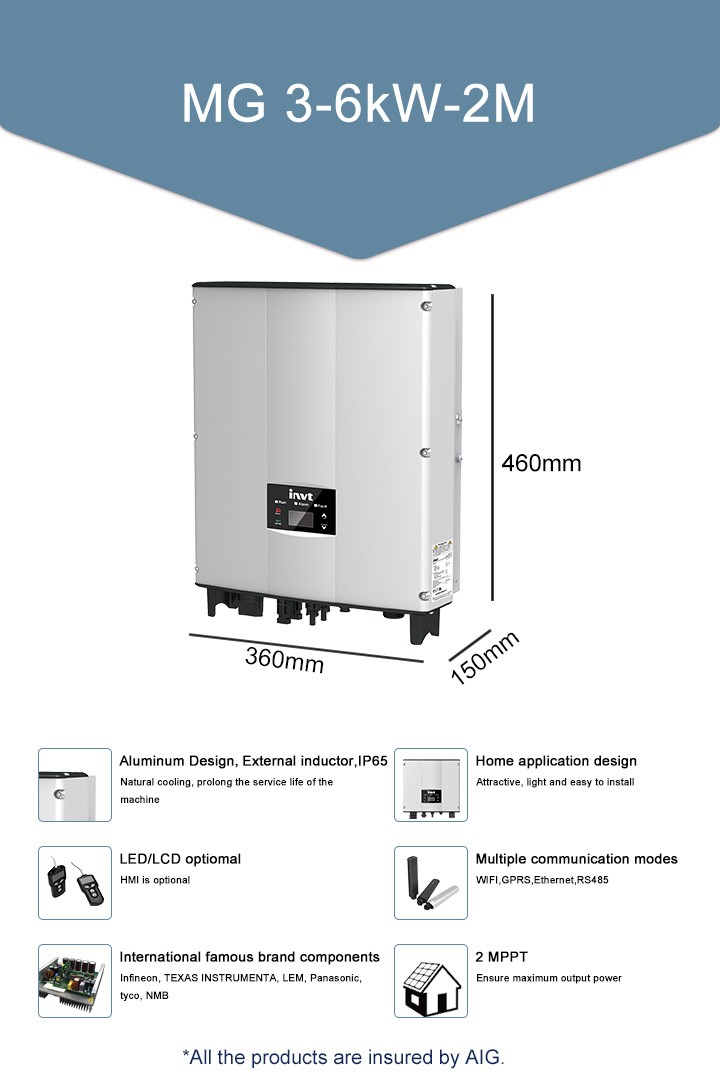

| Dimension (H x W x D mm) | 462x360x150 |
| Weight (kg) | ≤15 |
| Installation | Wall mounting |
| OTHERS |
| DC terminal | MC4 |
| Grid standard | DIN VDE 0126-1-1:2013,VDE-AR-N 4105:2011,DIN VDE V 0124-100:2012, |
| G83-2 :2012,G59/3-2:2015,IEC 61727(IEC62116),AS/NZS 4777.2:2015, |
| NB/T32004-2013,IEC 60068-2-1:2007,IEC 60068-2-2:2007, |
| IEC 60068-2-14:2009,IEC 60068-2-30:2005,IEC 61683:1999 |
| Safe certificate / | IEC 62109-1 :2010,,IEC 62109-2 :2011,EN 61000-6-2: 2005, |
| EMC category | EN 61000-6-3:2007/A1:2011 |
| Factory warranty (years) | 5 |
INVT, established in 2002, is committed to be the globally leading and respected provider for products and services of industrial automation and electric power. In 2010, it listed as an A-share company on the Shenzhen Stock Exchange (stock code: 002334).
INVT is a national-level high-tech company with nine subsidiaries, whose business involves AC drive, industrial control, new energy, rail traction, servo and motion control, energy management, building intelligence system, etc.
PV business is the most important part of INVT electric power products and service, which is committed to provide the most stable solar inverters to the world.
Based on the understanding of development and the requirement of solar grid-tied power generation system and following the stable, high efficient and maintenance-free product design concept, accumulated 14 years of R&D and application experience in the field of core inverter and control technology, INVT is extending its PV business and has launched the iMars series of grid-tied solar inverters successfully.
IMars series grid-tied solar inverters have a better performance on the aspect of product stability, efficient power transformation, low harmonics, safe power grid access and so on. They can be widely used in BIPV(house roof, office building roof and factory roof), BAPV(integrated residential buildings), commercial rooftop plants and on ground solar power plants, to provide customers with stable, safe and efficient renewable energy.
Up to now, INVT solar inverters have been widely used by over 200, 000 happy customers in more than 60 countries.
