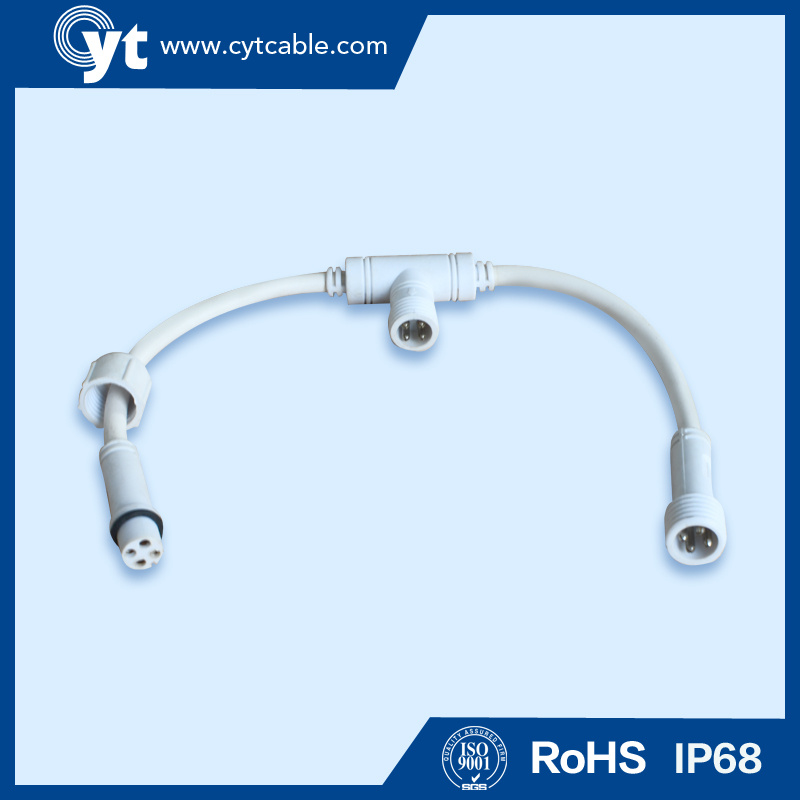

IP 68 Waterproof Socket Cable for Outdoor LED Lighting

IP 68 Waterproof Socket Cable for Outdoor LED Lighting
Price: Negotiable/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: CYT0221
Conductor Type: Stranded
Application: LED Lighting
Conductor Material: Copper
Insulation Material: PVC
Certification: IP67
Type: Waterproof
Range Of Application: LED Lighting
Brand: Cyt

Product Description

Ip 68 waterproof socket cable for outdoor LED lighting
* Model number : CYT0221
* PVC material options
* Wire diameter : 3.5~7.2mm
* Each outputs could be attached with a female/male connector if requried
* We could help to attach regular cables in any length and process terminals if required
* Customer's drawings and designs are welcome,  as we have our own professional R&D team to provide you various solutions.
Ip 68 waterproof socket cable for outdoor LED lighting
 1          Model No.  CYT0221
 2          Material       Connector Body  White,Black
 3  Contact  Brass
 4  Sealing  Silica Gel
 5          Property               Current Rating  2~6 A
 6  Voltage Rating  10~250V
 7  Contact Resistance  <10mΩ
 8  Insulation Resistance  10MΩ
 9  Breakdown Voltage  1.5KV/1minute Moist
 10  Temperature Rating  -30°C~+105°C
 11  Durability(Plug/Unplug)  3000 times
 12  Waterproof Rating  IP67
 13  Cable Max. Diameter  7.2mm
 14  Pins Range  2~6

Package: PE bag and cartons box  or we can do it as customer's request

 Our Services

All your inquires will be replied in details within 24 hours.
Welcome any new ideas for the very product you want.
If any questions on our products, pls feel free to let us to know anytime,  you'll get the soonest response!
Shipment as PIc.


We are a professional producer on waterproof cable for LED lighting goods, all kinds of lamps's cable, AC power wire, DC wire, tube wire, communication's cable, wire harness for automobile, home appliance, medical and so on, also do OEM orders for different company.

We have 13 years experiences on this industry.

And our sales volume is about 300`500 million USD in the past 10 years.

We have Injection molding machine, Automatic terminating machine, Pneumatic stripper, Automatic wire cutting machine, Testing machine more than 40 units. Currently there are over 130 employees, and a fabrication area of more than 3, 000 square meters. Technical force and produce ability is abundant.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

We have exported large quantity to North America, Southeast Asia and European countries, Like Germany, Italy, USA, Canada and so on.

We are looking forward to building the business cooperation with all of you. Hope we can develope into a big scale company in the future.
